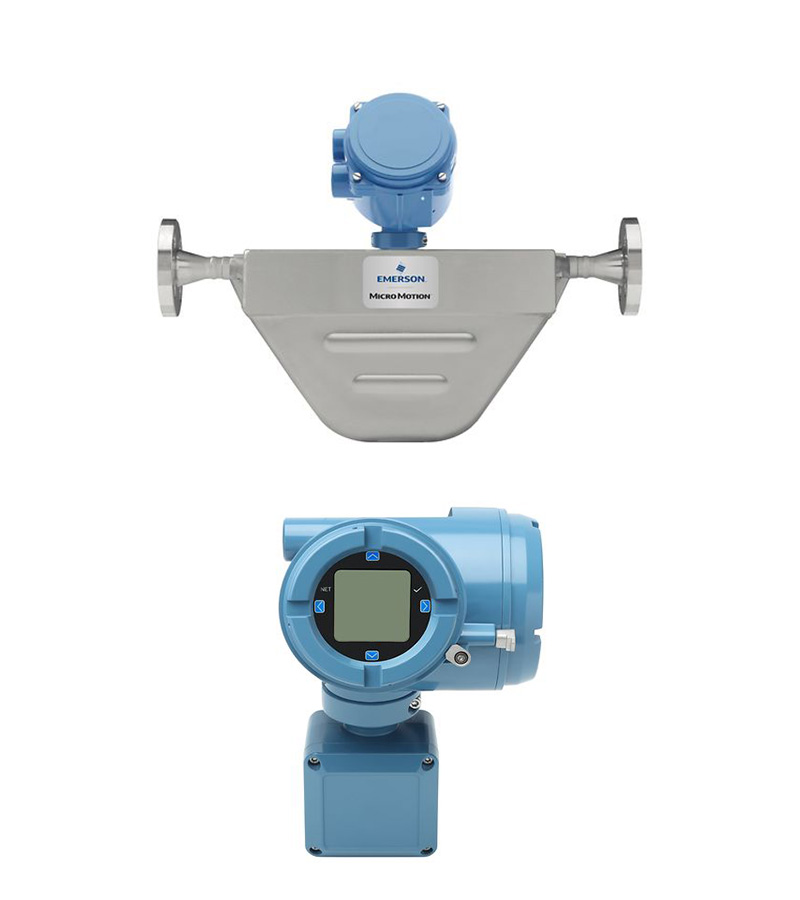

| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Max Working Pressure | 5,000 psig (344 barg) |
| Approvals and Certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Micro Motion 4700 Transmitter | Configurable Inputs and Outputs |
| Operating Temperature | -61 °F (-52.0 °C) to 149 °F (65.0 °C) |
| Storage Temperature | -61 °F (-52.0 °C) to 185 °F (85.0 °C) |
| Vibration Limits | Meets IEC 60068-2-6, 5 to 2000 Hz up to 1.0 g |
| Housing | NEMA 4X (IP66/67/69) polyurethane painted cast aluminum or 316 stainless steel |
| Humidity Range | 5 to 95% relative humidity, non-condensing |
| Linearity | 0.015% Span, Span = 16mA |
| Input Signal | Up to 3 pairs of wiring terminals for input/output |
| Sensor Type | 4-wire and 9-wire remote mount options |
| Power Supply | Universal (self-switching) 18VDC to 100VDC, 85VAC to 250VAC |
| Housing Weight | Integral mount: 6.48 lb (2.939 kg), Remote mount: 8.21 lb (3.724 kg) |
| Mounting Options | Available integrally or remotely mounted to various Coriolis sensors |
| Display/Interface | Standard LCD panel, Bluetooth® wireless technology option available |
