As a B2B supplier, our Micro Motion F100B Coriolis Meter offers exceptional quality and reliability, suitable for a wide range of industrial applications. The flow meter is made from high-performance materials, ensuring precise measurement of mass and volume even in harsh environments. Its compact design allows for easy installation and maintenance, while comprehensive diagnostic features enable real-time monitoring of flow conditions. We provide multiple international certifications to meet strict safety and performance standards. Choosing our Micro Motion F100B not only enhances measurement efficiency but also offers premium after-sales service and technical support, helping clients optimize processes and reduce costs.
| Parameter | Value |
|---|---|
| Mass flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.050% of rate |
| Volume flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.050% of rate |
| Mass flow accuracy (Gas) | ±0.5% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 2,160 psig (149 barg) |
| Meter approvals, calibrations, and certifications | • UL • CSA • IECEx • NEPSI • ATEX • Ingress Protection • EMC effects |

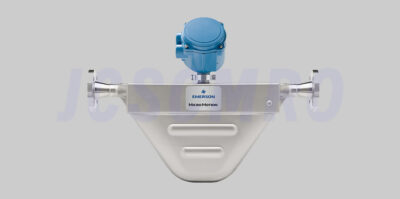

Micro Motion F100B Coriolis Meter
