H400F Sensor and 4200 Transmitter

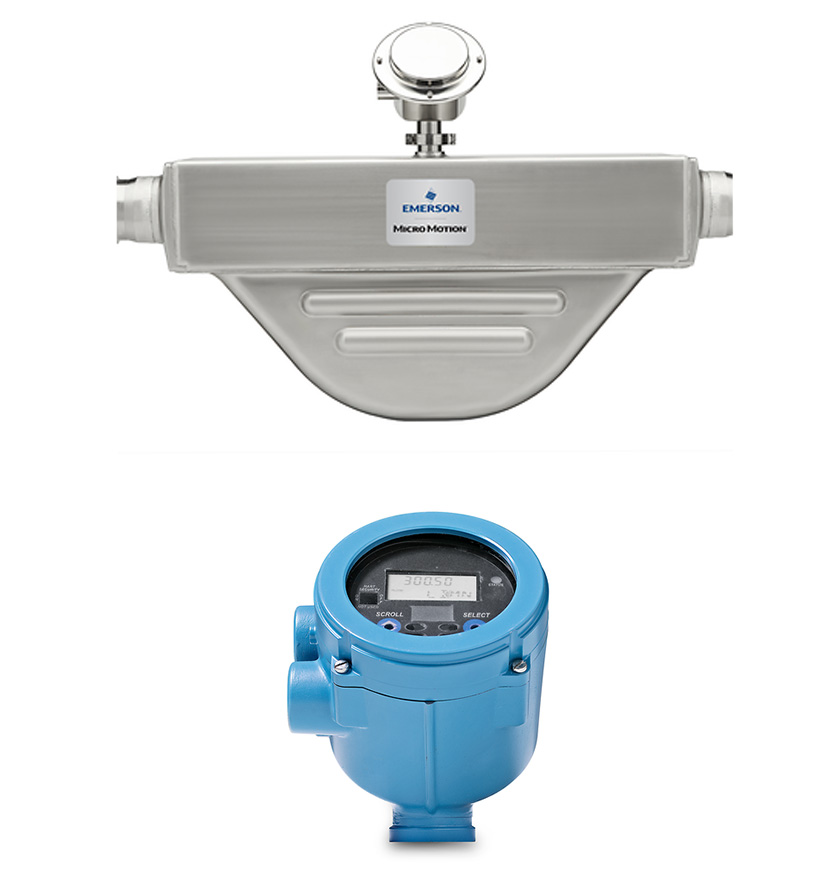

Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400F Sensor and 4200 Transmitter $2,526.00
Back to products
Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400F Sensor and 2500 Transmitter $2,526.00

Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400F Sensor and 2400S Transmitter

$2,526.00

As a supplier of the Micro Motion H400F Hygienic Coriolis Meter and 2400S Compact, Integral-Mount Transmitter, we offer reliable and highly accurate measurement solutions. The H400F meter, made of 316L stainless steel, provides ±0.05% mass flow accuracy for liquids and ±0.0005 g/cm³ density accuracy, making it ideal for hygienic applications. It is certified by CSA, IECEx, and ATEX, ensuring excellent performance in demanding environments. The 2400S transmitter features multiple output options and display capabilities, suitable for continuous process control and two-phase flow applications. We ensure ample stock, fast delivery, and professional technical support to help maintain efficiency and reliability in your operations.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   services@jcscmro.com
Quote Now
Whatsapp
分类： 标签： , ,
描述
Specification Details
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Sensor Maximum Working Pressure 1,450 psig (100 barg)
Meter Approvals, Calibrations, and Certifications • CSA
• IECEx
• ATEX
Micro Motion 2400S Compact, Integral-Mount Transmitter
Output Variables Mass & volume flow
Net product content / flow
Temperature
Density
Concentration
Local Display Standard user interface with 2-line LCD panel
Two clips for HART/Bell 202 connections
Two membrane pushbuttons for local operation
Glass or plastic lens options
Power Self-switching AC/DC input, automatically recognizes supply voltage
85–265 VAC, 50/60 Hz, 4 watts typical, 7 watts maximum
18–100 VDC, 4 watts typical, 7 watts maximum
Input/Output Signals (Analog Output Option) Channel A: One active 4–20 mA output (Not intrinsically safe)
Channel B: Configurable as one of the following:
• One active or passive frequency output
• One active or passive discrete output
• One active or passive discrete input
Input/Output Signals (PROFIBUS-DP Option) Digital 2-way PROFIBUS-DP signal
Input/Output Signals (DeviceNet Option) Digital 2-way DeviceNet signal (Now Obsolete)
HART Bell 202 signal superimposed on the primary milliamp output
Mounting Options Field mount, integral with sensor
Application Types Continuous process control
Two-phase flow/entrained gas
Meter verification
Hazardous Approvals C1D2
Zone 2
Features
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Process Control Minimize variability with superior sensitivity in a compact design
Product Consistency Ensure product consistency and quality with superior density measurement
Product Change-over Enable fast product change-over with self-draining design and superior temperature stability
Material Options Highly polished 316L stainless steel with surface finish up to 15 Ra
Smart Meter Verification Real-time and in-process measurement integrity assurance
Two-Phase Flow Capabilities Superior for batching, loading, and entrained air applications
Certifications • CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D)
• ATEX
• IECEx
• Ingress Protection 66/67
• NAMUR
Sanitary Use Suitable for SIP, CIP, and sanitary environments requiring 3-A compliance
Micro Motion 2400S Transmitter Compact, Integral-Mount Transmitter
Diagnostics Receive diagnostics for entrained gas and batching with MVD digital processing
Smart Meter Verification Real-time and in-process measurement integrity assurance
Two-Phase Flow Best capability for batching, loading, and entrained gas applications
Display Buttons Optical buttons eliminate need to remove transmitter cover
Hazardous Area Approval Class 1, Div. 2 (Zone 2) hazardous area approval for sensor and transmitter
