Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400F Sensor and 5700 Transmitter $2,526.00

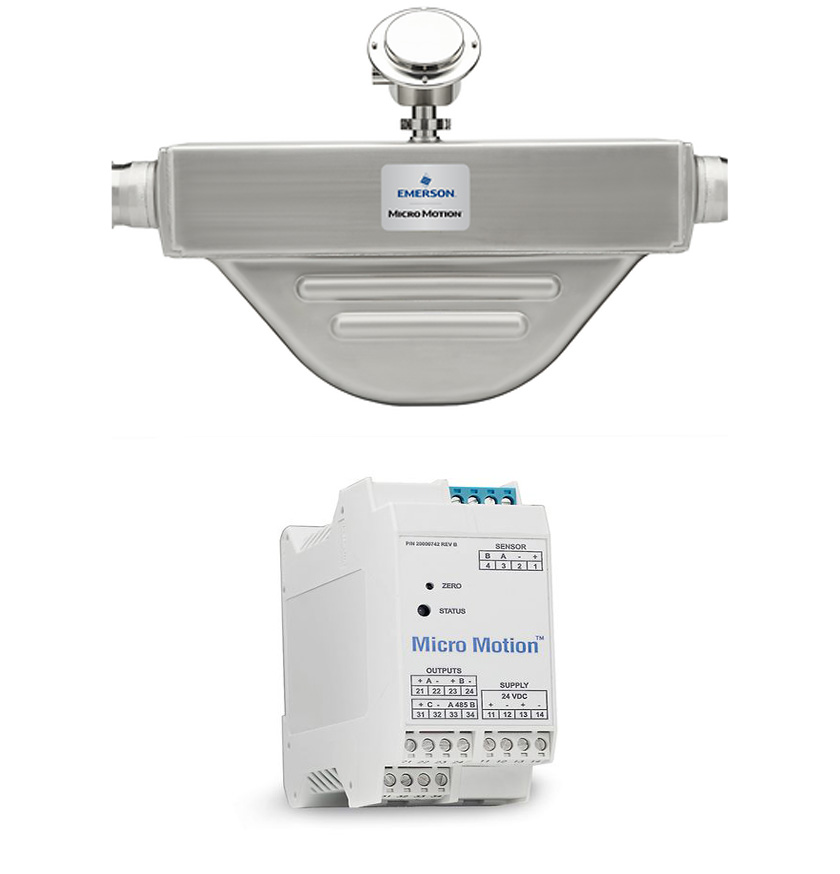

Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400F Sensor and 2500 Transmitter

$2,526.00

As a supplier, we proudly offer the Micro Motion H-Series Hygienic Coriolis Meter, consisting of the high-performance H400F Sensor and the compact 2500 Transmitter. This system ensures accurate measurement of mass and volume flow, with liquid accuracy up to ±0.05% and gas accuracy up to ±0.35%. Its durable 316L stainless steel design and 15 Ra surface finish make it ideal for hygienic applications, compliant with 3-A sanitary standards. Our robust supply chain guarantees stable inventory, competitive pricing, and timely delivery, along with comprehensive technical support to maximize your production efficiency.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description
Specification Details
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Maximum Working Pressure 1,450 psig (100 barg)
Meter Approvals, Calibrations, and Certifications • CSA
• IECEx
• ATEX
Micro Motion 2500 Compact Control Room Multivariable Flow And Density Transmitter None
Output Variables • Mass & volume flow
• Net product content / flow
• Temperature
• Density
• Concentration
Local Display None
Power Minimum 19.2 to 28.8 VDC
6.3 watts
Meets Installation (Overvoltage) Category II, Pollution Degree 2 requirements
Input/Output Signals • One active 4–20 mA output
• One active frequency output
HART Bell 202 signal superimposed on the primary milliamp output
Mounting Options • Mounted on 35 mm rail
• Rail must be grounded
Application Types • Continuous process control
• Two-phase flow/entrained gas
• Meter verification
Hazardous Approvals Suitable for non-hazardous environments only
Features
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Process Control Minimize variability with superior sensitivity in a compact design
Density Measurement Ensure product consistency and quality with superior density measurement
Product Change-over Enable fast product change-over with self-draining design and superior temperature stability
Material Options Highly polished 316L stainless steel with surface finish up to 15 Ra
Smart Meter Verification Real-time and in-process measurement integrity assurance
Two-phase Flow Capabilities Superior performance for batching, loading, and entrained air applications
Meter Approvals and Certifications • CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C, and D)
• ATEX
• IECEx
• Ingress Protection 66/67
• NAMUR
Sanitary Environment Use SIP, CIP, and sanitary environments with 3-A compliance
Micro Motion 2500 Compact Control Room Transmitter Multivariable Flow And Density Transmitter
Wiring Efficiency Cut wiring expenses with remote-mount transmitter using 35 mm DIN rail
Compact Design Fits in control rooms, requiring just 0.03ft³ of space
Simplified Configuration Four-wire connection to sensors for power and signal
Performance Diagnosis Diagnose performance under entrained gas and batching from empty applications with MVD digital processing
Smart Meter Verification Real-time and in-process measurement integrity assurance
