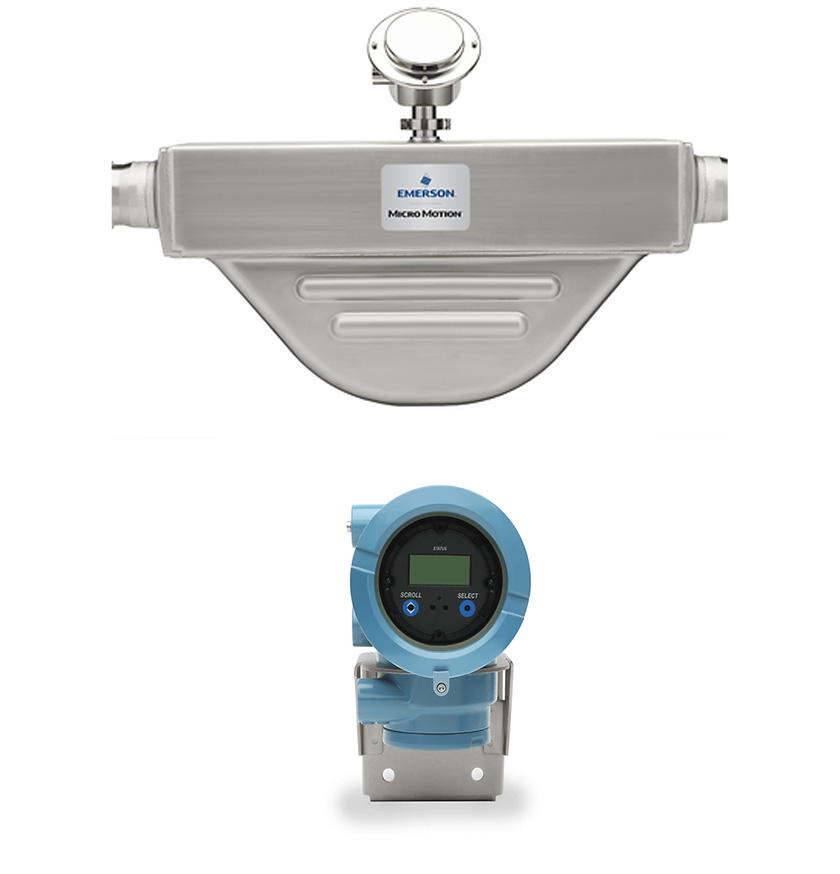

Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400F Sensor and 2700 Transmitter

$2,526.00

We offer the Micro Motion H-Series Hygienic Coriolis Meter, which combines the H400F sensor and the 2700 transmitter, designed specifically for hygienic applications. Made of 316L stainless steel with a 15 RA surface finish, it ensures high quality and consistency. The self-draining design of the H400F facilitates quick product changeovers, while the 2700 transmitter supports flexible installation and provides real-time performance diagnostics to ensure measurement integrity. This instrument is ideal for complex process environments, helping customers achieve efficient production and compliance requirements. Choose us for exceptional quality and professional support.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   services@jcscmro.com
Quote Now
Whatsapp
分类： 标签： ,
描述
Specification Details
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Maximum Working Pressure 1,450 psig (100 barg)
Meter Approvals, Calibrations, and Certifications • CSA
• IECEx
• ATEX
Micro Motion 2700 Field And Integral-Mount Multivariable Flow And Density Transmitter
Output Variables Mass & volume flow
Net product content / flow
Temperature
Density
Concentration
Local Display Standard user interface with 2-line LCD panel
Two optical switches for local operation
Glass or plastic lens options
Power Self-switching AC/DC input, automatically recognizes supply voltage:
85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
18 to 100 VDC, 6 watts typical, 11 watts maximum
Input/Output Signals Not intrinsically safe:
• One active 4–20 mA output
• One active frequency output (configurable)
Configurable I/O option:
• One or two active 4-20 mA outputs
• One or two active/passive frequency outputs
• One discrete input
Intrinsically Safe • One passive 4-20 mA output
• One passive frequency output
Mounting Options Field-mount
Integrally mounted to a Micro Motion F-Series, R-Series, or H-Series sensor
Remotely mounted to any 4-wire or 9-wire Micro Motion Coriolis sensor
Application Types • Continuous process control
• Custody transfer
• Two-phase flow/entrained gas
• Meter verification
Hazardous Approvals • Class I, Div. 1
• Class I, Div. 2
• Zone 1
• Zone 2
Features
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Minimize Variability Superior sensitivity in a compact design for process control
Product Consistency Ensure quality with superior density measurement
Fast Product Change-over Self-draining design and superior temperature stability
Material Options Highly polished 316L stainless steel with a surface finish up to 15 Ra
Measurement Integrity Real-time assurance with Smart Meter Verification
Two-phase Flow Capabilities Compact, hygienic SST transmitter housings for batching and loading
Meter Approvals Broad range of approvals including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D),
ATEX, IECEx, Ingress Protection 66/67, and NAMUR
Sanitary Environments Suitable for SIP, CIP where 3-A compliance is required
Micro Motion 2700 Field And Integral-Mount Multivariable Flow And Density Transmitter
Maximize Flexibility Integral or remote mounting options available
Performance Diagnostics MVD digital processing for performance under entrained gas and batching
Wiring Costs Lower wiring costs with easy installation
Measurement Integration Eliminate the need for additional instruments with concentration and net flow measurement
Custody Transfer Certification Approval and certification for SIL2 and SIL3
Measurement Integrity Real-time assurance with Smart Meter Verification
Wireless Diagnostics Access additional diagnostics without added wiring costs with WirelessHART™
Access Simplification Rugged Class I, Division 1 / Zone 1 housing with optional local operator interface
