H400F Sensor and 3500 Transmitter
H400S Sensor and 4700 Transmitter
Micro Motion™ H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 4700 Transmitter $2,526.00
Back to products
H400F Sensor and 3700 Transmitter
Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400F Sensor and 3700 Transmitter $2,526.00

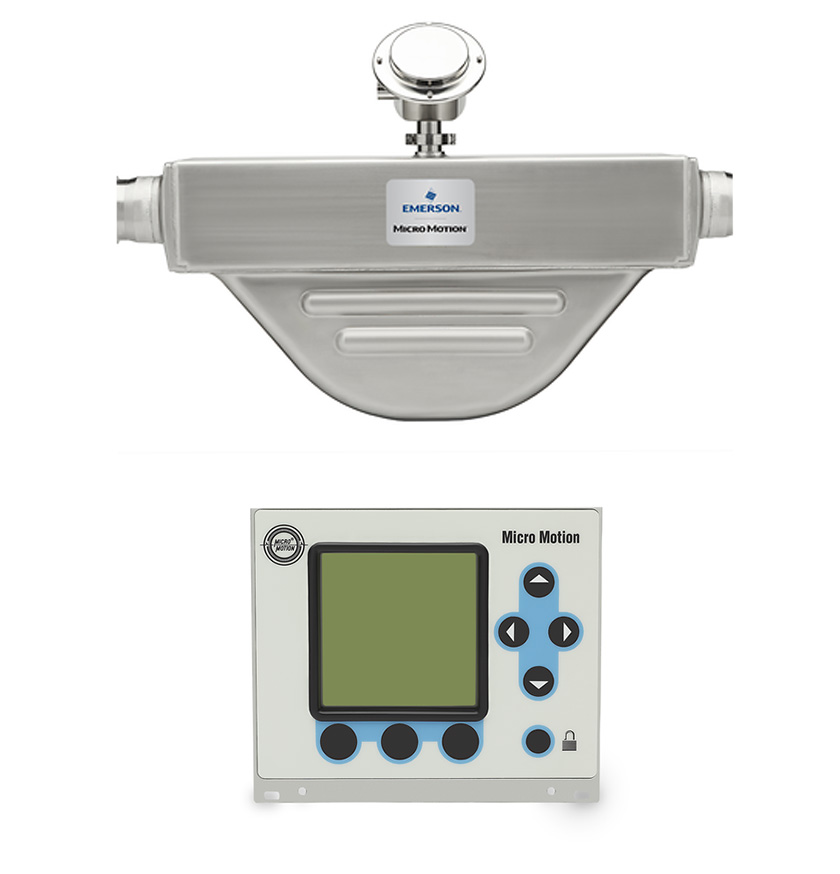

Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400F Sensor and 3500 Transmitter

$2,526.00

The Micro Motion H-Series Hygienic Coriolis Meter, which combines the H400F sensor and the 3500 transmitter, is an ideal choice for enhancing process control and product quality. The H400F sensor, made from 316L stainless steel, offers excellent flow and density measurement accuracy, suitable for hygienic environments. The 3500 transmitter is feature-rich, supporting quick configuration and real-time data delivery, helping to improve production efficiency. As a supplier, we ensure ample inventory, prompt delivery, and competitive pricing, along with comprehensive after-sales service, enabling you to achieve efficient operations in various hygienic applications.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description
Specification Details
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Maximum Working Pressure 1,450 psig (100 barg)
Meter Approvals, Calibrations, and Certifications • CSA
• IECEx
• ATEX
Micro Motion 3500 Controller And Transmitter Remote Rack/Panel-Mount
Output Variables Mass & volume flow
Net product content / flow
Temperature
Density
Concentration
Local Display Multi-line LCD panel
Backlit LCD, 128 × 128 pixel, bitmap
Adjustable contrast
Non-glare, chemical-resistant acrylic lens
Large push buttons with tactile feedback
Software-defined function keys
Power AC option:
85 to 265 VAC, 50/60 Hz, 30 VA
DC option:
18 to 30 VDC, 18 watts typical, 25 watts maximum
Input/Output Signals • Two active 4–20 mA
• Three discrete outputs
• One 2-wire frequency output
• One 2-wire frequency input
• Two discrete momentary inputs
HART/WirelessHART Bell 202 signal superimposed on the primary milliamp output
Mounting Options Control-room DIN rail or panel-mount
Application Types • Batch controller
• Custody transfer
• Two-phase flow/entrained gas
• Meter verification
Hazardous Approvals Suitable for non-hazardous areas only
Features
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Minimize Variability Minimize variability in process control with superior sensitivity in a compact design
Product Consistency Ensure product consistency and quality with superior density measurement
Fast Product Change-Over Enable fast product change-over with self-draining design and superior temperature stability
Material Options Choose from options including highly polished 316L stainless steel with a surface finish up to 15 Ra
Measurement Integrity Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
Two-Phase Flow Capabilities Realize superior two-phase flow capabilities for batching, loading and entrained air applications from compact, hygienic SST transmitter housings
Meter Approvals Broad range of meter approvals and certifications, including; CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR
Sanitary Compliance Use in SIP, CIP and sanitary environments where 3-A compliance is required
Micro Motion 3500 Controller And Transmitter Remote Rack/Panel-Mount
Cost Efficiency Decrease your plant's labor, maintenance and operating costs with transmitter functions and PLC capabilities
Efficiency Improvement Increase efficiency, accelerate throughput and improve product quality
Configuration Capabilities Eliminate the need for external tools with full configuration capabilities
User Interaction Improve interaction with a large, programmable display and descriptive alarms for easy setup, control and operation
Uptime Maximization Maximize uptime and process consistency with MVD technology that speeds response and enables multivariable measurement
