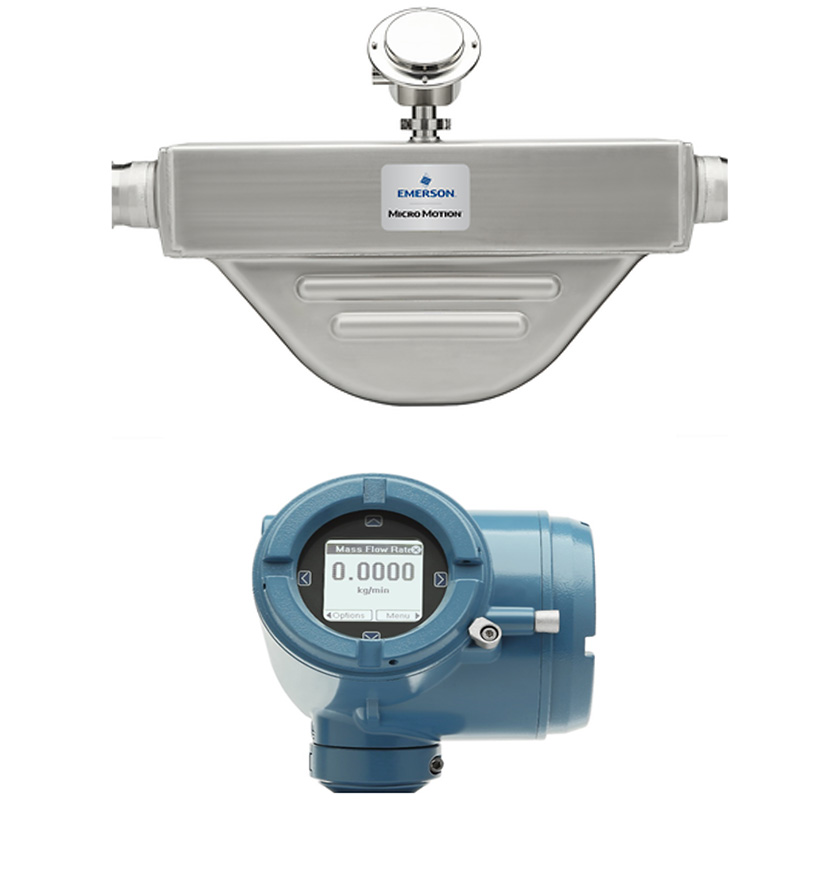

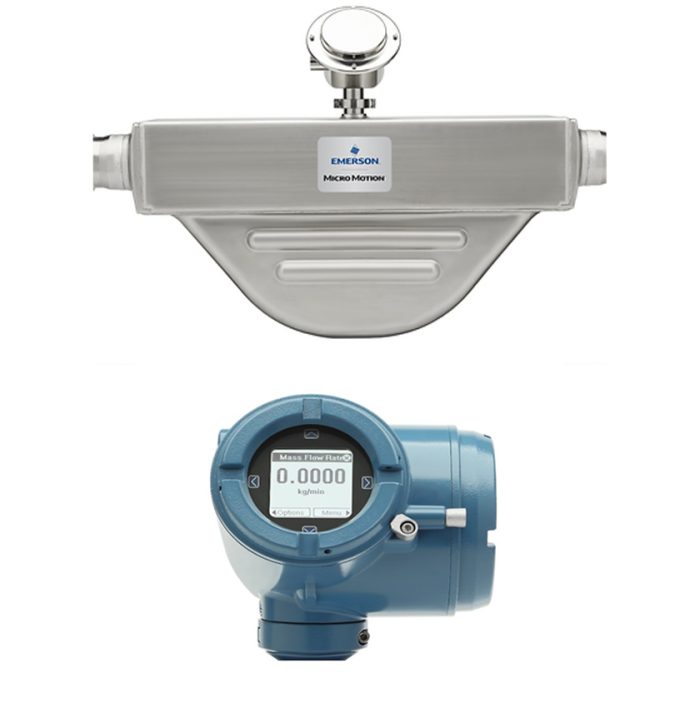

Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400F Sensor and 4200 Transmitter

$2,526.00

As a high-quality supplier, we offer the Micro Motion H-Series Hygienic Coriolis Meter, which combines the H400F sensor and the 4200 transmitter, widely used in industries such as food and pharmaceuticals. This system is made of 316L stainless steel and features excellent density and mass flow measurement accuracy, ensuring product consistency and quality. The self-draining design of the H400F sensor and the real-time Smart Meter Verification function guarantee measurement integrity and reliability. The 4200 transmitter comes with multiple output options and a graphical display, supports multiple languages, simplifies the user interface, and facilitates quick deployment. By choosing us, you will achieve the perfect combination of high-quality products and exceptional service.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Maximum Working Pressure 1,450 psig (100 barg)
Meter Approvals, Calibrations, and Certifications • CSA
• IECEx
• ATEX
Micro Motion 4200 2-Wire Transmitter
Local Display • Graphical display with optional backlight setting
• Four-button capacitive touch controls
• Supports multiple languages: English, German, French, Spanish, Portuguese, Russian, Chinese, Japanese
Power 2-wire loop-powered transmitter, minimum 17.75 V lift off voltage
Input/Output Signals Up to 2 output channels:
• Channel A: loop-powered 4-20mA/HART
• Channel B: externally-powered configurable for 4-20mA, frequency output, or discrete output (Licensable Option)
WirelessHART WirelessHART available with THUM adapter
Mounting Options • Field-mount
• Integrally mounted to various Micro Motion sensors
• Remotely mounted 9-wire with mounting bracket
Application Types • Smart Meter Verification
• Concentration measurement
• API Referral
Hazardous Approvals • Class I, Div. 1
• Class I, Div. 2
• Zone 1
• Zone 2
• Intrinsically Safe
• Explosion Proof
Features
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Process Control Minimize variability with superior sensitivity in a compact design
Product Consistency Ensure quality with superior density measurement
Fast Change-Over Self-draining design with superior temperature stability
Material Options Highly polished 316L stainless steel with surface finish up to 15 Ra
Real-Time Measurement Smart Meter Verification for integrity assurance
Two-Phase Flow Capabilities Compact, hygienic SST transmitter housing for batching and loading
Approvals and Certifications Broad range including; CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR
Sanitary Environments Use in SIP, CIP environments where 3-A compliance is required
Micro Motion 4200 2-Wire Transmitter
Accuracy Up to ±0.10% for mass flow, ±0.0005 g/cc density for liquids; ±0.25% for gases
Data Management Integrated real-time clock for timestamps, alerts, and audit logs
Graphic Display Supports 8 languages, can be rotated without removing front cover
Installation Flexibility Replace existing 2-wire devices easily, expand without extra power costs
Smart Meter Verification Quick assessment for erosion, corrosion, and calibration effects; basic version included
Safety Certification Certified for SIL2 single use and SIL3 multiple use per IEC 61508
Measurement Efficiency Accurate, repeatable mass measurement reduces the number of devices needed
Wireless Option Wireless THUM™ option for maximum installation flexibility
