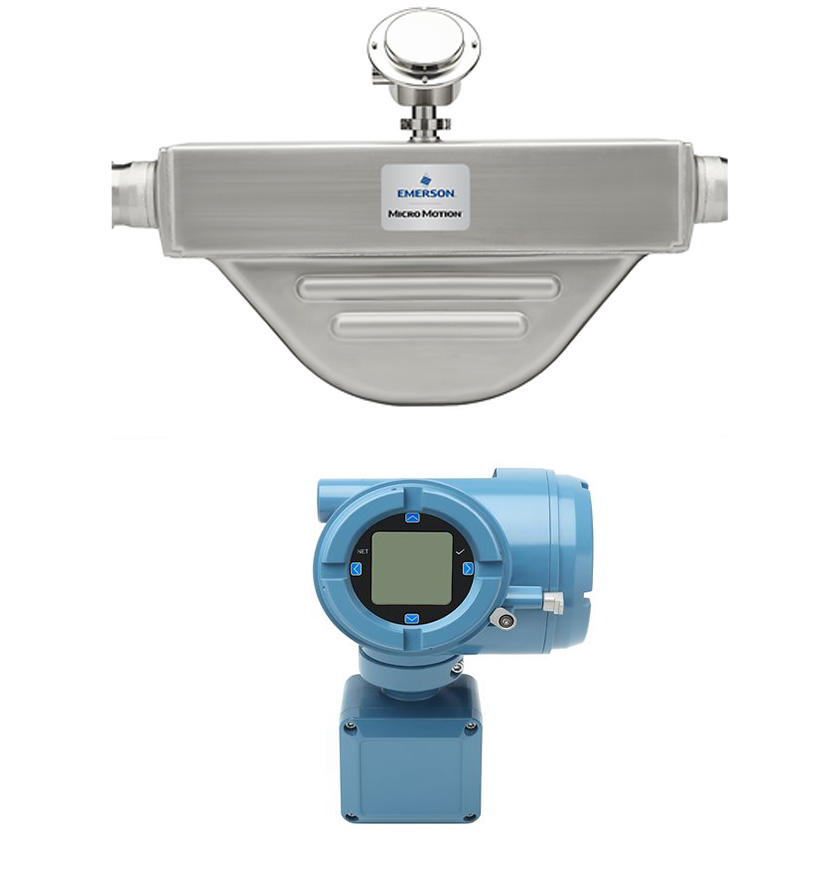

Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400F Sensor and 4700 Transmitter

$2,526.00

As a leading supplier of flow measurement equipment, our Micro Motion H400F Hygienic Coriolis Meter and 4700 configurable transmitter offer exceptional performance and reliability. The H400F, made of 316L stainless steel with a surface finish of up to 15 Ra, ensures high-quality flow measurement in stringent sanitary environments, featuring Smart Meter Verification to provide real-time assurance of measurement integrity. The compact design of the 4700 transmitter allows for flexible applications, improving process control with direct mass measurement and providing detailed measurement history to help customers optimize operations. Our products are certified for safety and reliability, and by choosing us, you gain access to high-quality solutions and professional technical support.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description
Specification Details
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Sensor Maximum Working Pressure 1,450 psig (100 barg)
Meter Approvals CSA, IECEx, ATEX
Micro Motion 4700 Transmitter Configurable Inputs and Outputs
Operating Temperature -61 °F (-52.0 °C) to 149 °F (65.0 °C)
Storage Temperature -61 °F (-52.0 °C) to 185 °F (85.0 °C)
Vibration Limits Meets IEC 60068-2-6, endurance sweep, 5 to 2000 Hz up to 1.0 g
Housing NEMA 4X (IP66/67/69) polyurethane painted cast aluminum or 316 stainless steel
Humidity Range 5 to 95% relative humidity, non-condensing
Linearity .015% Span, Span = 16mA
Input Signal Up to 3 pairs of wiring terminals for transmitter input/output
Power Supply Universal with supply voltage range: 18VDC to 100VDC, 85VAC to 250VAC
Weight Integral mount: 6.48 lb (2.939 kg); Remote mount: 8.21 lb (3.724 kg)
Mounting Options Available for various Micro Motion Coriolis sensors
Display/Interface Standard LCD panel or Bluetooth® wireless technology display option
Features
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Minimize Variability Superior sensitivity in a compact design
Ensure Product Consistency Superior density measurement
Fast Product Change-over Self-draining design and superior temperature stability
Material Options Highly polished 316L stainless steel with a surface finish up to 15 Ra
Measurement Integrity Real-time assurance with Smart Meter Verification
Two-Phase Flow Capabilities For batching, loading, and entrained air applications
Approvals and Certifications CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR
Usage Environments SIP, CIP, and sanitary environments requiring 3-A compliance
Micro Motion 4700 Transmitter Configurable Inputs and Outputs
Flexibility Reliable and accurate flow measurement application
Compact Design Saves electrical cost and space
Direct Mass Measurement Improves process control, reduces measurement devices
Smart Meter Verification Confirms meter performance
Zero Verification Indicates when to re-zero the meter
Measurement History Access Valuable insight for troubleshooting and optimization
Real-time Indication Of multiphase flow events for better control
High-accuracy Density Measurement Reduces waste and records process deviations
Ease of Installation Minimizes time and expertise needed
SIL Capability SIL2/3 capable per IEC 61508
Wireless Option THUM™ for installation and operation flexibility
