H400S Sensor and 1500 Transmitter
H400S Sensor and 3700 Transmitter
Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 3700 Transmitter $2,526.00
Back to products
H400S Sensor and 3500 Transmitter
Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 3500 Transmitter $2,526.00

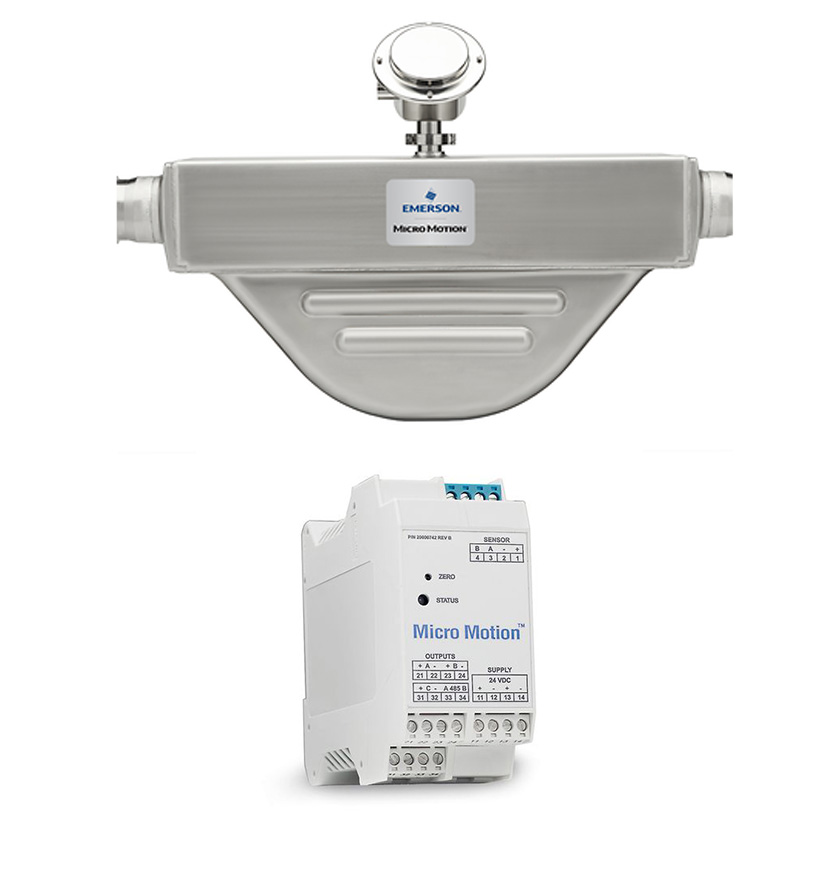

Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 1500 Transmitter

$2,526.00

As a supplier, we offer the Micro Motion H-Series Hygienic Coriolis Meter, combining the H400S sensor and 1500 transmitter, which provides high accuracy, exceptional stability, and a self-draining design, ideal for quick product changeovers and two-phase flow applications in hygienic environments. Made from 316L stainless steel with Smart Meter Verification and multiple international certifications, it ensures reliable measurement. Choose us to optimize your process control, enhance efficiency, and achieve precise flow measurement with superior products and services.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   services@jcscmro.com
Quote Now
Whatsapp
分类： 标签： ,
描述
Specification Details
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Sensor Maximum Working Pressure 1,450 psig (100 barg)
Micro Motion 1500 Compact Control Room Single Variable Flow Transmitter
Available Outputs Model 1500: one flow rate variable (in milliamp and frequency/pulse output); Model 2500: multiple flow variables in combinations of outputs
Housing Polyamide PA 6.6
Power Minimum 19.2 to 28.8 VDC, 6.3 watts, meets Installation (Overvoltage) Category II, Pollution Degree 2 requirements
Input/Output Signals One active 4–20 mA output, One active frequency output
Mounting Options Remote-mount control room only, Mounted on 35 mm rail (must be grounded)
Application Types Continuous process control, Two-phase flow/entrained gas, Filling & dosing, Meter verification
Hazardous Approvals Suitable for non-hazardous environments only
Features
Specification Details
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Minimize Variability Superior sensitivity in a compact design
Ensure Consistency Superior density measurement for product quality
Fast Change-over Self-draining design with superior temperature stability
Material Options Highly polished 316L stainless steel, up to 15 Ra finish
Real-time Measurement Integrity Smart Meter Verification assurance
Two-phase Flow Capabilities Suitable for batching, loading, and entrained air applications
Approvals and Certifications CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR
Use Environment SIP, CIP, and sanitary environments requiring 3-A compliance
Micro Motion 1500 Compact Control Room Single Variable Flow Transmitter
Wiring Expenses Cut costs with a remote-mount transmitter using 35 mm DIN rail
Space Requirement Only 0.03 ft³ space requirement, compared to 1.0 ft³ for typical Coriolis transmitters
Configuration Four-wire connection for power and signal
Performance Diagnostics MVD digital processing for performance under entrained gas and batching from empty applications
Real-time Measurement Integrity Smart Meter Verification assurance
