| Specification | Details |
|---|---|

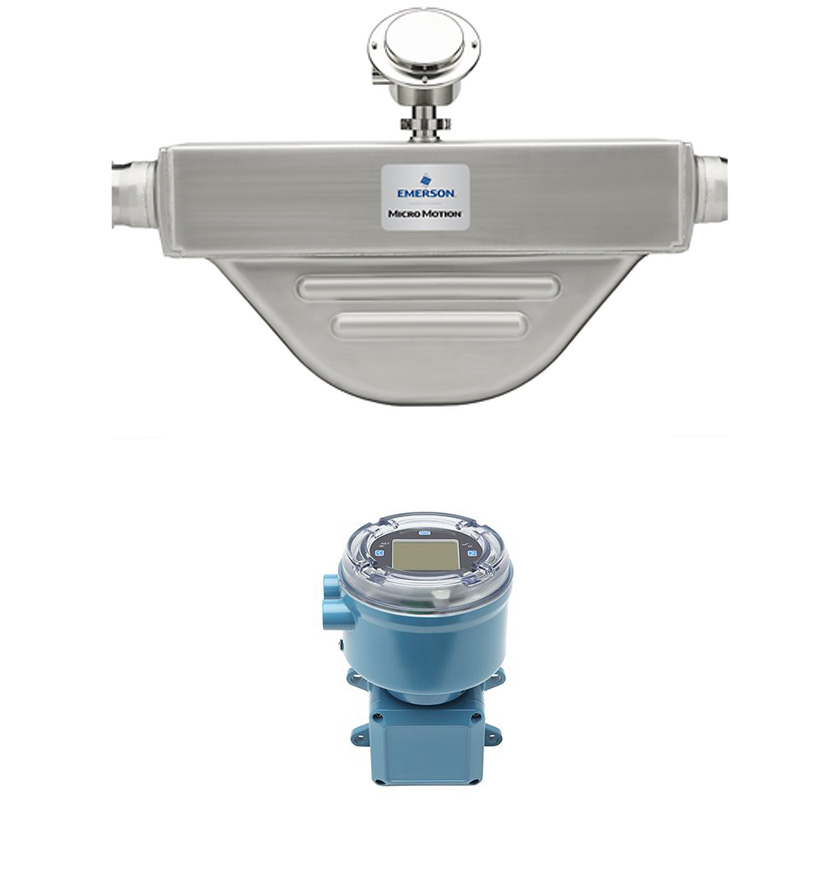

| Micro Motion H400S Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish |
| Mass Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Mass Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Volume Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Volume Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Mass Flow Accuracy (Gas) | Up to ±0.35% of rate |
| Mass Flow Repeatability (Gas) | Up to ±0.175% of rate |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure | 1,450 psig (100 barg) |
| Micro Motion 1600 Compact Transmitter | |
| Display/Interface | Graphical backlit display Four-button mechanical controls Flowmeter-status LED Supports multiple languages: English, German, French, Spanish, Portuguese, Russian, Chinese, Japanese |
| Power Supply | Power over Ethernet available in Ethernet version PoE PD Power Class 3 complies with IEEE 802.3at and 802.3af 18 to 100 VDC, 6 watts typical, 11 watts maximum Self-switching AC/DC input, automatically recognizes supply voltage Complies with Low Voltage Directive 2014/35/EU |
| Universal Service Port | Design allows configuration and transfer of data using a standard USB-C terminal |
| Ethernet Version | Supports EtherNet/IP and Modbus TCP Configurable additional channel for mA output, pulse output, or discrete output |
| Mounting | Field-mount aluminum and hygienic stainless steel housing options Integrally mounted to various Micro Motion sensors Remotely mounted to any 9-wire Micro Motion sensor (aluminum only) |
| Application Types | Smart Meter Verification Professional Discrete batch control Petroleum measurement and AI correction option Concentration measurement Advanced Phase Measurement for two phase flow remediation Filling and dosing |
| Certifications/Approvals | Hazardous approvals: Class I, Div. 2; Zone 2 |
