H400S Sensor and 2400S Transmitter
Micro Motion H400S Coriolis Meter
Micro Motion H400S Coriolis Meter | Emerson Reliable Coriolis Meter supplier $2,526.00
Back to products
H400S Sensor and 3700 Transmitter
Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 3700 Transmitter $2,526.00

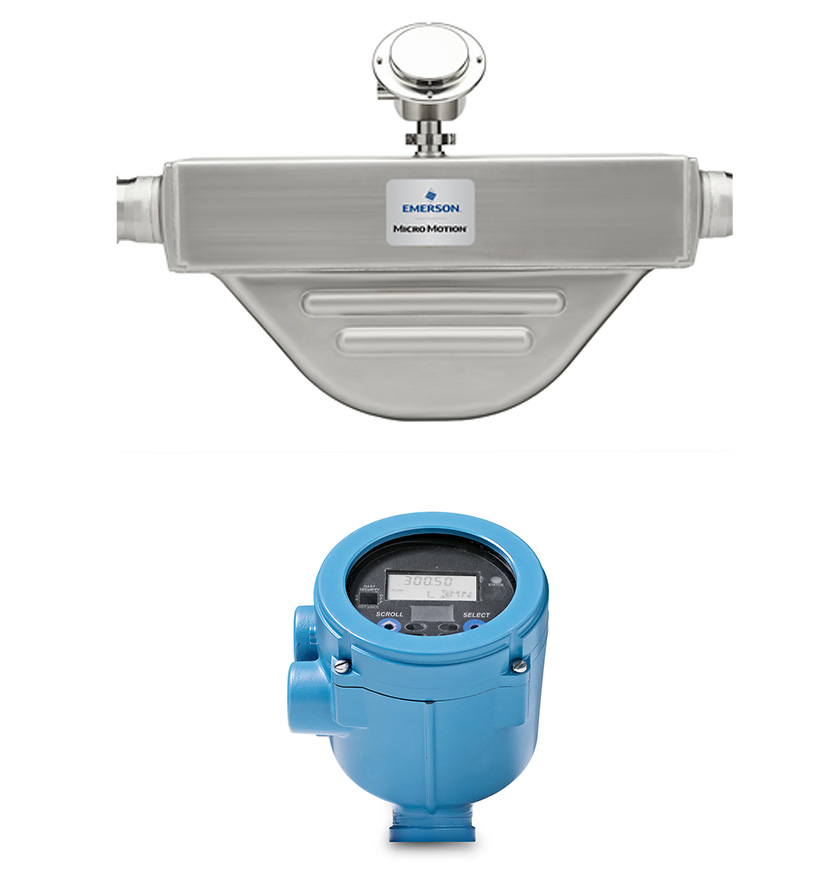

Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 2400S Transmitter

$2,526.00

As a supplier, the Micro Motion H-Series Hygienic Coriolis Meter, consisting of the H400S sensor and 2400S transmitter, offers exceptional measurement accuracy and reliability. Our efficient supply chain ensures timely delivery and ample inventory, while we provide customized services to meet specific needs. Our professional team also offers comprehensive technical support and maintenance services, ensuring a smooth experience for customers and supporting your business success.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   services@jcscmro.com
Quote Now
Whatsapp
分类： 标签： ,
描述
Specification Details
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Mass flow accuracy (Liquid) Up to ±0.05% of rate
Mass flow repeatability (Liquid) Up to ±0.025% of rate
Volume flow accuracy (Liquid) Up to ±0.05% of rate
Volume flow repeatability (Liquid) Up to ±0.025% of rate
Mass flow accuracy (Gas) Up to ±0.35% of rate
Mass flow repeatability (Gas) Up to ±0.175% of rate
Density accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature accuracy ±1 °C ±0.5% of reading
Sensor maximum working pressure 1,450 psig (100 barg)
Micro Motion 2400S Compact, Integral-Mount Transmitter
Output variables Mass & volume flow, Net product content / flow, Temperature, Density, Concentration
Local display Standard user interface with 2-line LCD panel
Power Self-switching AC/DC input, automatically recognizes supply voltage (85–265 VAC, 50/60 Hz, 4 watts typical, 7 watts maximum; 18–100 VDC, 4 watts typical, 7 watts maximum)
Input/output signals (analog output option) Channel A: One active 4–20 mA output; Not intrinsically safe
Mounting options Field mount, integral with sensor
Application types Continuous process control, Two-phase flow/entrained gas, Meter verification
Hazardous approvals C1D2, Zone 2



Feature
Feature Description
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Minimize variability in process control Achieve superior sensitivity with a compact design
Product consistency and quality Ensured through superior density measurement
Fast product change-over Enabled by self-draining design and superior temperature stability
Material options Includes highly polished 316L stainless steel with a finish up to 15 Ra
Real-time measurement integrity Assured with Smart Meter Verification
Superior two-phase flow capabilities For batching, loading, and entrained air applications
Broad range of approvals Including CSA, ATEX, IECEx, etc.
SIP/CIP environments Where 3-A compliance is required
Micro Motion 2400S Compact Transmitter Integral design with multiple functionalities
Performance diagnostics Receive performance data under entrained gas and empty applications with MVD digital processing
Best two-phase flow capability For batching, loading, and entrained gas applications
Optical buttons Eliminate the need to remove the transmitter cover
Hazardous area approvals Class 1, Div. 2 (Zone 2) approval (sensor and transmitter)
