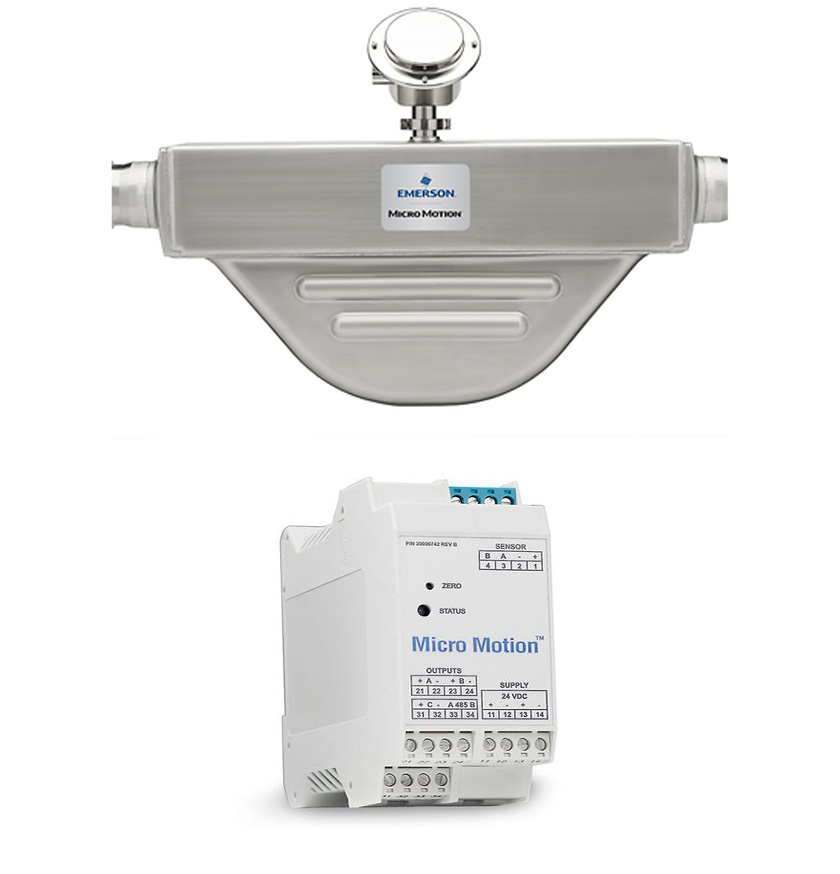

Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 2500 Transmitter

$2,526.00

As a supplier of high-quality equipment, the Micro Motion H-Series Hygienic Coriolis Meter, consisting of the H400S sensor and the 2500 transmitter, offers exceptional flow and density measurement solutions. Made of 316L stainless steel with a 32 RA finish, this system ensures outstanding performance in hygienic environments, suitable for SIP and CIP applications. The H400S sensor’s high precision and sensitivity significantly reduce variability in process control, while the 2500 transmitter enhances operational efficiency through simplified configuration and real-time data processing. Our products also feature multiple certifications, ensuring safety and reliability under stringent industry standards. Choose the Micro Motion H-Series for an efficient, accurate, and hygienically compliant measurement solution.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: ,
Description
Specification Details
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Maximum Working Pressure 1,450 psig (100 barg)
Micro Motion 2500 Compact Control Room Transmitter Multivariable Flow And Density Transmitter
Output Variables • Mass & Volume Flow
• Net Product Content / Flow
• Temperature
• Density
• Concentration
Local Display None
Power • Minimum 19.2 to 28.8 VDC
• 6.3 watts
• Meets Installation (Overvoltage) Category II, Pollution Degree 2 requirements
Input/Output Signals • One active 4–20 mA output
• One active frequency output
HART Bell 202 signal is superimposed on the primary milliamp output
Mounting Options • Mounted on 35 mm rail
• Rail must be grounded
Application Types • Continuous Process Control
• Two-phase Flow/Entrained Gas
• Meter Verification
Hazardous Approvals Suitable for non-hazardous environments only
Features
Micro Motion H400S Hygienic Coriolis Meter Details
Description 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Process Control Minimize variability with superior sensitivity in a compact design
Product Consistency Ensure quality with superior density measurement
Fast Change-over Enable quick product change-over with self-draining design and superior temperature stability
Material Options Highly polished 316L stainless steel with a surface finish up to 15 Ra
Measurement Integrity Gain real-time assurance with Smart Meter Verification
Two-phase Flow Capabilities Ideal for batching, loading, and entrained air applications
Certifications Broad range including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR
Compliance Use in SIP, CIP and sanitary environments with 3-A compliance
Micro Motion 2500 Compact Control Room Transmitter Details
Wiring Expenses Cut costs with a remote-mount transmitter using 35 mm DIN rail
Space Requirement Easily fit in control rooms – just 0.03ft³ space required
Configuration Simplify with a four-wire connection to sensors for power and signal
Performance Diagnosis Diagnose performance under entrained gas and batching with MVD digital processing
Measurement Integrity Gain real-time assurance with Smart Meter Verification
