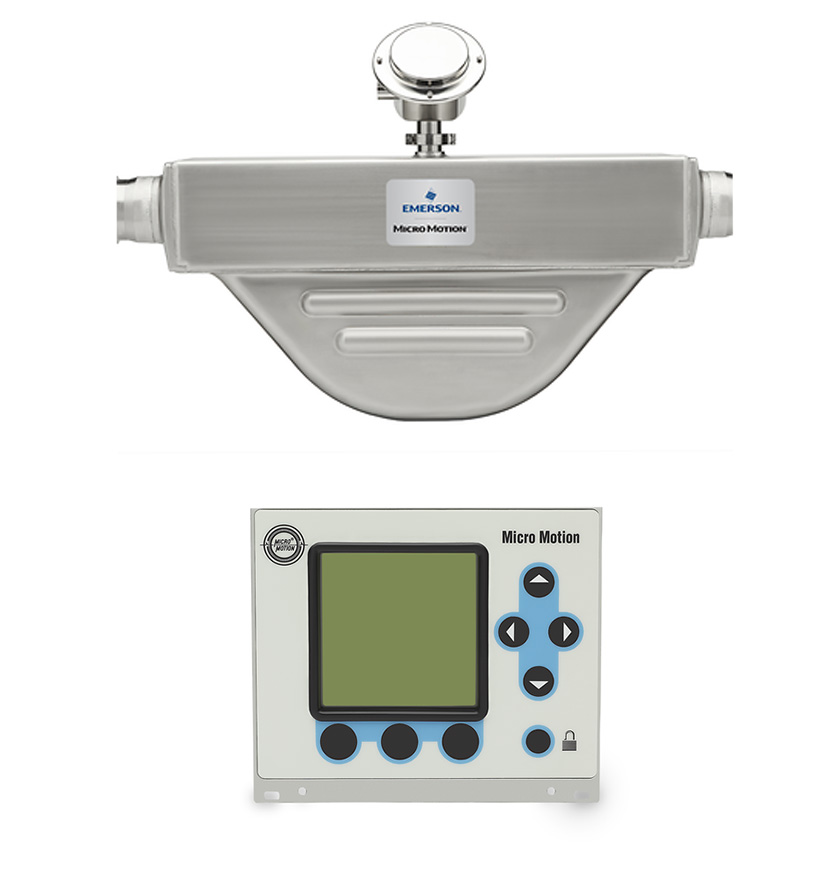

Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 3500 Transmitter

$2,526.00

As a supplier, the Micro Motion H-Series Hygienic Coriolis Meter, consisting of the H400S sensor and 3500 transmitter, delivers exceptional performance, ensuring precise density measurement and rapid product changeovers. Our efficient supply chain guarantees timely delivery and ample inventory to meet customer customization needs. Additionally, the 3500 controller features comprehensive configuration capabilities and a programmable display, significantly reducing labor and maintenance costs for your facility. We also provide extensive technical support and maintenance services, ensuring a seamless experience for our customers and helping drive your business success.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: ,
Description
Specification Details
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Maximum Working Pressure 1,450 psig (100 barg)
Micro Motion 3500 Controller and Transmitter Remote Rack/Panel-Mount
Output Variables Mass & volume flow, net product content/flow, temperature, density, concentration
Local Display Multi-line LCD panel, backlit LCD, 128 × 128 pixel, adjustable contrast
Power Options AC: 85 to 265 VAC, 50/60 Hz, 30 VA; DC: 18 to 30 VDC, 18 watts typical
Input/Output Signals Two active 4–20 mA, three discrete outputs, one 2-wire frequency output, two discrete momentary inputs
Mounting Options Control-room DIN rail or panel-mount
Application Types Batch controller, custody transfer, two-phase flow/entrained gas, meter verification
Hazardous Approvals Suitable for non-hazardous areas only
Features
Specification Details
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Process Control Sensitivity Minimize variability with superior sensitivity in a compact design
Density Measurement Ensure product consistency and quality with superior density measurement
Self-Draining Design Enable fast product change-over and superior temperature stability
Material Options Highly polished 316L stainless steel with a surface finish up to 15 Ra
Measurement Integrity Real-time assurance with Smart Meter Verification
Two-Phase Flow Capabilities Suitable for batching, loading, and entrained air applications
Approvals and Certifications Includes CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR
Application Environment Use in SIP, CIP and sanitary environments with 3-A compliance
Micro Motion 3500 Controller and Transmitter Remote Rack/Panel-Mount
Cost Reduction Decrease labor, maintenance, and operating costs with transmitter functions and PLC capabilities
Efficiency Improvement Increase efficiency, accelerate throughput, and improve product quality
Configuration Eliminate the need for external tools with full configuration capabilities
Display Interaction Large, programmable display with descriptive alarms for easy setup and control
Process Consistency Maximize uptime and process consistency with MVD technology
