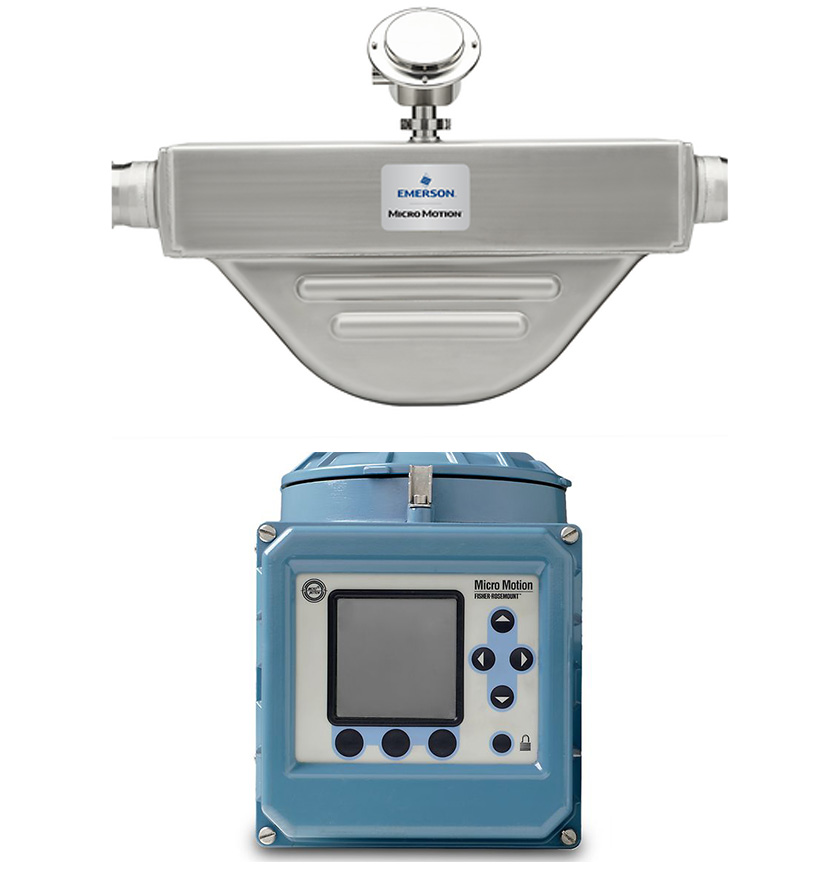

Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 3700 Transmitter

$2,526.00

We offer the Micro Motion H-Series Hygienic Coriolis Meter, combining the H400S sensor and 3700 transmitter, designed to enhance process control consistency and quality. Made from 316L stainless steel with premium surface finishing, it ensures superior density measurement and fast product change-over. Our solutions come with extensive certifications, suitable for stringent SIP and CIP environments, and provide real-time measurement integrity assurance through Smart Meter Verification technology. Additionally, the functionality and PLC capabilities of the 3700 transmitter significantly reduce operational costs, while improving efficiency and product quality. Choose us for comprehensive technical support and ample inventory, ensuring quick delivery and high-quality service.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   services@jcscmro.com
Quote Now
Whatsapp
分类： 标签： , ,
描述
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Sensor Maximum Working Pressure 1,450 psig (100 barg)
Micro Motion 3700 Controller And Transmitter Remote Field-Mount
Output Variables Mass & volume flow, Net product content / flow, Temperature, Density, Concentration
Local Display Multi-line LCD panel, Backlit LCD, 128 × 128 pixel, adjustable contrast, non-glare lens
Power (AC Option) 85 to 265 VAC, 50/60 Hz, 30 VA
Power (DC Option) 18 to 30 VDC, 18 watts typical, 25 watts maximum
Input/Output Signals Two active 4–20 mA, Three discrete outputs, One 2-wire frequency output
Mounting Options Remote field-mount
Application Types Batch controller, Custody transfer, Two-phase flow/entrained gas, Meter verification
Hazardous Approvals UL, CSA, ATEX, NEPSI
Features
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Sensitivity Minimize variability in process control with superior sensitivity in a compact design
Density Measurement Ensure product consistency and quality with superior density measurement
Product Change-over Enable fast product change-over with self-draining design and superior temperature stability
Material Options Choose from options including highly polished 316L stainless steel with a surface finish up to 15 Ra
Measurement Integrity Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
Flow Capabilities Realize superior two-phase flow capabilities for batching, loading, and entrained air applications
Certifications Broad range of meter approvals and certifications, including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR
Usage Use in SIP, CIP, and sanitary environments where 3-A compliance is required
Micro Motion 3700 Controller And Transmitter Remote Field-Mount
Cost Reduction Decrease your plant's labor, maintenance, and operating costs with transmitter functions and PLC capabilities
Efficiency Improvement Increase efficiency, accelerate throughput, and improve product quality
Configuration Eliminate the need for external tools with full configuration capabilities
User Interaction Improve interaction with a large, programmable display and descriptive alarms for easy setup, control, and operation
Uptime Maximization Maximize uptime and process consistency with MVD technology that speeds response and enables multivariable measurement
