H400S Sensor and 4200 Transmitter
H400S Sensor and 2500 Transmitter
Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 2500 Transmitter $2,526.00
Back to products
Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 2700 Transmitter $2,526.00

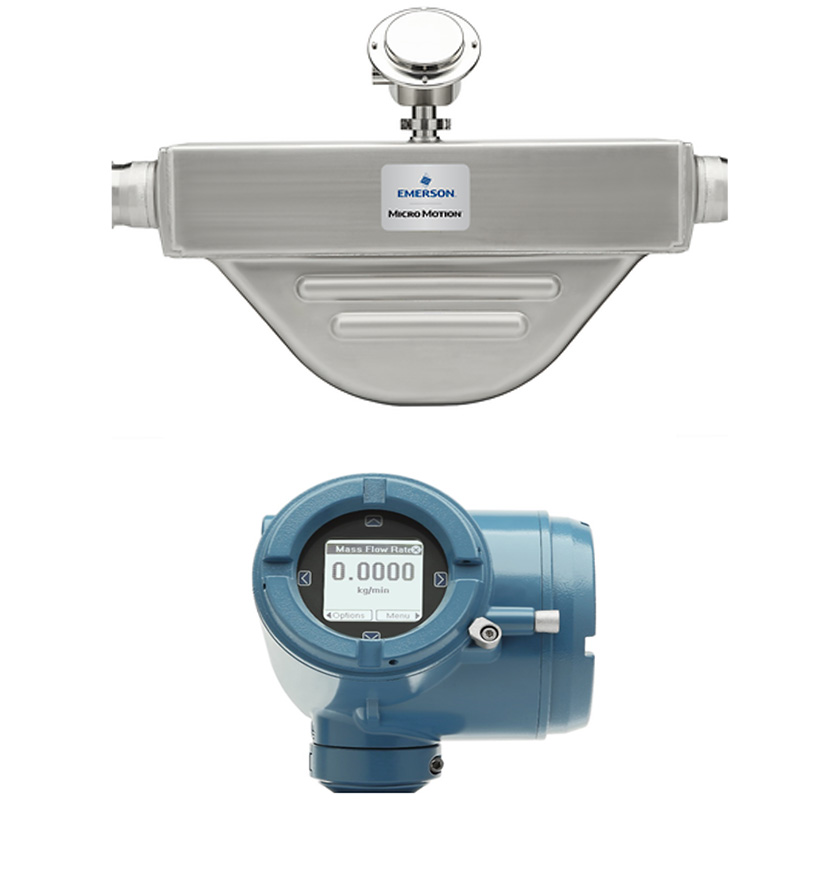

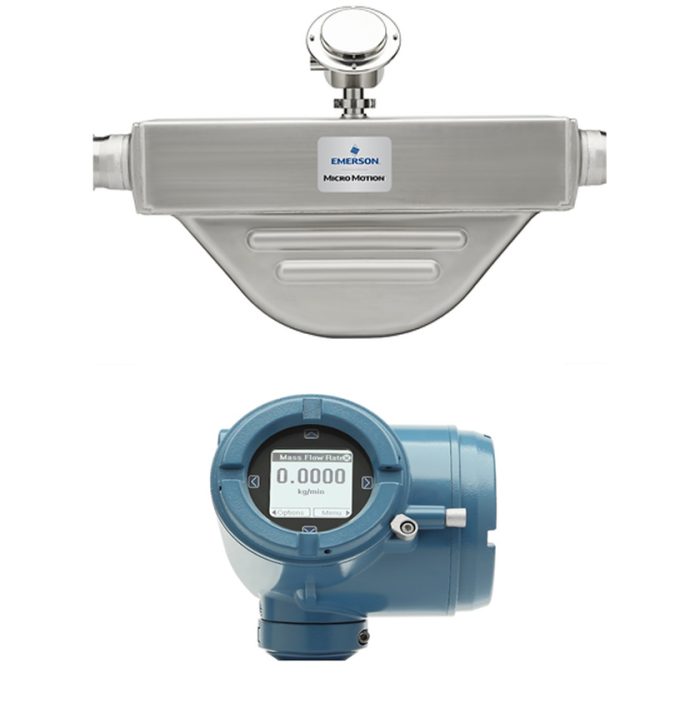

Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 4200 Transmitter

$2,526.00

As a supplier of high-quality flow measurement equipment, the Micro Motion H-Series Hygienic Coriolis Meter, consisting of the H400S sensor and the 4200 transmitter, is designed to deliver exceptional accuracy and reliability. The H400S sensor, made of 316L stainless steel, offers superior density measurement capabilities, ensuring product consistency and quality. Meanwhile, the 4200 transmitter supports various output configurations and features real-time data logging and Smart Meter Verification, effectively enhancing process control efficiency. We provide comprehensive after-sales support and fast delivery to help our customers achieve efficient production in sanitary environments.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: ,
Description
Specification Details
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Maximum Working Pressure 1,450 psig (100 barg)
Micro Motion 4200 2-Wire Transmitter
Local Display • Graphical display with optional backlight setting
• Four-button capacitive touch controls
• Supports multiple languages: English, German, French, Spanish, Portuguese, Russian, Chinese, Japanese
Power • 2-wire loop-powered transmitter
• Minimum 17.75 V lift off voltage
Input/Output Signals • Up to 2 output channels
• Channel A: loop-powered 4-20mA/HART
• Channel B: externally-powered configurable for 4-20mA, frequency output or discrete output (Licensable Option)
WirelessHART WirelessHART available with THUM adapter
Mounting Options • Field-mount
• Integrally mounted to various Micro Motion sensors
• Remotely mounted 9-wire with mounting bracket
Application Types • Smart Meter Verification
• Concentration measurement
• API Referral
Hazardous Approvals • Class I, Div. 1
• Class I, Div. 2
• Zone 1
• Zone 2
• Intrinsically Safe
• Explosion Proof
Features
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Process Control Minimize variability with superior sensitivity in a compact design
Product Consistency Ensure product consistency and quality with superior density measurement
Product Change-Over Enable fast product change-over with self-draining design and superior temperature stability
Material Options Highly polished 316L stainless steel with surface finish up to 15 Ra
Measurement Integrity Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
Flow Capabilities Superior two-phase flow capabilities for batching, loading, and entrained air applications
Certifications Broad range of approvals including CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR
Usage Environments Suitable for SIP, CIP and sanitary environments with 3-A compliance
Micro Motion 4200 2-Wire Transmitter
Flow Accuracy Up to ±0.10% for liquids/slurries; ±0.25% for gases
Density Accuracy ±0.0005 g/cc for liquids and slurries
Data Management Integrated real-time clock for time-stamped process data and complete audit trail
Display Graphic display supports 8 languages and can be rotated without removing the front cover
Installation Replace existing 2-wire devices easily without additional power or cabling costs
Safety Certification Certified for SIL2 single use and SIL3 multiple use safety applications per IEC 61508
Measurement Efficiency Accurate, repeatable mass measurement reduces the number of measurement devices needed
Wireless Option Wireless THUM™ option maximizes installation and operation flexibility
