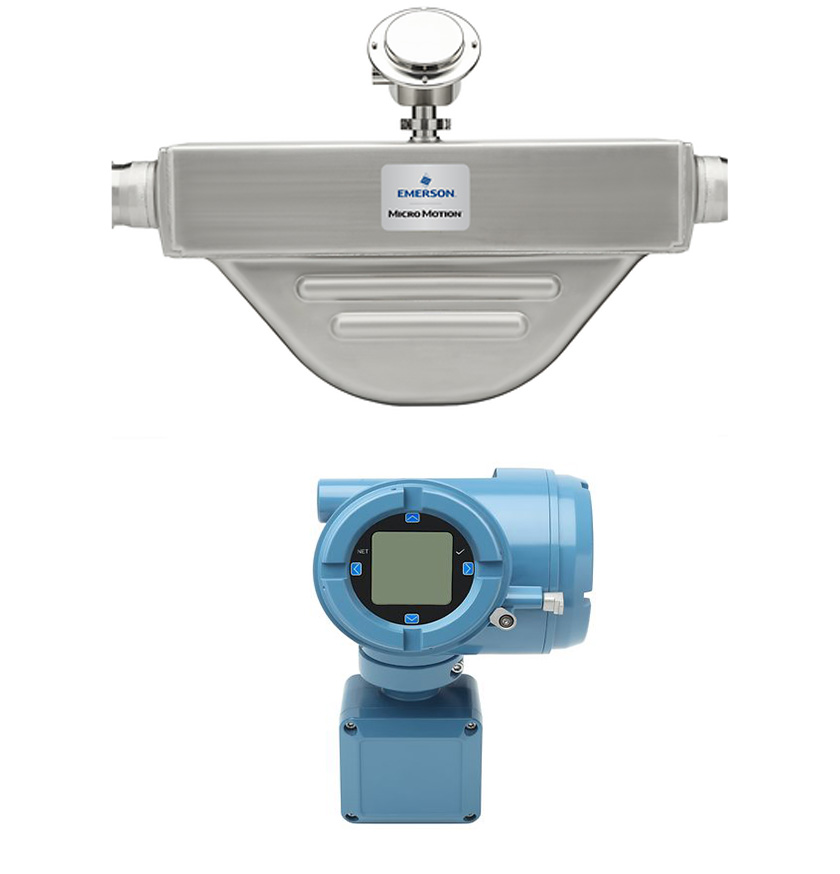

Micro Motion™ H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 4700 Transmitter

$2,526.00

As a supplier of high-quality flow meters, we offer the Micro Motion™ H-Series Hygienic Coriolis Meter, which combines the H400S sensor and the 4700 transmitter, specifically designed for the food, beverage, and pharmaceutical industries. This flow meter ensures efficient and accurate flow and density measurements, utilizing 316L stainless steel and a self-draining design to enhance product consistency. The flexible input and output options of the 4700 transmitter, along with its Smart Meter Verification feature, ensure the reliability of the equipment. By choosing us, you will benefit from exceptional performance and quality service, boosting production efficiency and business success.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: ,
Description
Specification Details
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Maximum Working Pressure 1,450 psig (100 barg)
Micro Motion™ 4700 Coriolis Configurable Inputs and Outputs Transmitter
Environmental Specifications Operating: -61 °F (-52.0 °C) to 149 °F (65.0 °C)
Storage: -61 °F (-52.0 °C) to 185 °F (85.0 °C)
Vibration Limits Meets IEC 60068-2-6, endurance sweep, 5 to 2000 Hz up to 1.0 g.
Housing NEMA 4X (IP66/67/69) polyurethane painted cast aluminum or 316 stainless steel
Humidity Range 5 to 95% relative humidity, non-condensing between -40 °F (-40.0 °C) to 149 °F (65.0 °C)
Linearity 0.015% Span, Span = 16mA
Input Signal Up to 3 pairs of wiring terminals for input/output and digital communications.
Power Supply Universal (self-switching) 18VDC to 100VDC, 85VAC to 250VAC
Housing NEMA 4X (IP66/67) polyurethane-painted cast aluminum
Weight Integral mount version: 6.48 lb (2.939 kg)
Remote mount version: 8.21 lb (3.724 kg)
Cable Glands Two 1/2 in –NPT or M20 x1.5 female conduit port
Mounting Available integrally or remotely mounted to various Coriolis sensors
Display/Interface Standard user interface with LCD panel, Bluetooth® display option available
Features
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Minimize Variability Superior sensitivity in a compact design
Product Consistency Ensure quality with superior density measurement
Fast Product Change-Over Self-draining design and superior temperature stability
Material Options Highly polished 316L stainless steel with surface finish up to 15 Ra
Real-Time Measurement Integrity Smart Meter Verification ensures in-process measurement accuracy
Two-Phase Flow Capabilities Suitable for batching, loading, and entrained air applications
Approvals and Certifications CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR
Compliance Use in SIP, CIP, and sanitary environments with 3-A compliance
Micro Motion™ 4700 Coriolis Transmitter Configurable inputs and outputs for flow measurement applications
Compact Design Saves electrical cost and space on integrated systems
Direct Mass Measurement Improves process control, reducing measurement devices
Smart Meter Verification Confidence in meter performance and calibration
Easy Access to Measurement History Valuable insights for better troubleshooting and optimization
Real-Time Flow Event Indication Greater process control for multiphase flow
High-Accuracy Density Measurement Reduces waste; embedded historian records process deviations
Ease of Installation Designed to minimize time and expertise required
SIL2/3 Capable Certified per IEC 61508 for single and multiple meters
Wireless THUM™ Option Maximizes installation and operation flexibility
