Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 5700 Transmitter

$2,526.00

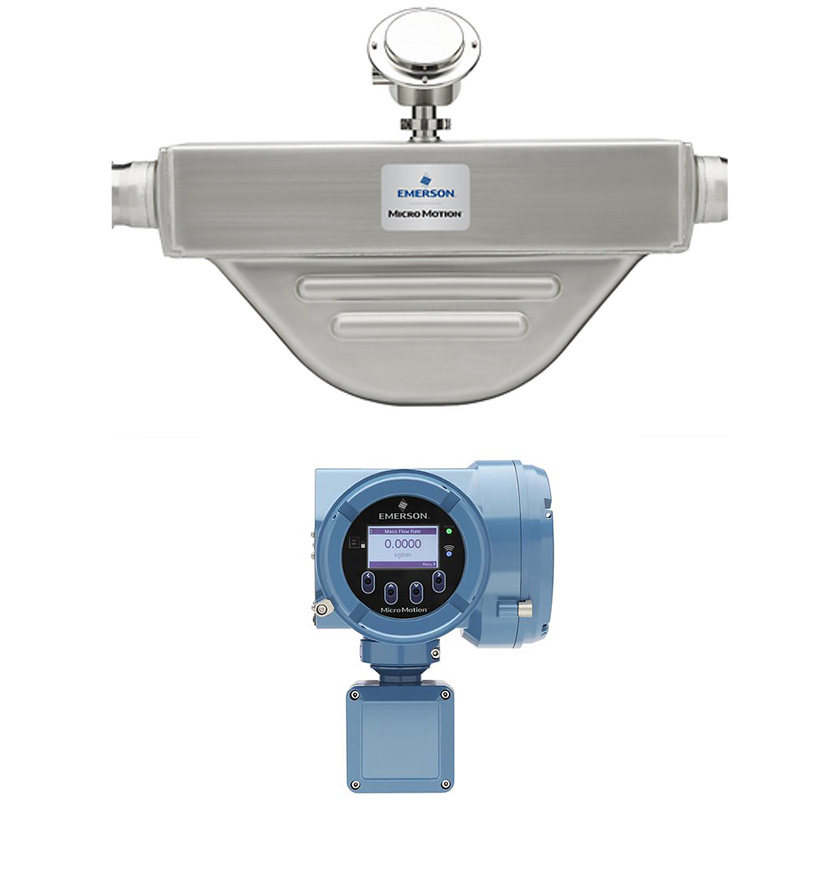

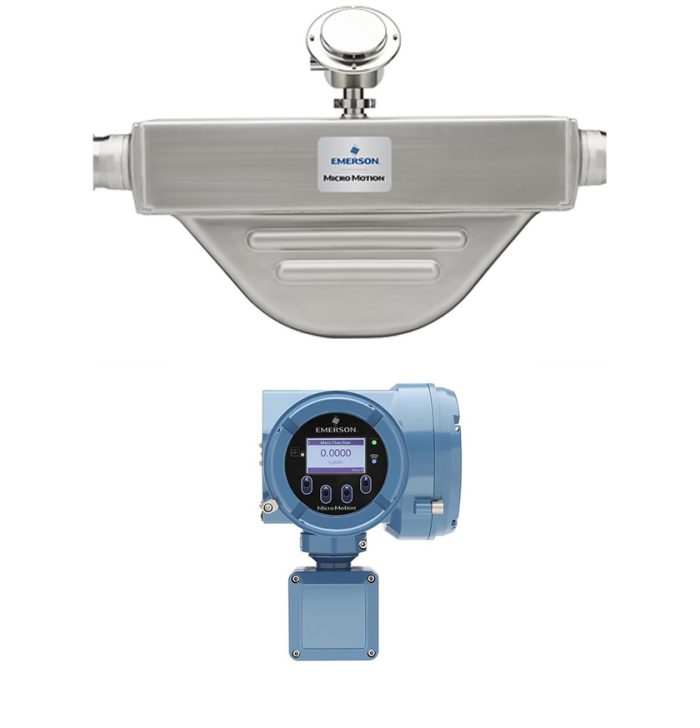

The Micro Motion H-Series Hygienic Coriolis Meter, consisting of the H400S sensor and 5700 transmitter, is designed for hygienic applications, ensuring superior density measurement and rapid product changeover. The 5700 transmitter features a flexible Ethernet architecture and up to five configurable I/O channels, supporting real-time monitoring and Smart Meter Verification. With a wide range of certifications that comply with 3-A standards, it is suitable for SIP and CIP environments, ensuring high quality and reliability, while enhancing production efficiency and product quality. Choose us and leverage our strong supply chain for exceptional process control.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   services@jcscmro.com
Quote Now
Whatsapp
分类： 标签： ,
描述
Specification Details
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Maximum Working Pressure 1,450 psig (100 barg)
Micro Motion 5700 Field-Mount Transmitter Local display with graphical backlit display and four-button optical controls
Power Self-switching AC/DC input, 85 to 240 VAC / 18 to 100 VDC
Universal Service Port Allows connection and data transfer using standard equipment
Configurable I/O Version Up to 5 licensable channels with various output configurations
Communication Protocol Supports WirelessHART, FOUNDATION Fieldbus, PROFIBUS-PA, and Ethernet
Mounting Options Field-mount aluminum and stainless steel housing options
Application Types Smart Meter Verification, batch control, petroleum measurement
Hazardous Approvals Class I, Div. 1 & 2, Zone 1 & 2, SIL/SIS Certification
Features
Micro Motion H400S Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish
Process Control Minimize variability with superior sensitivity in a compact design
Product Consistency Ensure quality with superior density measurement
Product Change-Over Enable fast change-over with self-draining design and superior temperature stability
Material Options Choose polished 316L stainless steel with surface finish up to 15 Ra
Measurement Integrity Real-time assurance with Smart Meter Verification
Flow Capabilities Superior two-phase flow for batching, loading, and entrained air applications
Approvals & Certifications Includes CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR
Compliance Use in SIP, CIP, and sanitary environments with 3-A compliance
Micro Motion 5700 Field-Mount Transmitter Perform fast, flexible installations with native Ethernet architecture
Response Capability Best response in challenging applications like meter proving and batching
Data Insight Capture insights about process events, fluid quality, and measurement stability
I/O Channels Monitor more measurements with up to 5 fully configurable I/O channels
Meter Health Check health in under 90 seconds with Smart Meter Verification
Calibration Confirmation Easily confirm calibration with zero verification
Process Control Real-time indication of multi-phase flow events
Installation Minimize time and expertise needed for installation and operation
