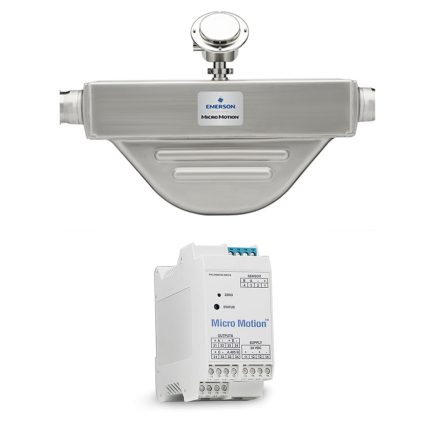

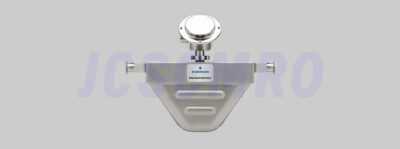

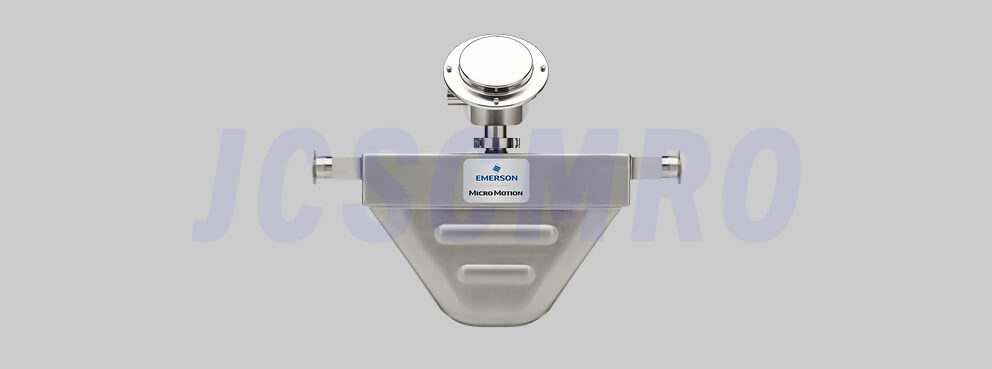

As a B2B supplier, we provide the Micro Motion H100S Hygienic Coriolis Meter, engineered for high-standard sanitary environments. Featuring 316L stainless steel, a 32 Ra finish, and compliance with 3A/EHEDG standards, it delivers ±0.10% mass flow accuracy and ±0.002 g/cm³ density accuracy. With its self-draining design and robust certifications, it ensures reliable performance in SIP, CIP, and other hygienic applications. We offer fast delivery, competitive pricing, and exceptional technical support to enhance your operational efficiency.
| Specification | Details |
|---|---|
| Mass flow accuracy (Liquid) | ±0.15% of rate (standard), ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.05% of rate |
| Volume flow accuracy (Liquid) | ±0.25% of rate (standard), ±0.15% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.05% of rate |
| Mass flow accuracy (Gas) | ±0.50% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) (standard), ±0.001 g/cm³ (±1.0 kg/m³) (optional), ±0.0005 g/cm³ (±0.5 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,450 psig (100 barg) |
| Meter approvals, calibrations, and certifications | • CSA • IECEx • ATEX |
.
