Micro Motion Coriolis
Rosemount
Yokogawa
| Specification | Description |
| Mass Flow Accuracy (Liquid) | ±0.15% of rate (standard), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.05% of rate |
| Volume Flow Accuracy (Liquid) | ±0.25% of rate (standard), ±0.15% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.05% of rate |
| Mass Flow Accuracy (Gas) | ±0.50% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) (standard), ±0.001 g/cm³ (±1.0 kg/m³) (optional), ±0.0005 g/cm³ (±0.5 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 1,015 psig (70 barg) |
| Meter Approvals, Calibrations, and Certifications | • CSA • IECEx • ATEX |

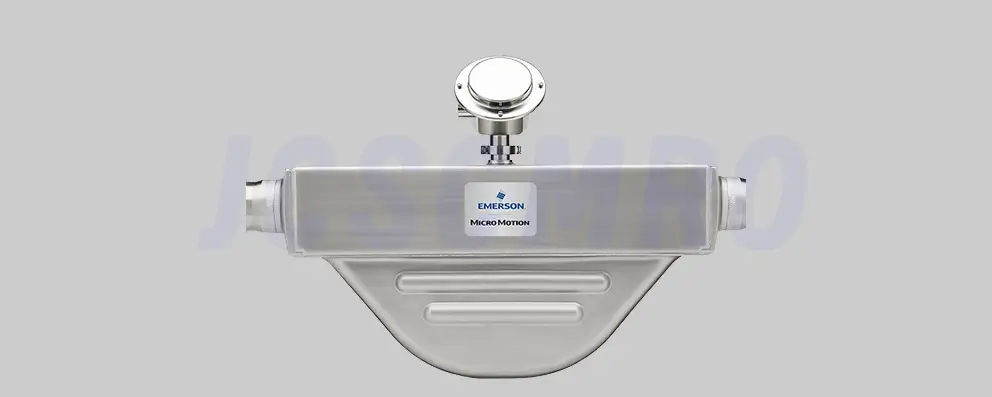

H300F Hygienic Coriolis Meter
As a B2B supplier, the Micro Motion H300F Hygienic Coriolis Meter offers unmatched precision and reliability for your sanitary applications. Made from 316L stainless steel with a 15 Ra finish, it ensures accurate measurement, superior process control, and rapid product change-over. With certifications like 3A, EHEDG, and ATEX, and backed by our strong supply chain and technical support, this flow meter is designed to meet the rigorous demands of your operations, ensuring both efficiency and compliance.
