Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T050T Sensor and 4200 Transmitter $2,328.00
Back to products
Micro Motion H-Series Hygienic Coriolis
Micro Motion H-Series Coriolis Meters | Emerson Micro Motion supplier $2,328.00

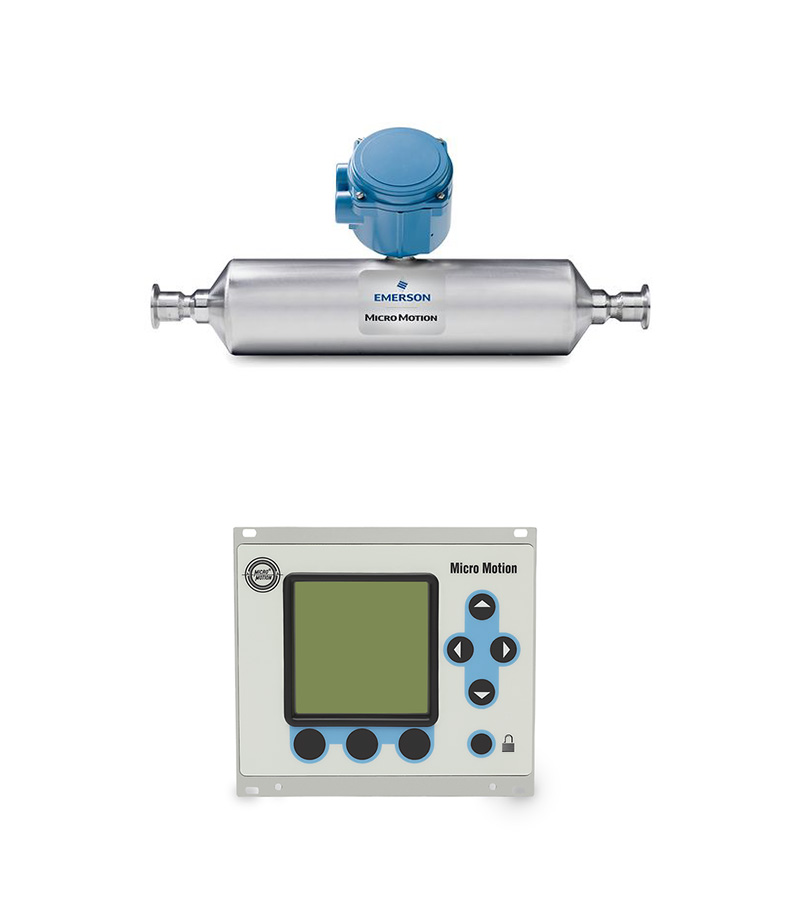

Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T050T Sensor and 3500 Transmitter

$2,328.00

As a supplier, our Micro Motion T050T Straight Tube Coriolis Meter ensures direct, reliable measurement of mass flow and volume with outstanding accuracy and durability. We have a robust supply chain that guarantees sufficient inventory and timely delivery to meet customer needs. Our Micro Motion 3500 Controller and Transmitter not only enhance operational efficiency but also help customers reduce maintenance costs and downtime through comprehensive service support. Additionally, we offer competitive pricing, enabling customers to achieve greater profit margins in the market. Choose us for the perfect combination of quality products and professional service.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: ,
Description
Micro Motion T050T Coriolis Meter 1/2 Inch (DN15), Titanium Grade 9, 32 Ra Finish
Mass Flow Accuracy (Liquid) ±0.15% of rate
Mass Flow Repeatability (Liquid) ±0.05% of rate
Volume Flow Accuracy (Liquid) ±0.25% of rate
Volume Flow Repeatability (Liquid) ±0.05% of rate
Mass Flow Accuracy (Gas) ±0.50% of rate
Mass Flow Repeatability (Gas) ±0.05% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (±2.0 kg/m³)
Density Repeatability (Liquid) ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Sensor Max Working Pressure 1,450 psig (100 barg)
Approvals and Certifications
  • UL
  • CSA
  • ATEX
  • ASME
  • 3-A
  • USDA
  • EHEDG
Micro Motion 3500 Controller and Transmitter Remote Rack/Panel-Mount
Output Variables Mass & volume flow, Net product content/flow, Temperature, Density, Concentration
Local Display Multi-line LCD panel, Backlit LCD, 128 × 128 pixel
Power 85 to 265 VAC, 50/60 Hz; 18 to 30 VDC
Input/Output Signals Two active 4–20 mA, Three discrete outputs, One frequency output/input
HART/WirelessHART Bell 202 signal superimposed on primary milliamp output
Mounting Options Control-room DIN rail or panel-mount
Application Types
  • Batch controller
  • Custody transfer
  • Two-phase flow/entrained gas
  • Meter verification
Hazardous Approvals Suitable for non-hazardous areas only
Features
Micro Motion T050T Coriolis Meter 1/2 Inch (DN15), Titanium Grade 9, 32 Ra Finish
Measurement Capabilities Direct, in-line measurement of mass flow, density, concentration, volume flow, and temperature
Construction Available titanium for compatibility with most fluids
Transmitter Options Wide range of transmitters to meet connectivity needs
Hygienic Applications Improved 15 and 32 Ra surface, EHEDG certified, 3-A authorized, ASME BPE
Approvals and Certifications
  • CSA (Class 1 Div 1 & 2)
  • ATEX
  • IECEx
  • Ingress Protection 66/67
  • NAMUR
Cleaning Easy to clean in place (CIP) and steam in place (SIP)
Installation Robust design, no need for straight runs or flow conditioning
Micro Motion 3500 Controller and Transmitter Remote Rack/Panel-Mount
Cost Efficiency Reduces labor, maintenance, and operating costs
Efficiency Improvements Accelerates throughput and improves product quality
Configuration Full configuration capabilities without external tools
User Interface Large, programmable display with descriptive alarms
Uptime Maximization MVD technology for faster response and multivariable measurement
