Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T050T Sensor and 3500 Transmitter $2,328.00

Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T050T Sensor and 4200 Transmitter

$2,328.00

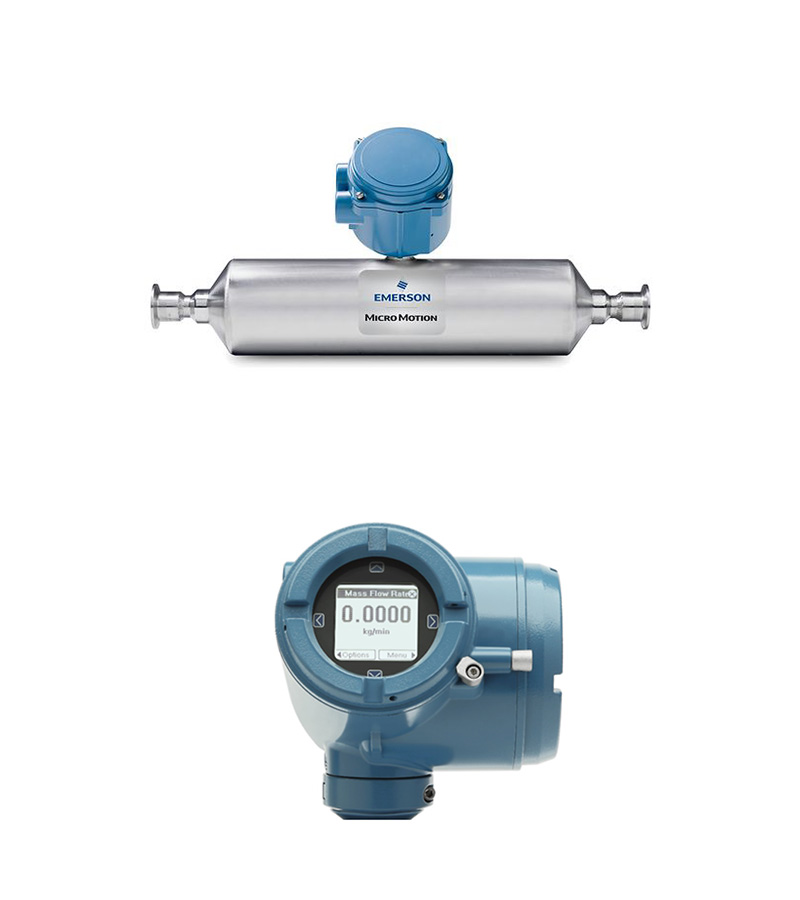

As a supplier, we offer the Micro Motion T050T Straight Tube Coriolis Meter and the 4200 2-Wire Transmitter, ensuring efficient and accurate flow measurement. The T050T is made of titanium and features an exceptional hygienic design, meeting the demands of various fluids and strict sanitary applications. The 4200 transmitter is compatible with a wide range of sensors, providing flow accuracy of up to ±0.10%, and includes an integrated real-time clock and multilingual display to simplify installation and maintenance. Our products are widely certified, ensuring safe and stable operation in diverse environments. By choosing us, you will benefit from excellent service and robust supply chain support.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   services@jcscmro.com
Quote Now
Whatsapp
分类： 标签： , ,
描述
Specification Parameter
Mass Flow Accuracy (Liquid) ±0.15% of rate
Mass Flow Repeatability (Liquid) ±0.05% of rate
Volume Flow Accuracy (Liquid) ±0.25% of rate
Volume Flow Repeatability (Liquid) ±0.05% of rate
Mass Flow Accuracy (Gas) ±0.50% of rate
Mass Flow Repeatability (Gas) ±0.05% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (±2.0 kg/m³)
Density Repeatability (Liquid) ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Maximum Working Pressure of Sensor 1,450 psig (100 barg)
Certifications UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG
Specification Parameter
Local Display Graphical display with optional backlight, four-button capacitive touch controls
Supported Languages English, German, French, Spanish, Portuguese, Russian, Chinese, Japanese
Power 2-wire loop-powered transmitter, minimum 17.75 V lift off voltage
Input/Output Signals Up to 2 output channels: Channel A (4-20mA/HART), Channel B (configurable)
Wireless HART Available with THUM adapter
Mounting Options Field-mount, integrally mounted, remotely mounted 9-wire
Application Types Smart Meter Verification, Concentration Measurement, API Referral
Hazardous Approvals Class I, Div. 1; Class I, Div. 2; Zone 1; Zone 2; Intrinsically Safe; Explosion Proof



Features
Micro Motion T050T Coriolis Meter 1/2 Inch (DN15), Titanium Grade 9, 32 Ra Finish
Measurement Capabilities Mass flow, density, concentration, volume flow, and temperature
Titanium Construction Compatible with most fluids
Connectivity Wide range of transmitter offerings
Hygienic Applications EHEDG certified, 3-A authorized, ASME BPE
Approvals and Certifications CSA, ATEX, IECEx, IP66/67, NAMUR
Cleaning Design Easy to clean in place (CIP) and steam in place (SIP)
Installation Robust design requires no straight runs or flow conditioning
Micro Motion 4200 2-Wire Transmitter Compatible with a wide range of Coriolis mass flow sensors
Mass Flow Accuracy ±0.10% for liquids/slurries, ±0.25% for gases
Density Accuracy ±0.0005 g/cc for liquids and slurries
Real-Time Clock Time stamps process data and audit logs
Graphic Display Supports 8 languages, can rotate without removing cover
Replacement Ease Minimal effort, no extra power or cabling costs
Smart Meter Verification Assess meter condition for erosion and calibration
Safety Certification SIL2 single use, SIL3 multiple use per IEC 61508
Wireless Option THUM™ for installation and operation flexibility
