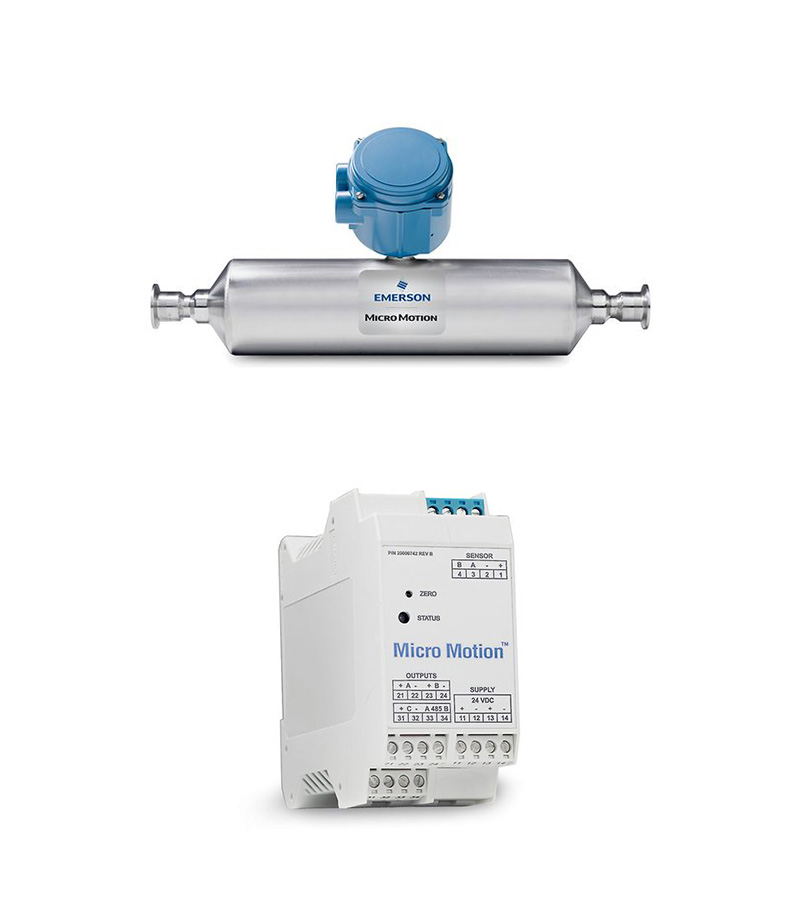

Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T100T Sensor and 1500 Transmitter

$2,328.00

We are proud to offer the Micro Motion T-Series Straight Tube Coriolis Meter, which consists of the T100T sensor and the 1500 transmitter. This high-precision measurement solution is made of corrosion-resistant titanium, capable of real-time measurement of mass flow, density, and concentration, suitable for hygienic applications, and compliant with EHEDG and 3-A certifications. The compact design of the 1500 transmitter requires only 0.03 cubic feet of space, providing flexible installation and configuration options, while the MVD digital processing technology ensures measurement integrity. With quality service and ample inventory, our T-Series Coriolis Meter will help customers enhance efficiency and drive business growth.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description
Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Mass Flow Accuracy (Liquid) ±0.15% of rate
Mass Flow Repeatability (Liquid) ±0.05% of rate
Volume Flow Accuracy (Liquid) ±0.25% of rate
Volume Flow Repeatability (Liquid) ±0.05% of rate
Mass Flow Accuracy (Gas) ±0.50% of rate
Mass Flow Repeatability (Gas) ±0.05% of rate
Density Accuracy (Liquid) ±0.002 g/cm3 (±2.0 kg/m3)
Density Repeatability (Liquid) ±0.0005 g/cm3 (±0.5 kg/m3)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Certifications UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG
Micro Motion 1500 Compact Control Room Transmitter Single Variable Flow Transmitter
Available Outputs Model 1500: One flow rate variable; Model 2500: Multiple flow variables
Housing Polyamide PA 6.6
Power Minimum 19.2 to 28.8 VDC, 6.3 watts
Input/Output Signals One active 4–20 mA output, one active frequency output
Mounting Options Remote-mount control room, mounted on 35 mm rail
Application Types Continuous process control, two-phase flow, filling & dosing, meter verification
Hazardous Approvals Suitable for non-hazardous environments only
Features
Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Measurement Capabilities Direct, in-line measurement of mass flow, density, concentration, volume flow, and temperature
Construction Material Titanium construction for compatibility with most fluids
Connectivity Wide range of transmitter offerings
Hygienic Applications Improved 15 and 32 Ra surface, EHEDG certified, 3-A authorized, ASME BPE compliant
Certifications CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR
Ease of Cleaning Designed for easy cleaning in place (CIP) and steam in place (SIP)
Installation Robust design that doesn’t require straight runs or flow conditioning
Micro Motion 1500 Compact Transmitter Single Variable Flow Transmitter
Wiring Expenses Cut expenses with remote-mount transmitter using 35 mm DIN rail
Space Requirement 0.03 ft³ space requirement, versus 1.0 ft³ typically for Coriolis transmitters
Configuration Four-wire connection to sensors for power and signal
Performance Diagnosis Digital processing for entrained gas and batching from empty applications
Measurement Integrity Real-time assurance with Smart Meter Verification
