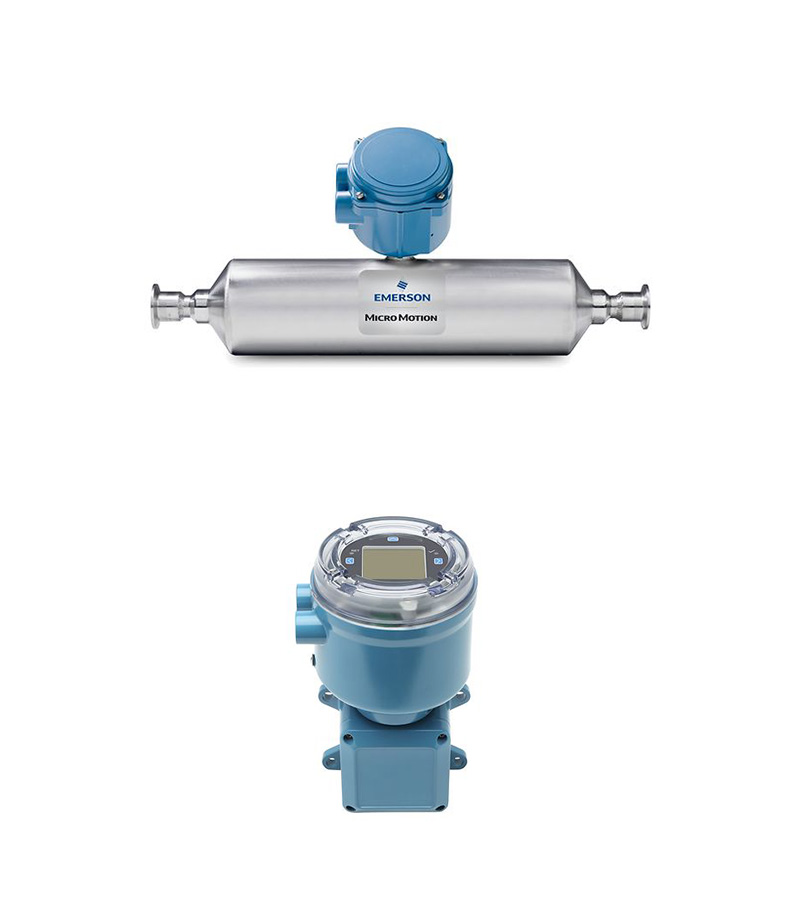

Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T100T Sensor and 1600 Transmitter

$2,328.00

As a supplier, we are proud to offer the Micro Motion T-Series Straight Tube Coriolis Meter, consisting of the T100T sensor and 1600 transmitter. This high-performance instrument enables direct online measurement of mass flow, density, concentration, volume flow, and temperature. Made from corrosion-resistant titanium, it features a surface finish of 15 and 32 Ra, meeting hygiene standards. The 1600 transmitter supports Ethernet/IP and PoE capabilities, with data historian and Smart Meter Verification for efficient remote monitoring and product quality assurance. We are committed to providing excellent after-sales service and fast delivery, helping customers enhance productivity and achieve business success.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description
Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Mass Flow Accuracy (Liquid) ±0.15% of rate
Mass Flow Repeatability (Liquid) ±0.05% of rate
Volume Flow Accuracy (Liquid) ±0.25% of rate
Volume Flow Repeatability (Liquid) ±0.05% of rate
Mass Flow Accuracy (Gas) ±0.50% of rate
Mass Flow Repeatability (Gas) ±0.05% of rate
Density Accuracy (Liquid) ±0.002 g/cm3 (±2.0 kg/m3)
Density Repeatability (Liquid) ±0.0005 g/cm3 (±0.5 kg/m3)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Certifications UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG
Micro Motion 1600 Compact Transmitter Graphical backlit display, four-button controls
Power Supply 18 to 100 VDC, 6 watts typical
Universal Service Port USB-C terminal for configuration and data transfer
Mounting Options Field-mount aluminum or hygienic stainless steel
Application Types Smart Meter Verification, discrete batch control, petroleum measurement
Hazardous Approvals Class I, Div. 2, Zone 2
Features
Micro Motion T100T Coriolis Meter Direct, in-line measurement of mass flow, density, concentration, volume flow, and temperature.
Material Compatibility Titanium construction for compatibility with most fluids.
Connectivity Wide range of transmitter offerings for various connectivity needs.
Hygienic Applications Improved surface finish (15 and 32 Ra), EHEDG certified, 3-A authorized, and ASME BPE compliant.
Certifications Broad range including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR.
Cleaning Easy to clean in place (CIP) and steam in place (SIP).
Installation Highly robust design; no need for straight runs or flow conditioning.
Micro Motion 1600 Compact Transmitter Ease of installation with Ethernet/IP and Power Over Ethernet (PoE) capabilities.
Data Insights Data historian for short- and long-term insights on process events and fluid quality.
Smart Meter Verification Check meter health in fewer than 90 seconds.
Software Features Licensable features such as Concentration Measurement and Advanced Phase Measurement.
Graphic Display Supports 8 languages and can be rotated using integrated software.
