Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T100T Sensor and 1600 Transmitter $2,328.00

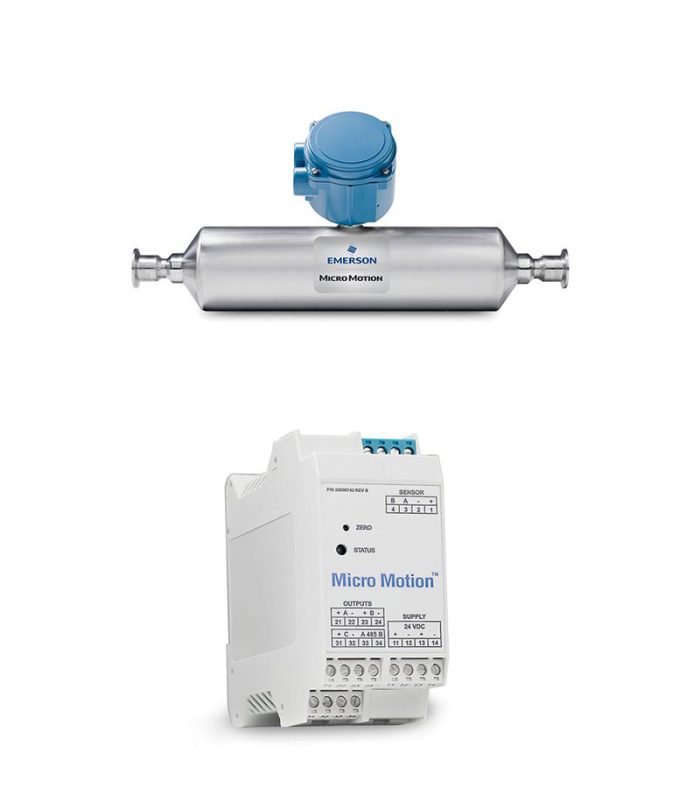

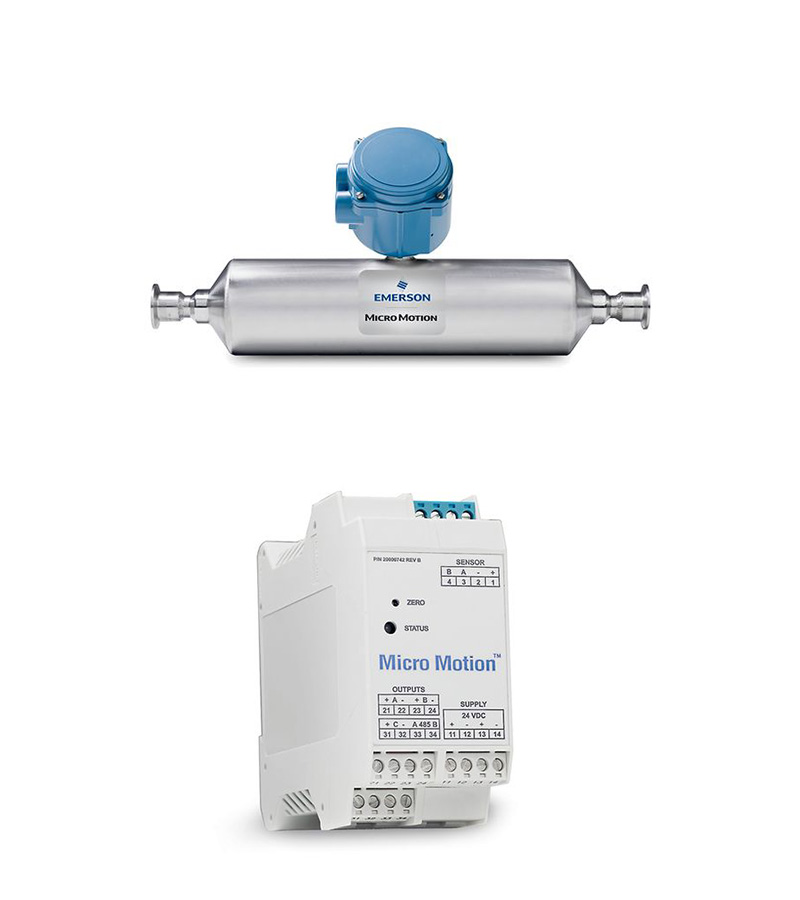

Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T100T Sensor and 2500 Transmitter

$2,328.00

As a supplier, we are proud to recommend the Micro Motion T-Series Straight Tube Coriolis Meter, consisting of the T100T sensor and 2500 transmitter. This flowmeter features exceptional measurement accuracy (liquid mass flow accuracy of ±0.15%), with titanium alloy construction ensuring corrosion resistance and hygiene. Its design eliminates the need for straight pipe runs, facilitating quick installation and cleaning. The product is certified by multiple international standards, making it suitable for high-risk environments. We are committed to providing comprehensive after-sales support to ensure your peace of mind and efficiency during use. Choose the T-Series to enhance your production processes and business success.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description
Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Mass Flow Accuracy (Liquid) ±0.15% of rate
Mass Flow Repeatability (Liquid) ±0.05% of rate
Volume Flow Accuracy (Liquid) ±0.25% of rate
Volume Flow Repeatability (Liquid) ±0.05% of rate
Mass Flow Accuracy (Gas) ±0.50% of rate
Mass Flow Repeatability (Gas) ±0.05% of rate
Density Accuracy (Liquid) ±0.002 g/cm3 (±2.0 kg/m3)
Density Repeatability (Liquid) ±0.0005 g/cm3 (±0.5 kg/m3)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Certifications UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG
Micro Motion 2500 Multivariable Transmitter Compact Control Room
Output Variables Mass & volume flow, net product content, temperature, density, concentration
Local Display None
Power 19.2 to 28.8 VDC, 6.3 watts
Input/Output Signals One active 4–20 mA output, one active frequency output
Mounting Options Mounted on 35 mm rail (must be grounded)
Application Types Continuous process control, two-phase flow, meter verification
Hazardous Approvals Suitable for non-hazardous environments only
Features
Micro Motion T100T Coriolis Meter
Direct Measurement Achieve direct, in-line measurement of mass flow, density, concentration, volume flow, and temperature from one device.
Material Compatibility Choose titanium construction for compatibility with most fluids.
Connectivity Meet virtually any connectivity needs with a wide range of transmitter offerings.
Hygienic Applications Use with hygienic applications with improved surface finish and certifications (EHEDG, 3-A, ASME BPE).
Approvals & Certifications Broad range of approvals, including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR.
Ease of Cleaning Design allows for easy clean-in-place (CIP) and steam-in-place (SIP).
Installation Simplified installation with a robust design that doesn't need straight runs or flow conditioning.
Micro Motion 2500 Multivariable Transmitter
Wiring Efficiency Cut wiring expenses with a remote-mount transmitter using 35 mm DIN rail.
Space Saving Easily fit in control rooms with just a 0.03 ft³ space requirement.
Configuration Simplified configuration with a four-wire connection for power and signal.
Performance Diagnostics Diagnose performance under entrained gas and batching with MVD digital processing.
Measurement Integrity Gain real-time and in-process measurement integrity assurance with Smart Meter Verification.
