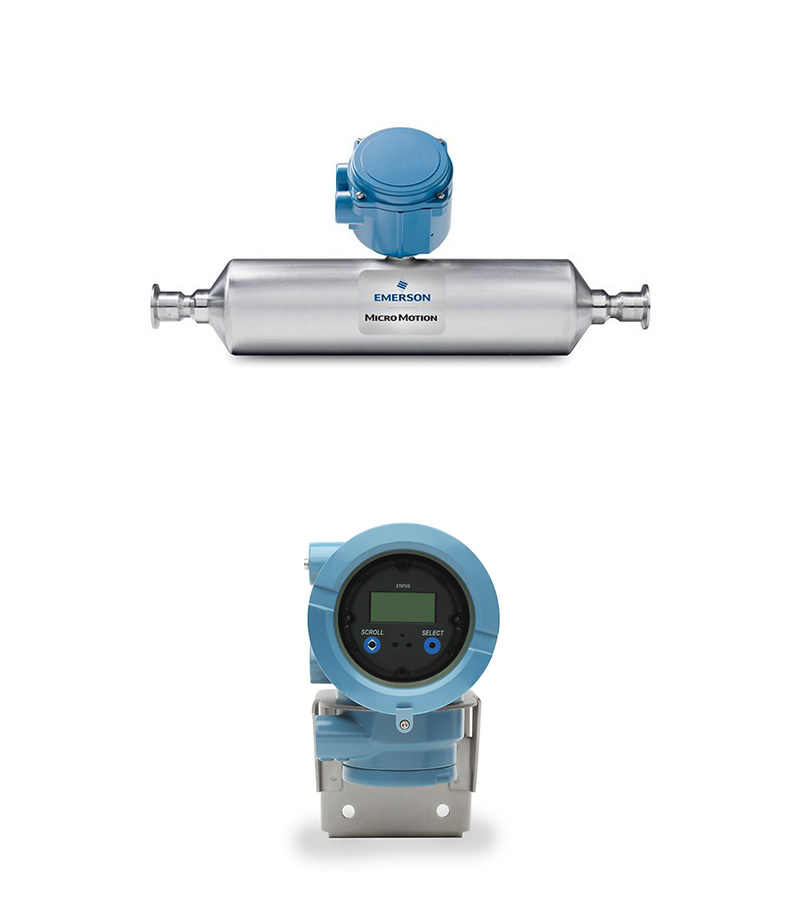

| Micro Motion T100T Coriolis Meter | 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish |
| Mass Flow Accuracy (Liquid) | ±0.15% of rate |
| Mass Flow Repeatability (Liquid) | ±0.05% of rate |
| Volume Flow Accuracy (Liquid) | ±0.25% of rate |
| Volume Flow Repeatability (Liquid) | ±0.05% of rate |
| Mass Flow Accuracy (Gas) | ±0.50% of rate |
| Mass Flow Repeatability (Gas) | ±0.05% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm3 (±2.0 kg/m3) |
| Density Repeatability (Liquid) | ±0.0005 g/cm3 (±0.5 kg/m3) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Max Working Pressure | 1,450 psig (100 barg) |
| Certifications | UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG |
| Micro Motion 2700 Multivariable Transmitter | Field and Integral-Mount |
| Output Variables | Mass & volume flow, net product content, temperature, density, concentration |
| Local Display | 2-line LCD panel, glass/plastic lens options |
| Power | 85 to 265 VAC or 18 to 100 VDC, self-switching AC/DC input |
| Input/Output Signals | 4-20 mA and frequency outputs, configurable I/O options |
| Mounting Options | Field-mount, integrally mounted to various Micro Motion sensors |
| Application Types | Continuous process control, custody transfer, meter verification |
| Hazardous Approvals | Class I, Div. 1 & 2; Zone 1 & 2 |
