Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T100T Sensor and 4200 Transmitter $2,328.00

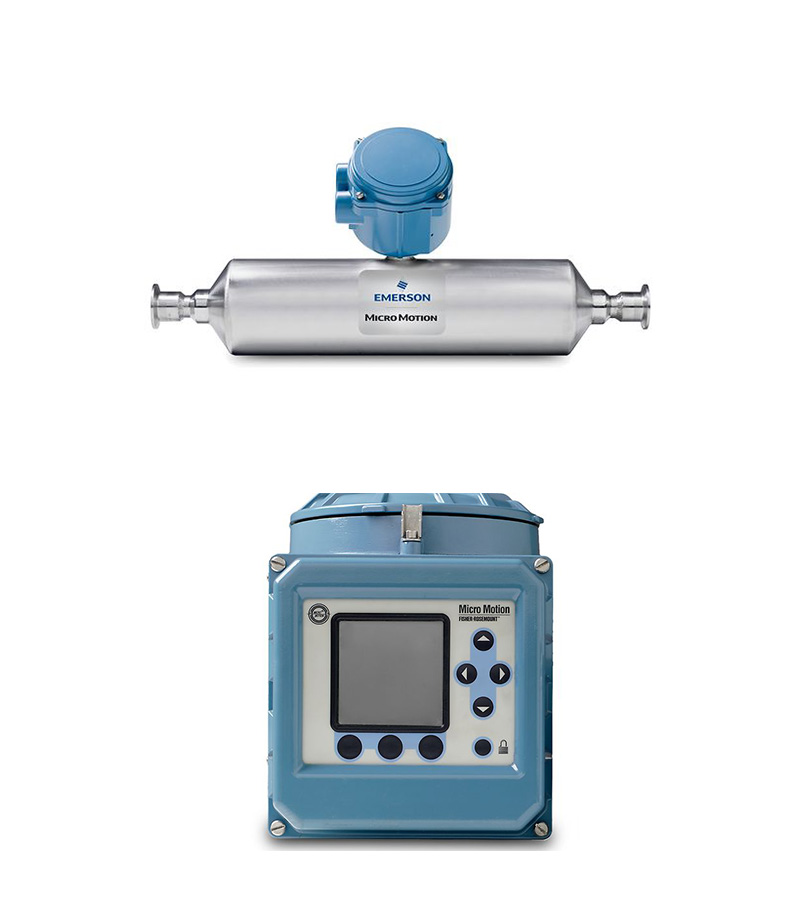

Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T100T Sensor and 3700 Transmitter

$2,328.00

The Micro Motion T-Series Straight Tube Coriolis Meter, integrating the T100T sensor and 3700 transmitter, delivers high-precision measurements of mass, density, and volume flow. Its titanium construction and 32 Ra surface finish ensure compatibility with various fluids while meeting hygienic standards. The 3700 transmitter offers flexible configuration options and real-time monitoring capabilities, optimizing customers’ production processes. By choosing our T-Series, you will receive exceptional performance and quality service support.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   services@jcscmro.com
Quote Now
Whatsapp
分类： 标签： , ,
描述
Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Mass Flow Accuracy (Liquid) ±0.15% of rate
Mass Flow Repeatability (Liquid) ±0.05% of rate
Volume Flow Accuracy (Liquid) ±0.25% of rate
Volume Flow Repeatability (Liquid) ±0.05% of rate
Mass Flow Accuracy (Gas) ±0.50% of rate
Mass Flow Repeatability (Gas) ±0.05% of rate
Density Accuracy (Liquid) ±0.002 g/cm3 (±2.0 kg/m3)
Density Repeatability (Liquid) ±0.0005 g/cm3 (±0.5 kg/m3)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Certifications UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG
Micro Motion 3700 Controller and Transmitter Remote Field-Mount
Output Variables Mass & volume flow, net product content/flow, temperature, density, concentration
Local Display Multi-line LCD panel, backlit, 128 × 128 pixels
Power (AC Option) 85 to 265 VAC, 50/60 Hz, 30 VA
Power (DC Option) 18 to 30 VDC, 18 watts typical, 25 watts maximum
Input/Output Signals Two active 4–20 mA, three discrete outputs, one frequency output/input
Mounting Options Remote field-mount
Application Types Batch controller, custody transfer, two-phase flow, meter verification
Hazardous Approvals UL, CSA, ATEX, NEPSI
Features
Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Measurement Capabilities Direct, in-line measurement of mass flow, density, concentration, volume flow, and temperature
Construction Material Titanium for compatibility with most fluids
Connectivity Wide range of transmitter offerings
Hygienic Applications Improved 15 and 32 Ra surface, EHEDG certified, 3-A authorized, ASME BPE
Approvals and Certifications CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR
Ease of Cleaning Design allows for easy clean in place (CIP) and steam in place (SIP)
Installation Robust design that doesn't require straight runs or flow conditioning
Micro Motion 3700 Controller and Transmitter Remote Field-Mount
Cost Efficiency Decrease labor, maintenance, and operating costs with integrated functions
Efficiency Increase throughput and improve product quality
Configuration Full configuration capabilities without external tools
Display Large, programmable display with descriptive alarms
Uptime and Consistency MVD technology for fast response and multivariable measurement
