| Title | Description |
|---|---|
| Micro Motion T100T Straight Tube Coriolis Meter | 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish |
| Mass flow accuracy (Liquid) | ±0.15% of rate |
| Mass flow repeatability (Liquid) | ±0.05% of rate |
| Volume flow accuracy (Liquid) | ±0.25% of rate |
| Volume flow repeatability (Liquid) | ±0.05% of rate |
| Mass flow accuracy (Gas) | ±0.50% of rate |
| Mass flow repeatability (Gas) | ±0.05% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) |
| Density repeatability (Liquid) | ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,450 psig (100 barg) |
| Meter approvals and certifications | UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG |
| Micro Motion 4200 2-Wire Transmitter | |
| Local display | Graphical display with optional backlight setting |
| Control interface | Four-button capacitive touch controls |
| Power | 2-wire loop-powered transmitter, Minimum 17.75 V lift off voltage |
| Input/output signals | Up to 2 output channels |
| Channel A | Loop-powered 4-20mA/HART |
| Channel B | Externally-powered configurable for 4-20mA, frequency output or discrete output (Licensable Option) |
| WirelessHART | Available with THUM adapter |
| Mounting options | Field-mount, Integrally mounted, Remotely mounted 9-wire with mounting bracket |
| Application types | Smart Meter Verification, Concentration measurement, API Referral |
| Hazardous approvals | Class I, Div. 1; Class I, Div. 2; Zone 1; Zone 2; Intrinsically Safe; Explosion Proof |

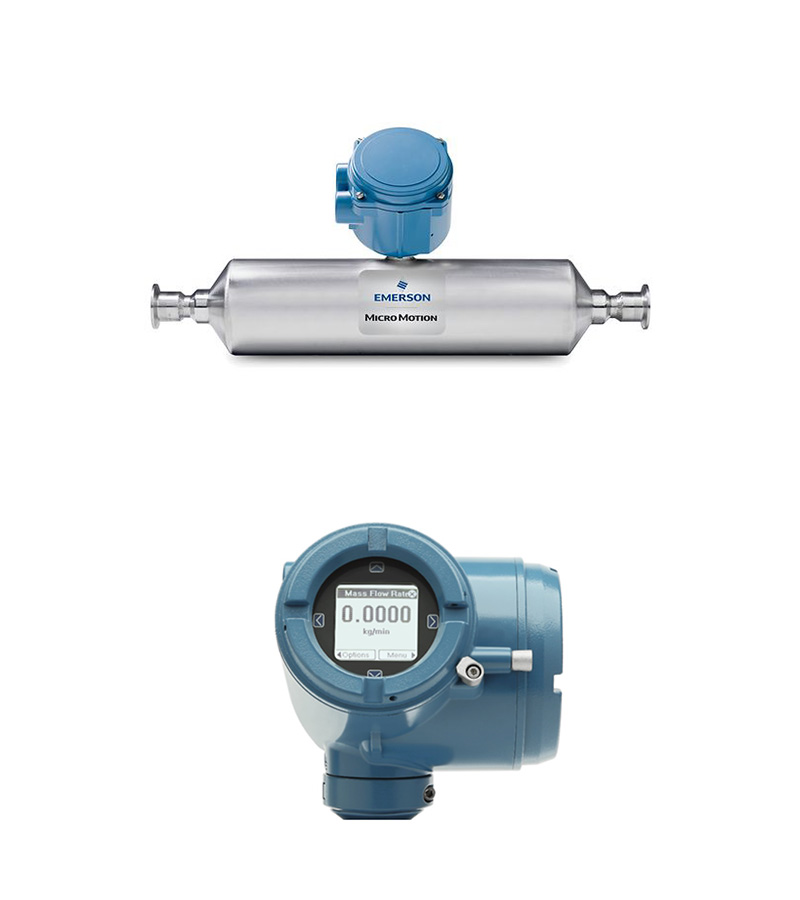

Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T100T Sensor and 4200 Transmitter
$2,328.00
As a supplier, the Micro Motion T-Series Straight Tube Coriolis Meter combines the T100T sensor and the 4200 transmitter to deliver exceptional measurement of mass, density, and volumetric flow. Its titanium construction and 32 Ra surface finish ensure compliance with hygiene standards and fluid compatibility. The 4200 transmitter features high precision and real-time monitoring capabilities, supporting various communication protocols to simplify installation and maintenance, thus enhancing production efficiency. By choosing our T-Series, you gain reliable performance, professional technical support, and a strong supply chain with competitive pricing.
Purchase details
- Free Online Product Selection Service
- Fast Quoting & Competitive pricing
- Min. order: 1 piece & 2-Year Warranty
- [email protected]
Description
Features
| Micro Motion T100T Straight Tube Coriolis Meter | 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish |
| Measurement Capabilities | Direct, in-line measurement of mass flow, density, concentration, volume flow, and temperature. |
| Construction Material | Titanium construction ensures compatibility with most fluids. |
| Connectivity | Wide range of transmitter offerings to meet connectivity needs. |
| Hygienic Applications | Improved 15 and 32 Ra surface, EHEDG certified, 3-A authorized, and ASME BPE compliant. |
| Certifications | CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR. |
| Cleaning Design | Easy to clean in place (CIP) and steam in place (SIP). |
| Installation | Robust design that requires no straight runs or flow conditioning. |
| Micro Motion 4200 2-Wire Transmitter | |
| Flow Accuracy | Up to ±0.10% mass flow accuracy for liquids/slurries, ±0.25% for gases. |
| Integrated Clock | Real-time clock for time-stamping process data and alerts. |
| Data Historian | Onboard audit trail for process issue determination. |
| Graphic Display | Supports 8 languages with software rotation to minimize downtime. |
| Device Replacement | Minimal effort to replace existing 2-wire flow devices without extra costs. |
| Plant Expansion | Easily expand your plant where power is not centrally located. |
| Smart Meter Verification | Quick assessment of meter calibration status. |
| SIL Certification | Certified for SIL2 single use and SIL3 multiple use safety applications. |
| Measurement Improvement | Accurate, repeatable mass measurement reduces the number of measurement devices needed. |
| Wireless Option | Wireless THUM™ option enhances installation and operational flexibility. |
