Part Number: PMC71-AAC1SBRHA3U+Z1

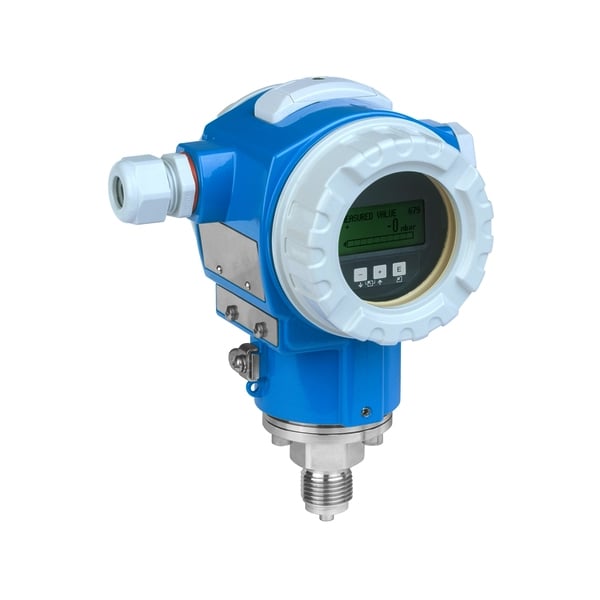

Model: Cerabar S PMC71 Pressure Transmitter
Manufacturer: Endress+Hauser
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | PMC71 | Absolute and gauge pressure Cerabar PMC71 |
| Approval | A | Non-hazardous area |
| Output; Operating | A | 4-20mA HART; extern + LCD |
| Housing; Cover Sealing; Cable Entry | C | T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover |
| Sensor Range; Sensor Overload Limit | 1S | 40bar/4MPa/600psi gauge; 60bar/6MPa/900psi |
| Calibration; Unit | B | **Customised; see additional spec. |
| Process Connection | RH | Thread ANSI FNPT1/2, 316L |
| Seal | A | FKM |
| Additional Option 1 | 3 | Individual test, test report |
| Additional Option 2 | U | Mounting bracket, wall/pipe, 316L |
| Marking | Z1 | Tagging (TAG), see additional spec. |
- Estimated Lead Time: 12 – 16 Weeks
- Shipping Weight: 8 Kg
