Part Number: PMD75-5A17BB1DABA+Z1

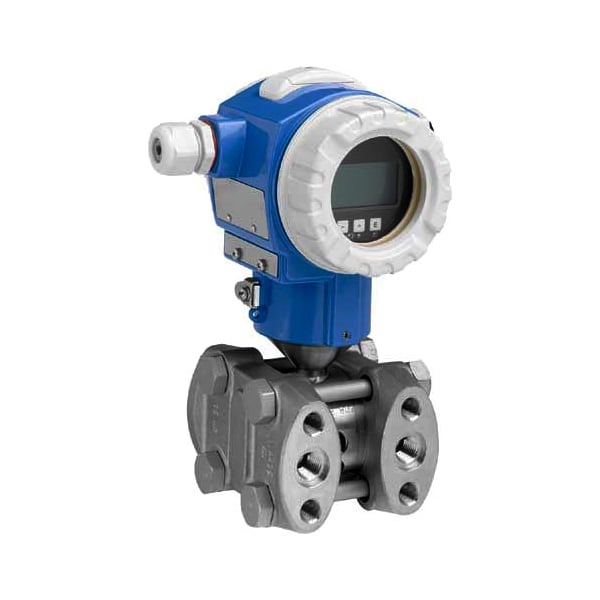

Model: Deltabar PMD75 Differential Pressure Transmitter
Brand: Endress+Hauser
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | PMD75 | Deltabar PMD75 Differential Pressure Transmitter |
| Approval | 5 | ATEX II 2G Ex db IIC T6 Gb |
| Output; Operating | A | 4-20mA HART; extern + LCD |
| Housing; Cover Sealing; Cable Entry | 1 | T14 316L IP66/67 NEMA6P; EPDM;M20 gland, T14 = side cover (Ex d > M20 thread) |
| Nominal Range; Cell Material; PN | 7B | 10mbar/1kPa/0.15psi; 316L; 160bar/ 16MPa/2400psi |
| Calibration; Unit | B | **Customised; see additional spec. |
| Membrane Material | 1 | 316L |
| Process Connection | D | NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L |
| Seal | A | FKM Viton |
| Additional Option 1 | B | 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate |
| Additional Option 2 | A | Not selected |
| Marking | Z1 | Tagging (TAG), see additional spec. |
- Estimated Lead Time: 12 – 16 Weeks
- Shipping Weight: 8 Kg
