Part Number: PMP71-1CA1HB1GAASU

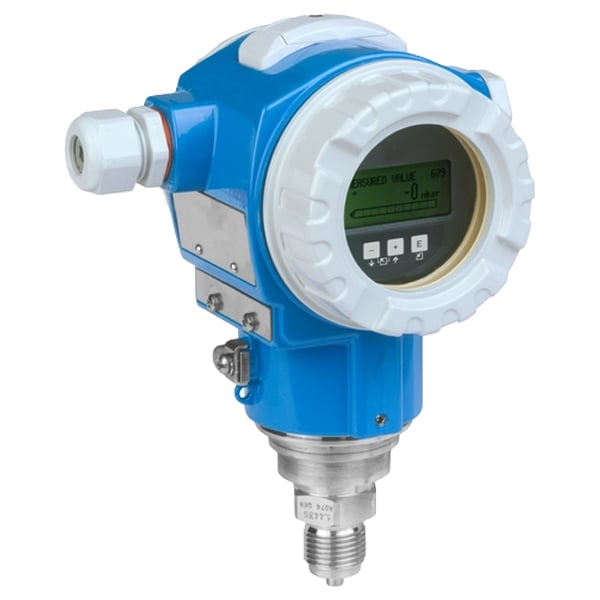

Model: Cerabar S PMP71 Pressure Transmitter
Brand: Endress+Hauser
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | PMP71 | Cerabar S PMP71 |
| Approval | 1 | ATEX II 1/2G Ex ia IIC T6 |
| Output; Operating | C | 4-20mA HART; inside |
| Housing; Cover Sealing; Cable Entry | A | T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread) |
| Sensor Range; Sensor Overload Limit | 1H | 1bar/100kPa/15psi gauge; 10bar/1MPa/150psi |
| Calibration; Unit | B | Customised; see additional spec. |
| Membrane Material | 1 | 316L |
| Process Connection | GA | Thread ISO228 G1/2 EN837, 316L |
| Fill Fluid | A | Silicone oil |
| Additional Option 1 | S | GL/ABS marine approval |
| Additional Option 2 | U | Mounting bracket, wall/pipe, 316L |
- Estimated Lead Time: 12 – 16 Weeks
- Shipping Weight: 5 Kg
