Part Number: PMP71-ABA1SC1GAABE

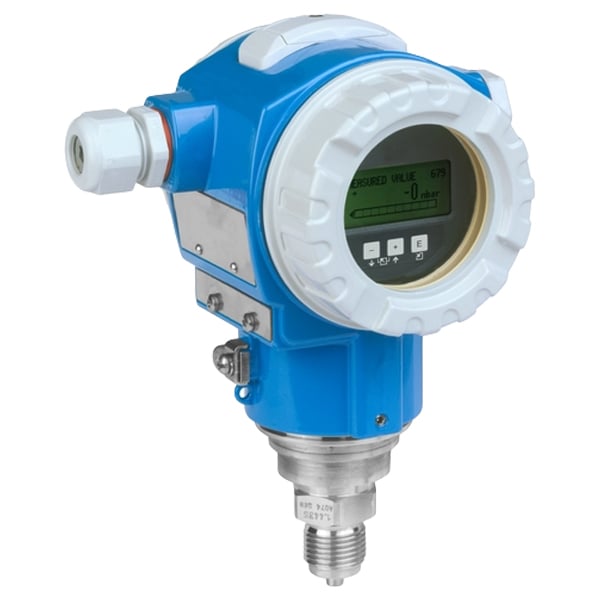

Model: Cerabar S PMP71 Pressure Transmitter
Brand: Endress+Hauser
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | PMP71 | Cerabar S PMP71 |
| Approval | A | Non-hazardous area |
| Output; Operating | B | 4-20mA HART; inside + LCD |
| Housing; Cover Sealing; Cable Entry | A | T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread) |
| Sensor Range; Sensor Overload Limit | 1S | 40bar/4MPa/600psi gauge; 160bar/16MPa/2400psi |
| Calibration; Unit | C | **Works calib. certificate 5-point; see additional spec. |
| Membrane Material | 1 | 316L |
| Process Connection | GA | Thread ISO228 G1/2 EN837, 316L |
| Fill Fluid | A | Silicone oil |
| Additional Option 1 | B | 3.1 material certificate, wetted metallic parts, EN10204-3.1 inspection certificate |
| Additional Option 2 | E | SIL |
- Estimated Lead Time: 12 – 16 Weeks
- Shipping Weight: 5 Kg
