Specifications
| Warranty | Up to 5-year limited warranty |
| Rangedown | Up to 150:1 |
| Communication Protocol | 4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART® |
| Measurement Range | Up to 20000 psig (1378.95 bar) gage Up to 20000 psia (1378.95 bar) absolute |
| Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400 |
| Diagnostics | Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications |
| Wireless Update Rate | 1 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Wireless Range | Internal antenna (225 m) |
Features

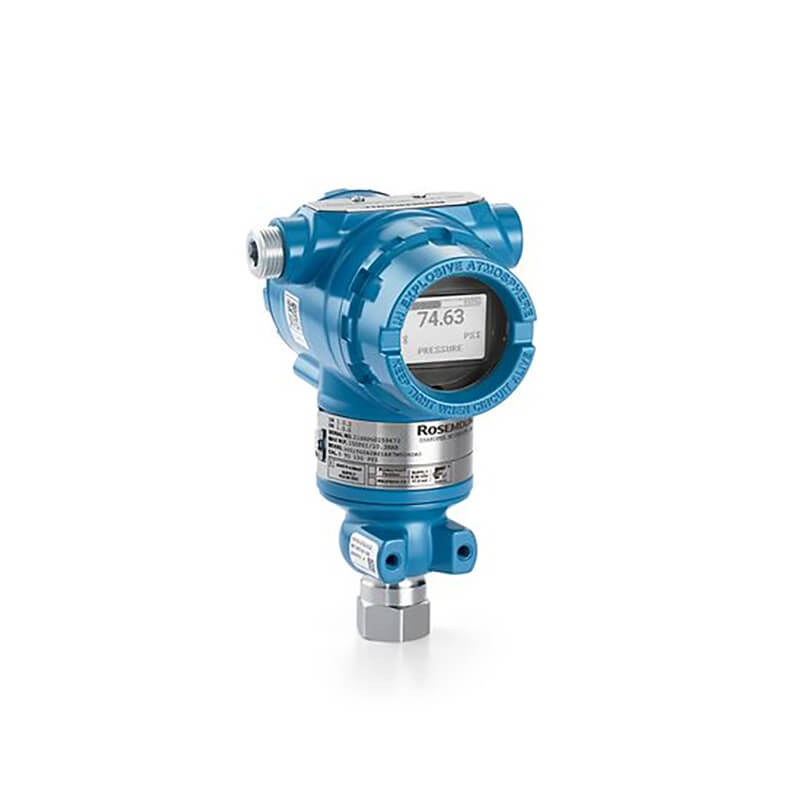

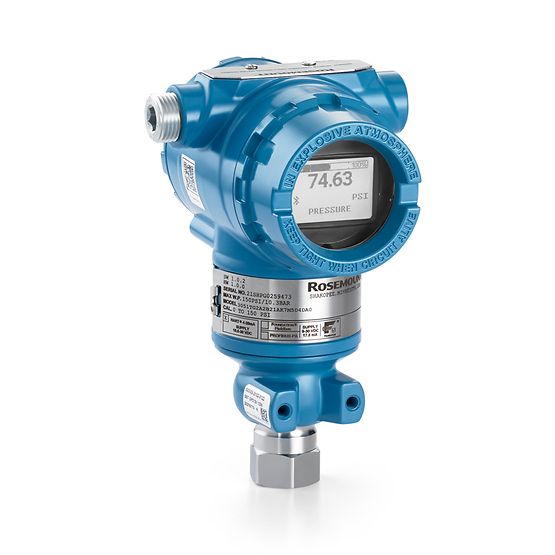

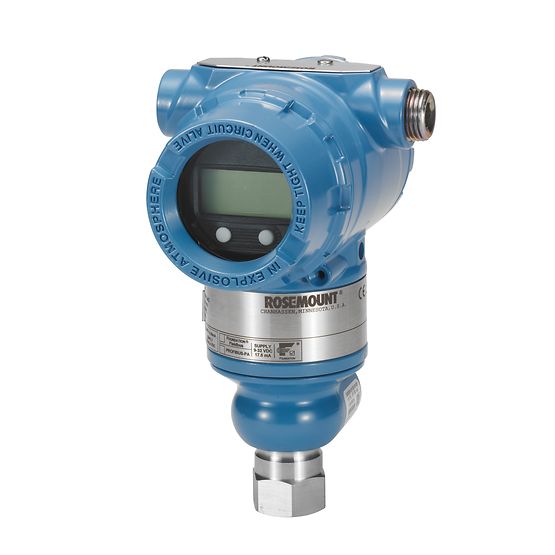

- In-line gage and absolute pressure measurements support up to 20,000 psi (1378,95 bar) for pressure or level solutions
- Application specific configuration allows you to transform your pressure transmitter into a level transmitter with volume calculations

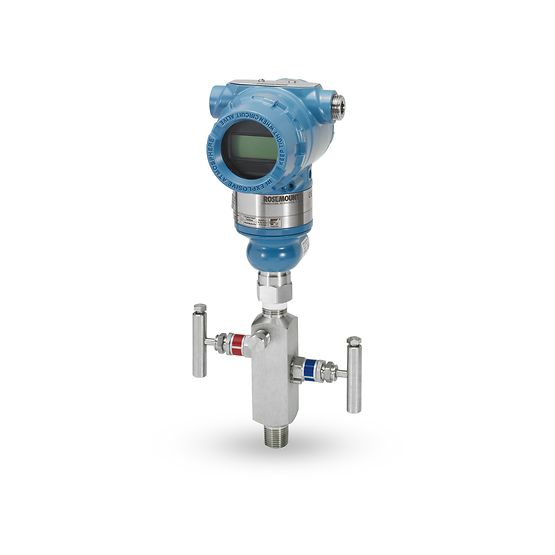

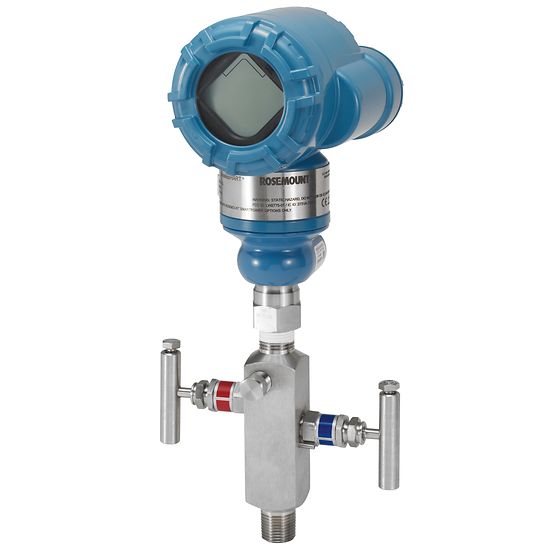

- Complete pressure or level assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
- 10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
- Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool
- The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions
- Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime
- Quick service buttons offer built-in configuration buttons for streamlined commissioning
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
- Wireless Features
- WirelessHART® technology is secure and cost-effective and delivers >99% data reliability

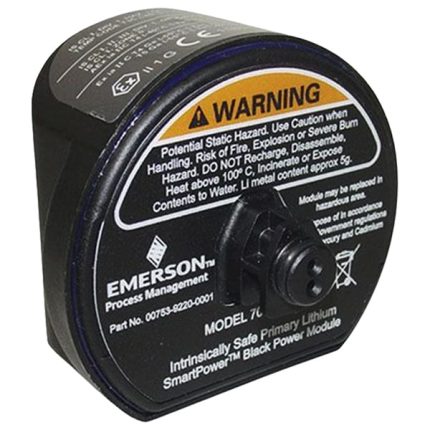

- SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
- Easy installation enables quick instrumentation of measurement points without the cost of wiring
