Specifications
- Warranty
- Up to 15-year limited warranty
- Rangedown
- Up to 200:1
- Communication Protocol
- 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus
- Measurement Range
- Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute
- Process Wetted Material
- 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
- Diagnostics
- Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line
- Certifications/Approvals
- SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications
- Wireless Update Rate
- 1 sec. to 60 min., user selectable
- Power Module Life
- Up to 10-year life, field replaceable (order separately)
- Wireless Range
- Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)
Features

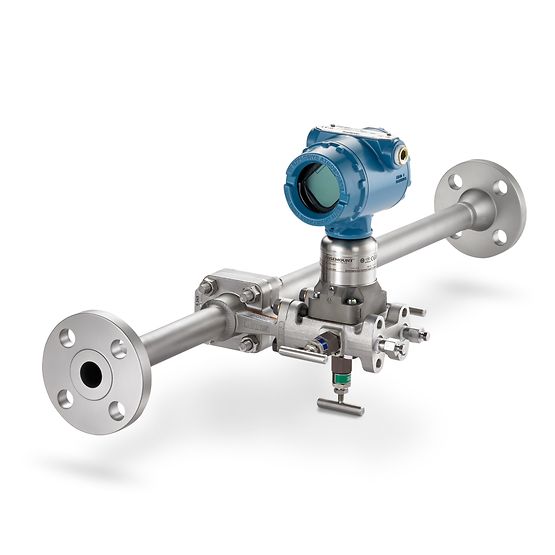

- Patented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solution
- Best-in-class, scalable architecture enhances performance, functionality and process connections
- Transmitter arrives fully assembled and leak tested for simple installation and maintenance
- All-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracy
- Ultra and Ultra for Flow performance classes deliver 15-year stability and 15-year limited warranty
- 200:1 rangedown produce reliable measurements and wide application flexibility
- Integrates seamlessly with 4-20 mA HART™, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibility
- SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
- Advanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditions
- Remote display and interface offers easy access to process and device information
- Wireless Features
- WirelessHART® technology is secure and cost-effective and delivers >99% data reliability
- SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
- Easy installation enables quick instrumentation of measurement points without the cost of wiring
