Product Description

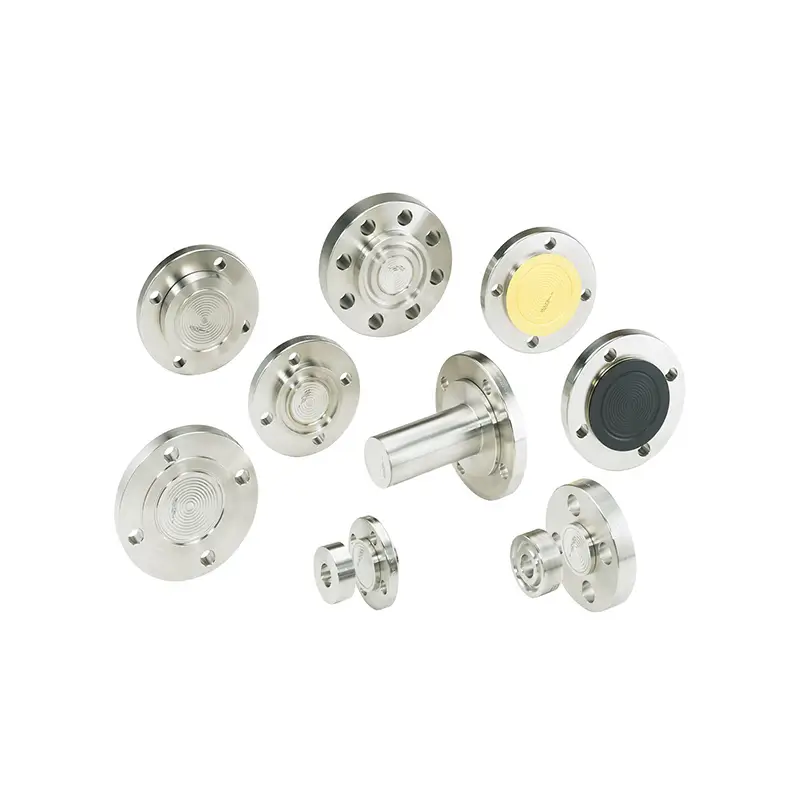

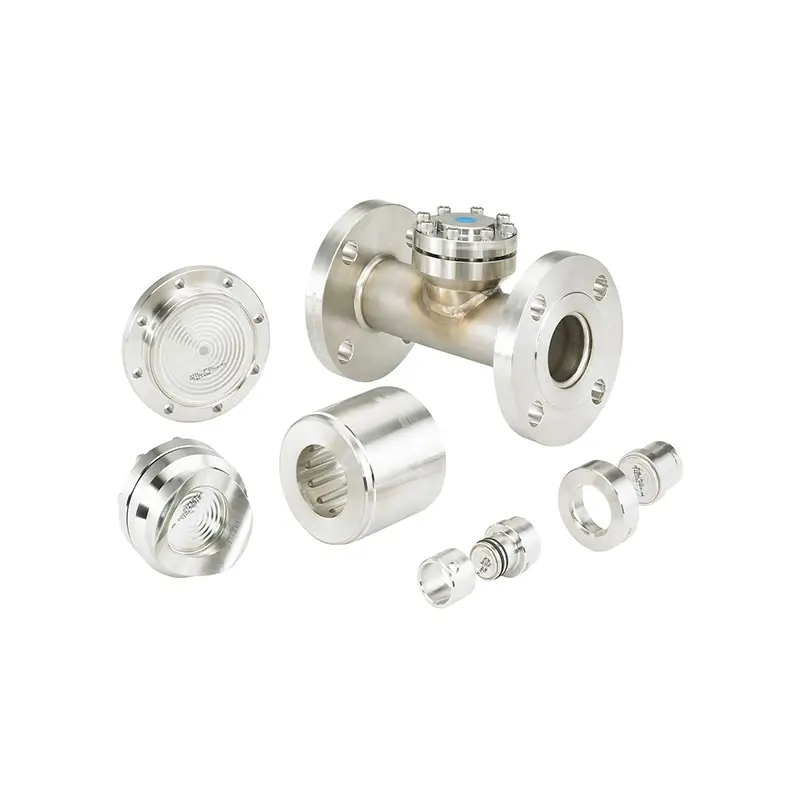

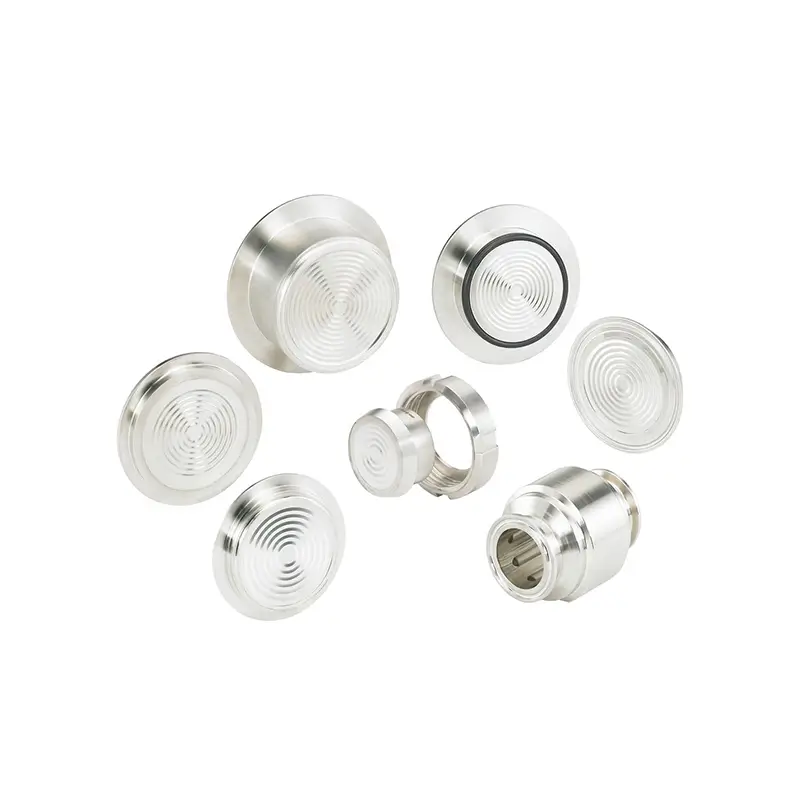

The Rosemount 1199 Diaphragm Seal System offers protection to transmitters, guarding against hot and cold, corrosive or erosive processes. This seal system features a variety of solutions, including industry-specific seals for difficult processes. This safety certified system does not require mounting hardware and can be used for many pressure measurement applications, providing reliable, remote measurements.
Specifications
| Category | Options/Specifications |
|---|---|
| Seal System Type | Direct Mount, Remote Mount, Tuned-System, Balanced System |
| Transmitter Connection | Welded-Repairable, All Welded |
| Process Connection | Flanged: ANSI/ASME, EN/DIN, GOST, & JIS Threaded: NPT, DIN, ISO Hygienic |
| Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST, CorrosionShield PFA coated 316 SST, see PDS for full list of materials |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, 3A, NACE®, hazardous location, see PDS for full list of certifications |
Features
- Protects transmitter diaphragm from corrosive, erosive or extreme temperature processes
- Wide variety of seals meet varying process requirements and specifications, including industry-specific applications
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
- Eliminates need for mounting hardware to reduce installation costs
- Adaptable direct mount gage or absolute seal system can be used for pressurized or vented tank applications
- Tuned-Systems can reduce temperature effects by 10-20% and improve response time by 80% vs. traditional installations
