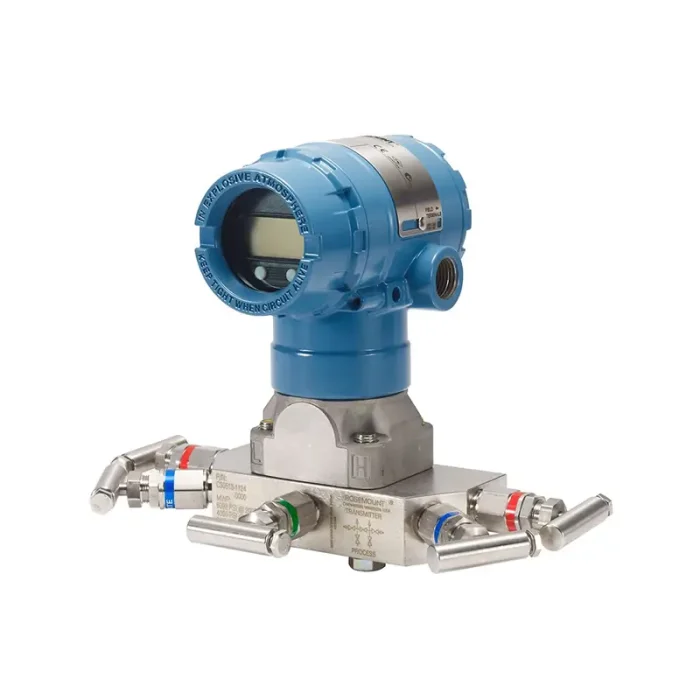

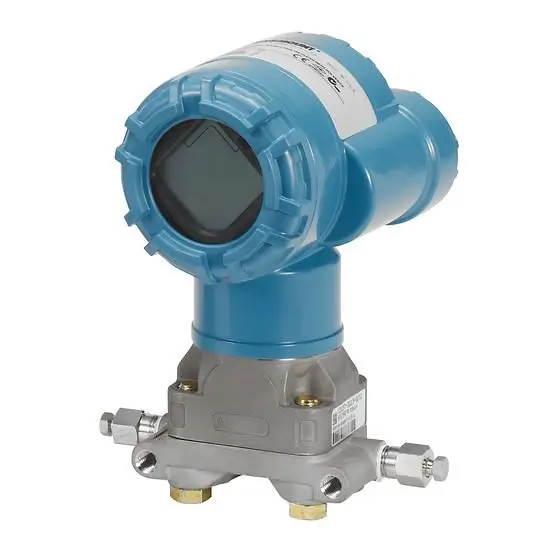

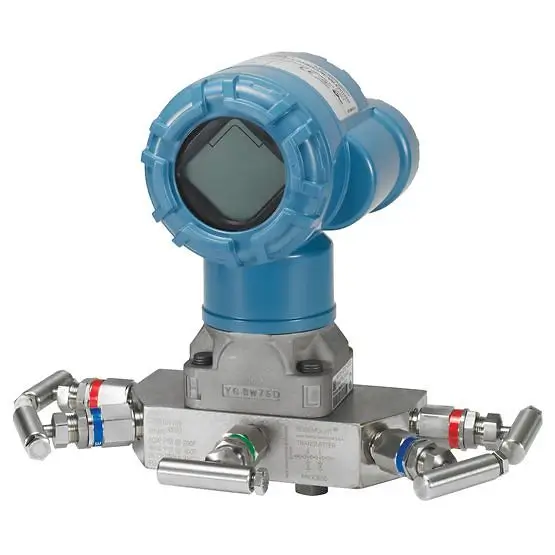

Specifications of Rosemount 2051C
| Reference Accuracy | Up to 0.05% of span |
| Warranty | Up to 5-year limited warranty |
| Rangedown | Up to 100:1 |
| Communication Protocol | 4-20 mA HART, WirelessHART, FOUNDATION Fieldbus, PROFIBUS, 1-5 V Low Power HART |
| Measurement Range | Up to 2000 psi (137.9 bar) Differential, Up to 2000 psig (137.9 bar) Gage |
| Process Wetted Material | 316L SST, Alloy C-276, Tantalum |
| Diagnostics | Basic Diagnostics |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications |
| Wireless Update Rate | 1 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Wireless Range | Internal antenna (225 m) |
Features
- Patented coplanar technology allows direct mounting for flow and level solutions that provide installation flexibility

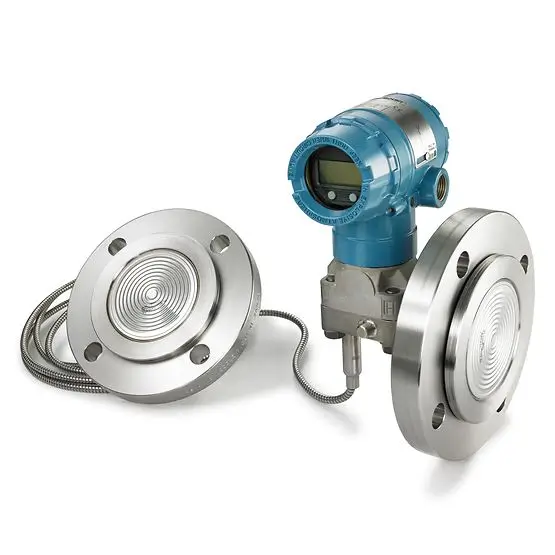

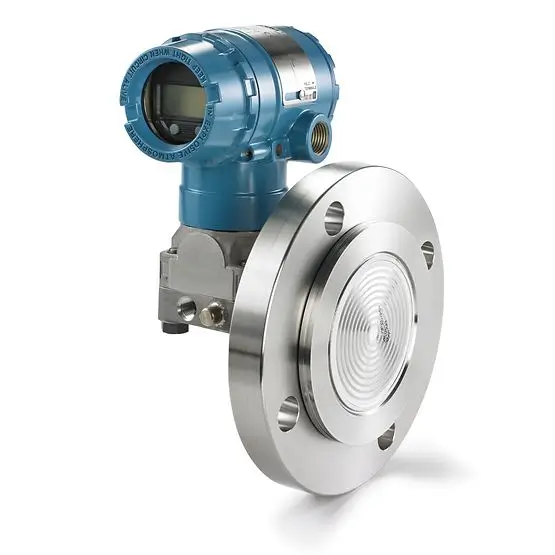

- Delivered fully assembled to manifolds, diaphragm seals or primary flow elements for straightforward installation
- Local Operator Interface offers easy-to-use menus and built-in configuration buttons for streamline commissioning
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations

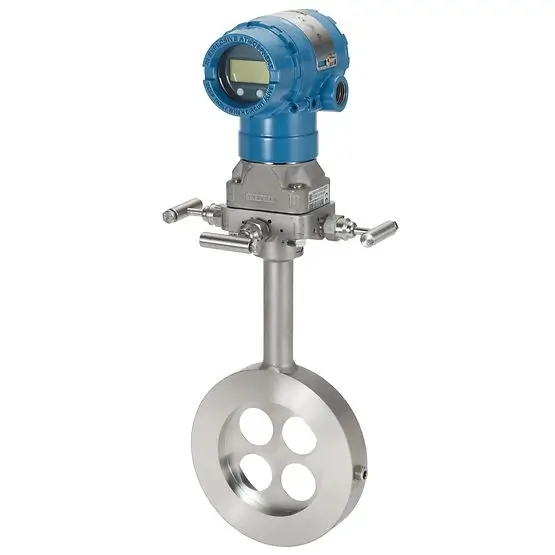

- Several primary elements provide a flow solution that is factory leak-tested and calibrated to simplify installation
- Wireless Features
- WirelessHART technology is secure and cost-effective and delivers >99% data reliability
- SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
- Easy installation enables quick instrumentation of measurement points without the cost of wiring
