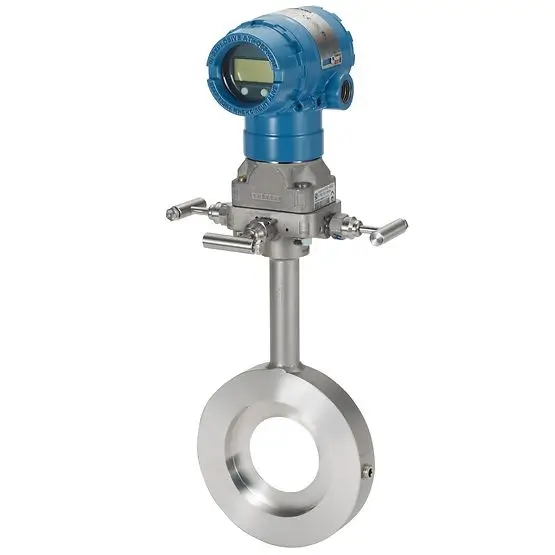

Specifications of Rosemount 2051CFC
| Warranty | Up to 5-year limited warranty |
| Range down | Up to 100:1 (5:1 flow turndown) |
| Measurement Range | Up to 1000 inH2O (2.48 bar) differential |
| Line Size | 0.5 to 12 in. (15 to 300 mm) |
| Output | Differential pressure, scaled variable |
| Communication Protocol | 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART® |
| Process Wetted Material | 316 SST |
| Diagnostics | Basic Diagnostics |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®, hazardous location, see full specs for complete list of certifications |
| Update Rate | 1 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Wireless Range | Internal antenna (225 m) |
Features
- Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
- Primary element design delivers reliable and accurate flow measurement for gas, liquid and steam service
- Orifice plate available in 0.5 – 12 in. (15 – 300 mm) line sizes for application flexibility
- Local operator interface offers easy-to-use menus and built-in configuration buttons for streamlined commissioning
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
- Patented 4-hole orifice plate design enables accurate flow measurement in turbulent flow profiles and requires only 2D upstream and downstream to reduce pipe straight-run requirements
- WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
- SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
- Easy installation enables quick instrumentation of measurement points without the cost of wiring
