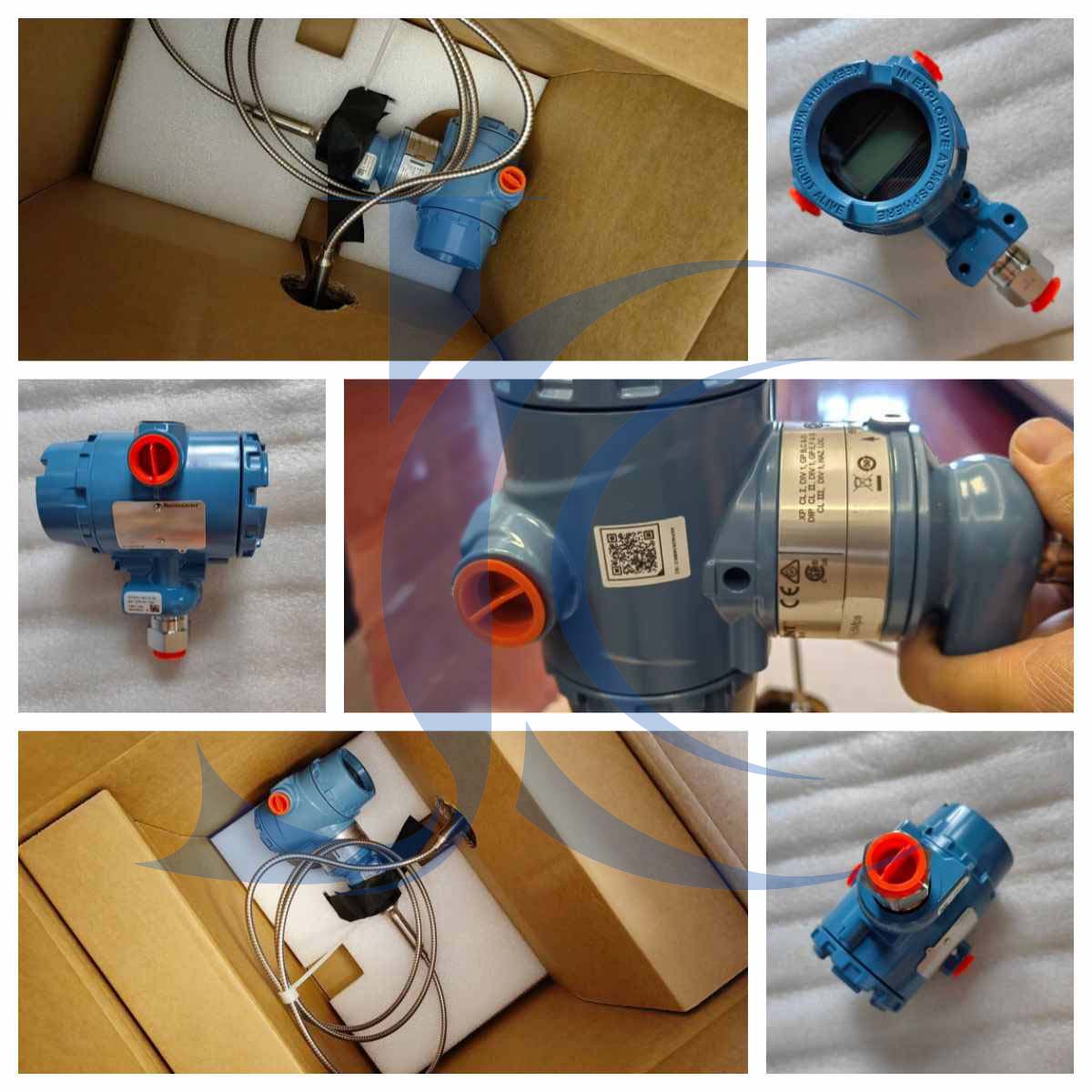

Rosemount 2051L Level Transmitter | Emerson Original High Quality 2051L Transmitter

Build your confidence with the dependable functionality of the Rosemount 2051L Level Transmitter, designed to deliver precise level measurements using a wide range of process connections, materials, and output protocols. This transmitter is certified for safety and supports Tuned-System™ Level assembly and direct installation. Featuring a Local Operator Interface (LOI), it simplifies on-site commissioning for effortless setup.

Purchase details

Specifications

Max. Operating Pressure	Up to 300 psi (20.68 bar)
Process Temperature Range	Based on fill fluid – Maximum 401°F (205°C), Minimum -157°F (-105°C)
Communication Protocol	4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART®
Seal System Type	Direct Mount, Tuned-System
Transmitter Connection	Welded-Repairable
Process Connection	Flanged: ANSI/ASME, EN/DIN, JIS
Process Wetted Material	316L SST, Alloy C-276, Tantalum
Diagnostics	Basic Diagnostics
Certifications/Approvals	SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®, hazardous location, see full specs for complete list of certifications

Features

Designed with a variety of process connections, materials and output protocols to meet diverse application requirements
Tuned-System Level assembly and direct mounting produce optimal performance for level applications
SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
Local Operator Interface (LOI) for simple, local commissioning on-site without the use of extra tools or training
Optimized seal system construction ensures a quality measurement in harsh process conditions
