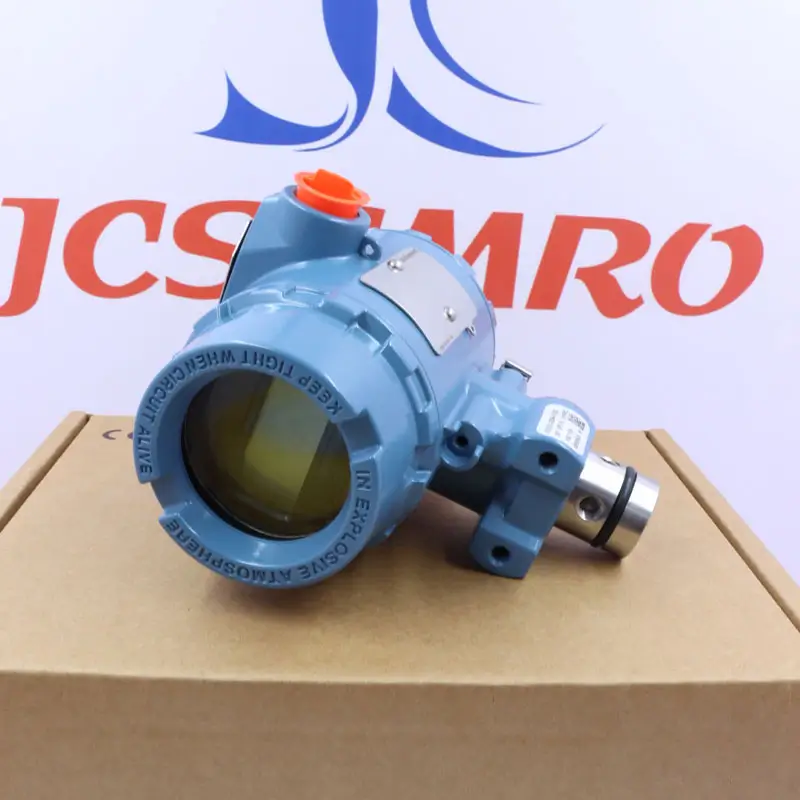

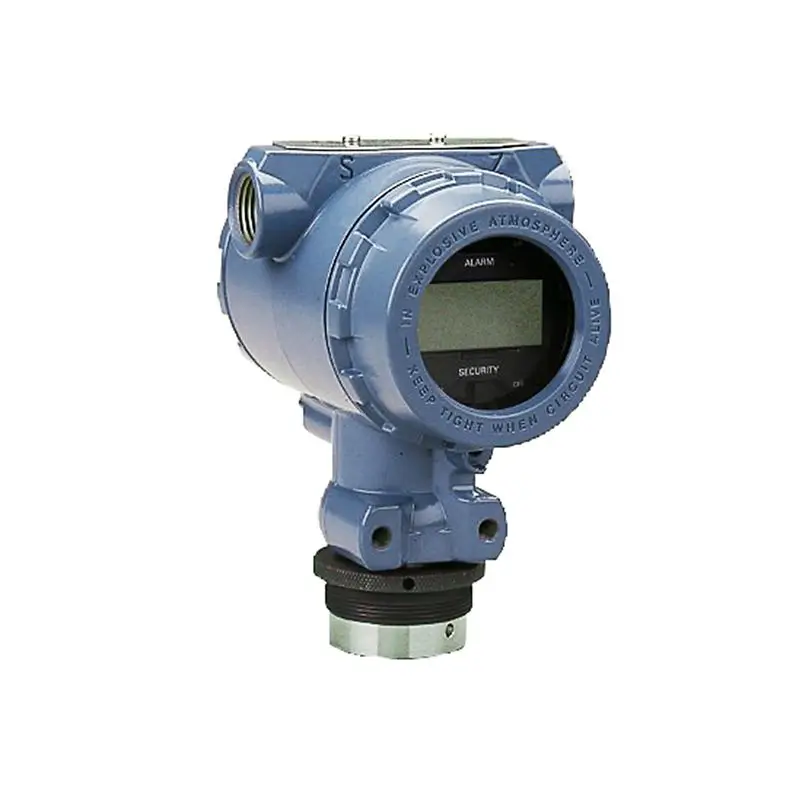

Specifications of Rosemount 2090P
| Warranty | Up to 5-year limited warranty |
| Rangedown | Up to 20:1 |
| Communication Protocol | 4-20 mA HART® |
| Measurement Range | Up to 300 psig (20,7 bar) Gage, Up to 300 psia (20,7 bar) Absolute |
| Process Wetted Material | 316L SST |
| Diagnostics | Basic Diagnostics |
| Certifications/Approvals | Hazardous location, see full specs for complete list of certifications |
Features of Rosemount 2090P
- 1 in. flush mount compatible with PMC process connection or 1 1/2 in. threaded mounting connection available
- Calibrates as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 300 psi (20.7 bar) for application flexibility
- Lightweight, compact design for easy installation
- Fully configurable LCD displays process variable, percent of range and diagnostic message
- Communicates via 4-20 mA HART® protocol for streamlined host integration
Products Models
| Product Name | Action |
|---|---|
| 2090PG2S22C1Q4 | GET A QUOTE |
