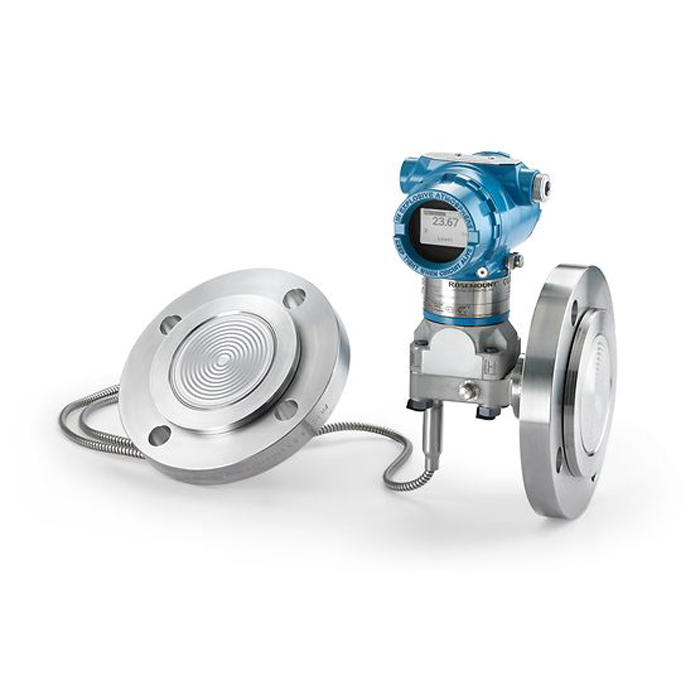

Rosemount 3051L Level Transmitter

The Rosemount 3051L Wireless Level Transmitter is a high-performance instrument designed for industrial applications, offering a 5-year warranty and up to 10-year power module lifespan. It withstands 300 psi working pressure and -105°C to 205°C temperature range, supports multiple communication protocols including HART®, WirelessHART®, Foundation Fieldbus, and PROFIBUS® PA, and features intelligent diagnostics with SIL 2/3 safety certification. With 225-meter wireless transmission range for remote monitoring needs, it serves as an ideal solution for tank level measurement in petroleum, chemical, power, and pharmaceutical industries.

Brand:Rosemount
Weight 5 kg
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description

Rosemount 3051L Level Transmitter | Premium Reliability for Critical Level Measurement

Direct mount or use a Tuned-System assembly that optimizes performance and reduces temperature effects by 10-20% for improved response time by over 80% versus traditional installations. Built-in diagnostics detect electrical loop issues and alert you to corrosion, water in the housing, or unstable power supply. Available with a graphical, back-lit display, Bluetooth® connectivity, Level specific configuration and enhanced software capabilities designed to access the data you need faster than ever before.

SpecificationsValue
WarrantyUp to 5-year limited warranty
Max. Operating PressureUp to 300 psi (20.68 bar)
Process Temperature RangeBased on fill fluid: Maximum 401°F (205°C), Minimum -157°F (-105°C)
Communication Protocol4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART®
Seal System TypeDirect Mount, Tuned-System
Transmitter ConnectionWelded-Repairable
Process ConnectionFlanged: ANSI/ASME, EN/DIN, JIS
Process Wetted Material316L SST, Alloy C-276, Tantalum
DiagnosticsBasic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics
Certifications/ApprovalsSIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®, hazardous location, see full specs for complete list of certifications
Wireless Update Rate1 sec. to 60 min., user selectable
Power Module LifeUp to 10-year life, field replaceable (order separately)
Wireless RangeInternal antenna (225 m)

Products Models

Product Name Action
12
FEATURES
  • Tuned-System Level assembly and direct mounting produce optimal performance for level applications
  • Application specific configuration allows you to transform your pressure transmitter into a level transmitter with volume calculations
  • Complete level assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
  • 10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
  • Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool
  • The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions
  • Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime
  • Quick service buttons offer built-in configuration buttons for streamlined commissioning
  • SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
  • Wireless Features
    • WirelessHART® technology is secure and cost-effective and delivers >99% data reliability
    • SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
    • Easy installation enables quick instrumentation of measurement points without the cost of wiring
