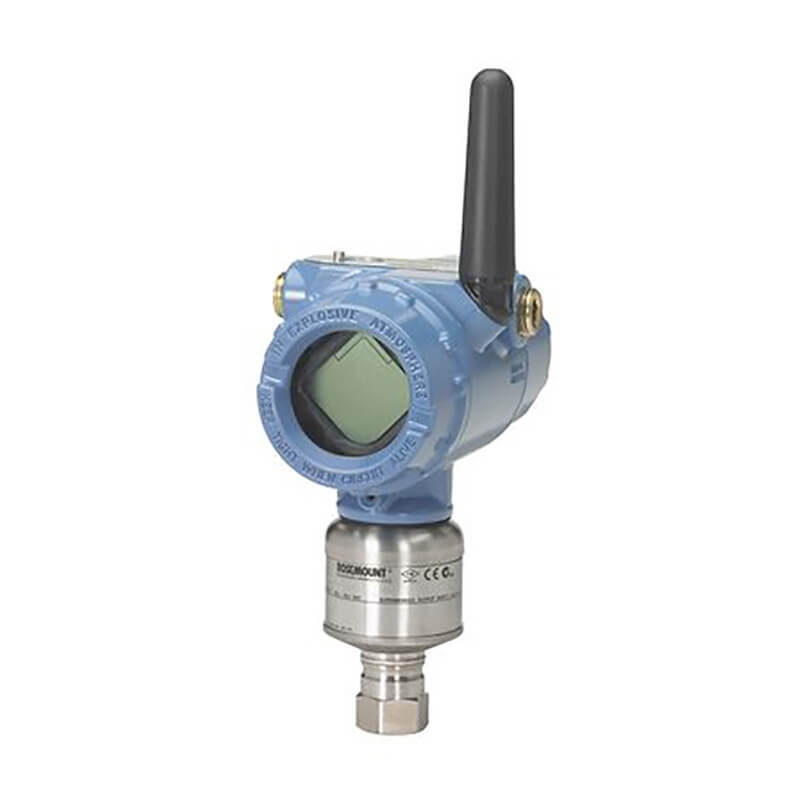

Specifications of Rosemount 3051S Wireless In-Line Pressure Transmitter
| Warranty | Up to 15-year limited warranty |
| Rangedown | Up to 200:1 |
| Communication Protocol | WirelessHART® |
| Measurement Range | Up to 10,000 psi (689.47 bar) Gage, Up to 10,000 psia (689.47 bar) Absolute |
| Process Wetted Material | 316L SST, Alloy C-276 |
| Diagnostics | Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line |
| Certifications/Approvals | NSF, NACE, hazardous location, see full specs for complete list of certifications |
| Update Rate | 1 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Wireless Range | Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km) |
Features
- No-equal, scalable architecture optimizes performance, functionality and process connections
- WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
- Designed with direct threaded connections or manifolds and remote seals for a quick and cost-effective installation
- Ultra and Classic Performance classes provide accuracy up to 0.025% of span
- 15-year stability and 200:1 rangedown produce reliable measurements and wide application flexibility
- Piezoresistive sensor technology allows calibrated spans from 0.3 to 10000 psi (20.7 mbar to 689 bar)
- 15-year warranty for worry-free operation
- SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
- Easy installation enables quick instrumentation of measurement points without the cost of wiring
