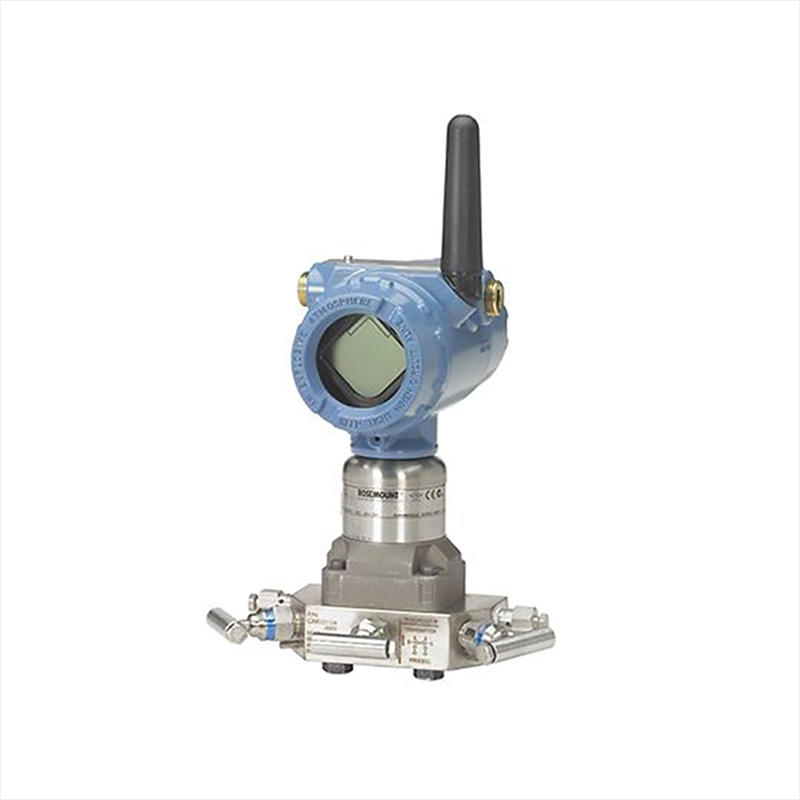

Specifications of Rosemount 3051S Wireless MultiVariable Transmitter
| Warranty | Up to 15-year limited warranty |
| Rangedown | Up to 200:1 |
| Communication Protocol | WirelessHART |
| Output | Differential pressure, static pressure, module temperature, scaled variable |
| Measurement Range | Up to 2000 psi (138 bar) differential, Up to 6092 psi (420 bar) static |
| Process Wetted Material | 316L SST, Alloy C-276, Tantalum, Gold-plated 316L SST |
| Diagnostics | Basic Diagnostics |
| Certifications/Approvals | NSF, NACE®, hazardous location, see full specs for complete list of certifications |
| Update Rate | 1 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Wireless Range | Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km) |
Features
- WirelessHART technology is secure, cost-effective and delivers >99% data reliability
- Measures multiple variables and standardizes on a single model number for streamline process and cost-efficiency
- Reduces costs by eliminating the need for stacked transmitters and wiring
- Primary elements available as assemble-to options for simple installation and commissioning
- Multivariable design reduces pipe penetrations, impulse piping and connection systems for cost-savings
- All-welded, SuperModule™ design offers industry-leading accuracy in harsh environments and applications
- Ultra for Flow provides optimized pressure measurement with a ±0.04% of reading accuracy
- SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
- Easy installation enables quick instrumentation of measurement points without the cost of wiring
