Product Description

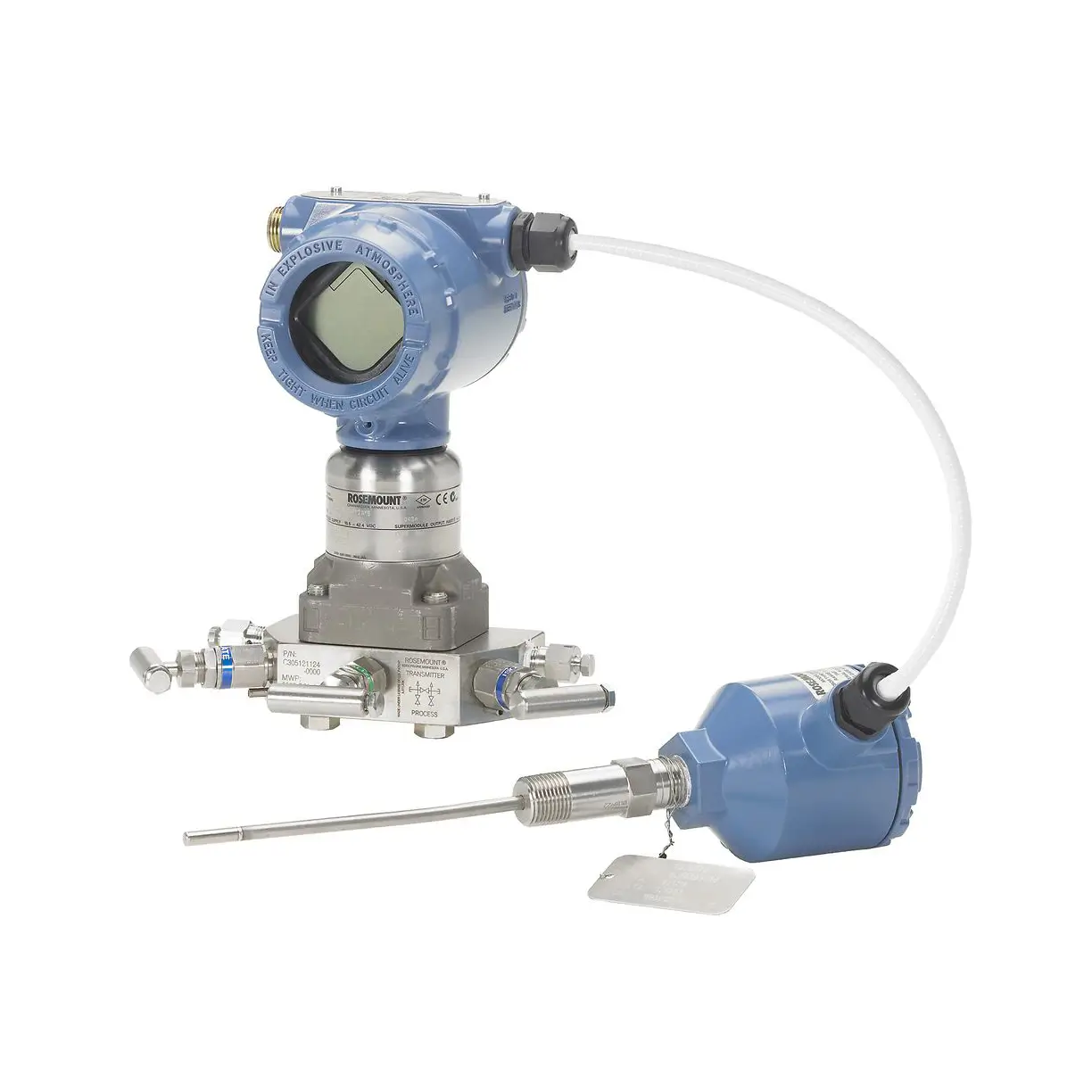

The Rosemount 3051S MultiVariable Transmitter(Rosemount 3051SMV) is a best-in-class solution customized to obtain measurement combinations of differential pressure, static pressure and process temperature. This multivariable transmitter is a cost-effective device that reduces pipe penetrations, impulse piping and connection systems. This device is also engineered with built-in flow calculations for fully compensated mass flow measurements.
Specifications
| Warranty | Up to 15-year limited warranty |
| RangeDown | Up to 200:1 |
| Communication Protocol | 4-20 mA HART™, WirelessHART®, FOUNDATION™ Fieldbus |
| Measurement Range | Up to 2000 psi (138 bar) differential, Up to 6092 psi (420 bar) static |
| Process Wetted Material | 316L SST, Alloy C-276, Tantalum, Gold-plated 316L SST |
| Diagnostics | Basic Diagnostics |
| Certifications/Approvals | NSF, NACE™, hazardous location, see full specs for complete list of certifications |
Features
- Measures multiple variables and standardizes on a single model number for streamline process and cost-efficiency
- Reduces costs by eliminating the need for stacked transmitters and additional wiring
- Primary elements available as assemble-to options for simple installation and commissioning
- Multivariable design reduces pipe penetrations, impulse piping and connection systems for cost-savings
- Callendar-Van Dusen sensor matching improves temperature accuracy enabling best-in-class flow calculations
- All-welded, SuperModule™ design offers industry-leading accuracy in harsh environments and applications
- Engineering Assistant Software allows for configuration in two easy steps
- Ultra for Flow provides optimized flow readings with a ±0.04% of reading accuracy
- Designed with built-in flow calculations for direct reporting of fully-compensated mass, energy or volumentric flow
