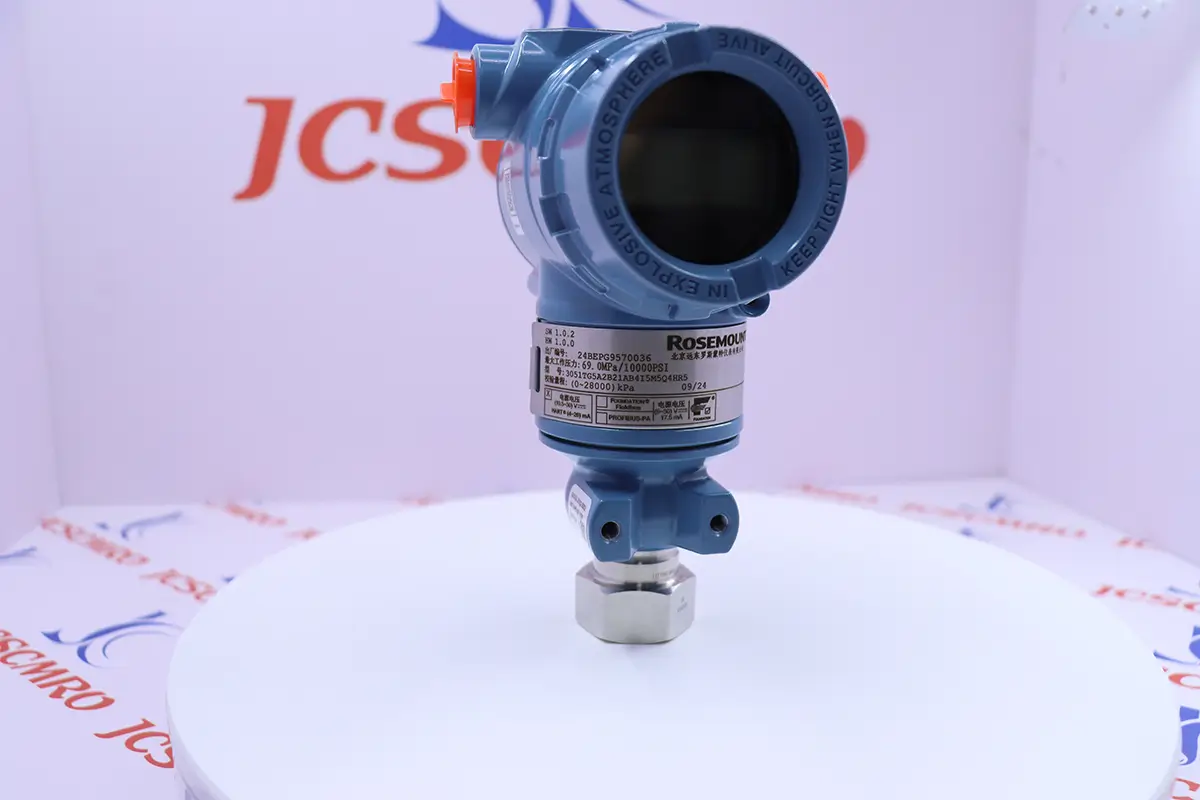

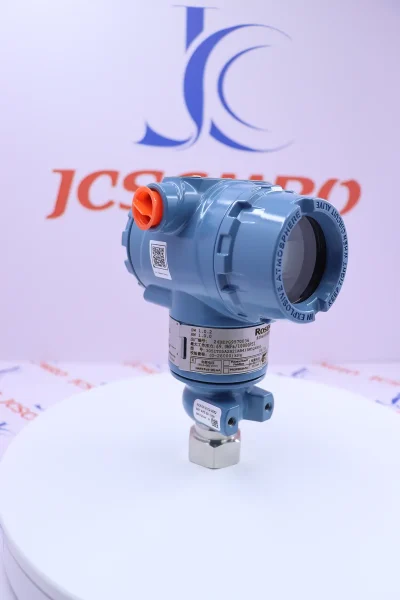

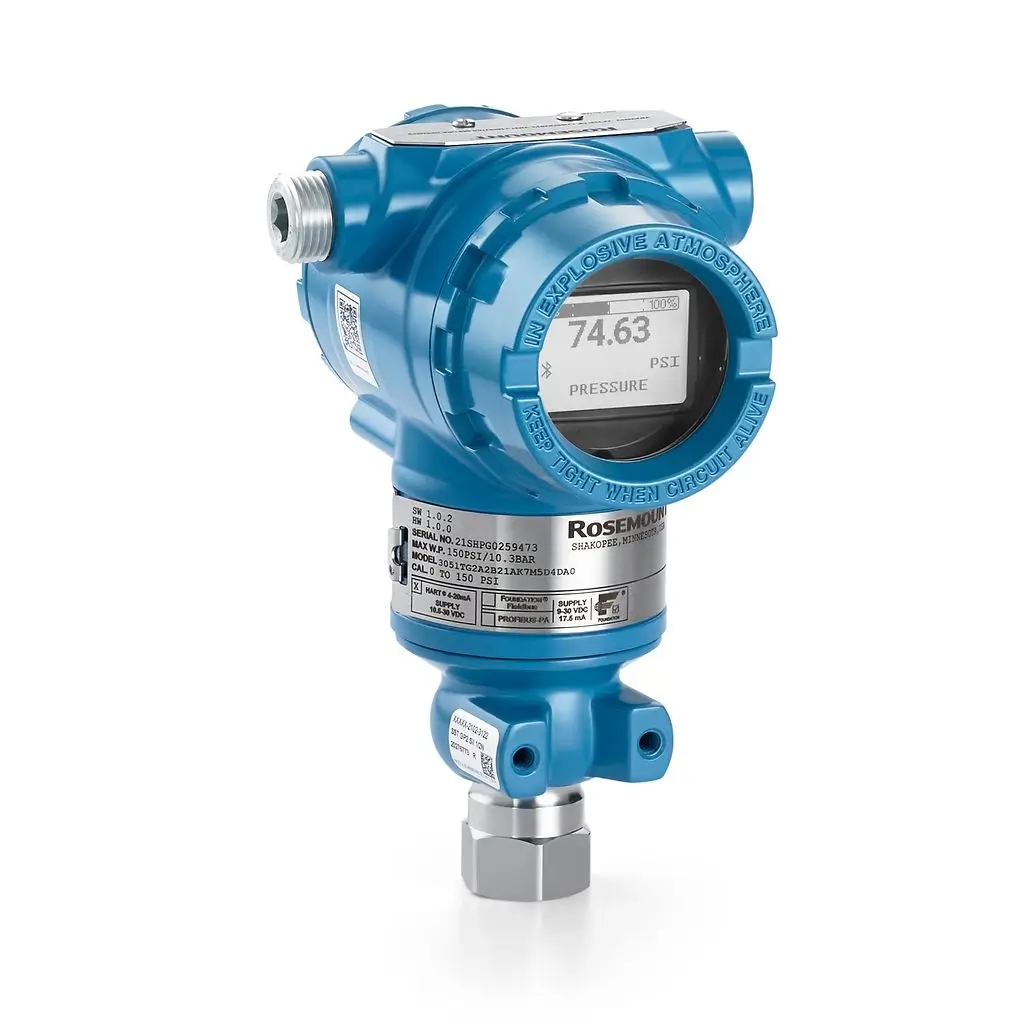

Rosemount 3051T Pressure Transmitter | 3051 series

The Rosemount 3051T in-line pressure transmitter is widely used for absolute and gauge measurements across process industries. The transmitter combines advanced electronics technologies as well as sensor designs to provide accurate and reliable performance in various process environments. The rugged construction of the transmitter is the characteristic of the transmitters from the Rosemount 3051 family.

Features of Rosemount 3051T In-Line Pressure Transmitter

The Rosemount pressure transmitter 3051T has gained immense popularity in recent years owing to their typical features such as:

• High Level of Accuracy and Stability Guaranteed: The Rosemount 3051T pressure transmitter is powered by advanced sensor technology, which helps maintain a reference accuracy of 0.0065% span. This accuracy aids in boosting the overall process efficiency. In addition to this, the transmitter offers installed five-year stability of ±0.125% and 150:1 rangedown. This stability is demonstrated for demanding process applications. This combination of accuracy and stability assures safety and reduction in operating and maintenance costs.
• Compact Design: This design makes it easy to connect the transmitter to a process. The in-line, no-seal design also aids in quick installation, thereby saving users from huge installation costs incurred on other models. Being lightweight, the transmitter is easy-to-handle and manage.
• Assures Rugged Construction: The Rosemount 3051T pressure transmitter is made of materials that comply with NACE MR0175. This construction enables them to withstand harsh working environments.
• Suited for a Wide Range of Absolute and Gage Measurements: The Rosemount 3051T pressure transmitters can be configured to meet a wide range of absolute and gage pressure measurements. For instance, Rosemount 3051TA is an absolute pressure transmitter, and Rosemount 3051TG is a gauge pressure transmitter.
  • • Rosemount 3051TG can be configured for the following pressure ranges.
      • –14.7 to 30 psi (–1,01 to 2,06 bar)
      • –14.7 to 150 psi (–1,01 to 10,34 bar)
      • –14.7 to 800 psi (–1,01 to 55,15 bar)
      • –14.7 to 4000 psi (–1,01 to 275,79 bar)
      • –14.7 to 10000 psi (–1,01 to 689,47 bar)
      • –14.7 to 20000 psi (–1,01 to 1378,95 bar)
