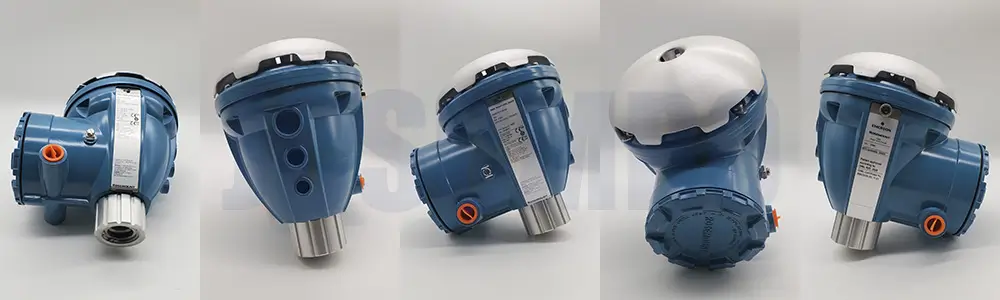

Specifications—Rosemount 5900c Radar Level Gauge
Accuracy | ± 1mm (0.04 in.), ± 2mm (0.08 in.) |
Stability | Typically < ± 0.5 mm (0.020 in.) in -40 to +70 °C (-40 to +158 °F) |
Update Rate | New measurement every 0.3 second |
Communication Protocol | Foundation™ Fieldbus for connection to Rosemount 2410 with self-configuring Tankbus or any Foundation™ Fieldbus host system |
Wireless Communication | Rosemount 5900 level gauge combined with 2410 Tank Hub enables wireless communication and emulation of other manufacturers’ gauges |
Safety | • SIL 2 certified • TÜV tested and WHG approved for overfill prevention |
Emulation Capability | Possible to integrate with legacy tank gauging systems |
Power Supply | • FISCO: 9.0 – 17.5 VDC polarity insensitive (for example from 2410 Tank Hub) • Entity: 9.0 – 30.0 VDC polarity insensitive |
Ambient Temperature | -40 to +70 °C (-40 to +158 °F). Minimum start-up temperature is -50 °C (-58 °F) |
Antenna Type | Parabolic antenna, still-pipe array antenna, cone antenna, LPG/LNG antenna, 1- and 2-in. still-pipe antennas |

ROSEMONT 5900
