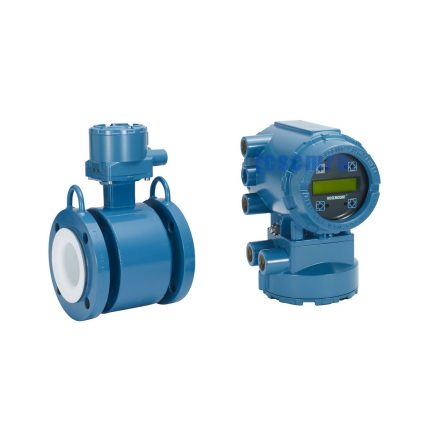

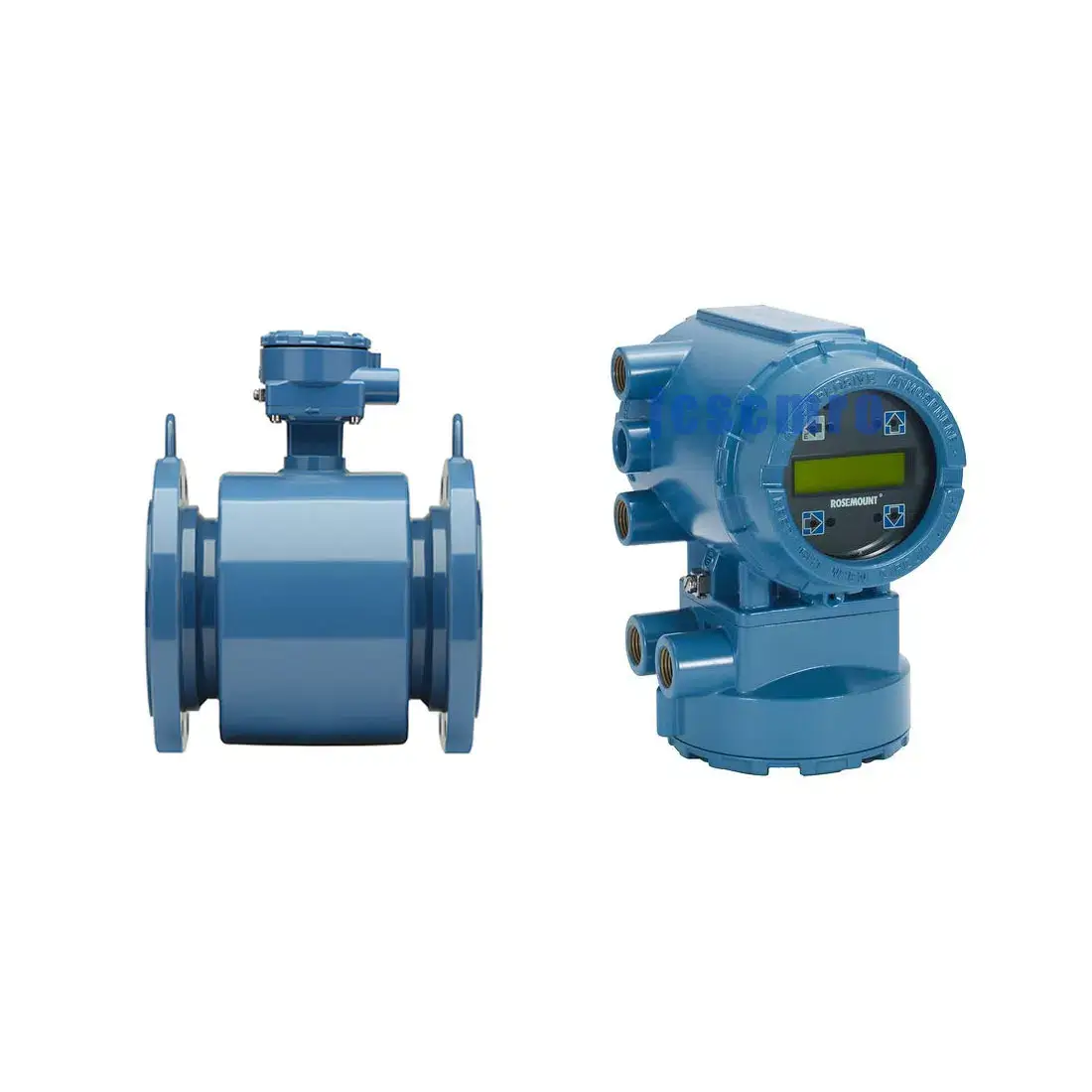

Rosemount 8732E Transmitter | Field Mount Magnetic Flow Meter Transmitter

Specifications

Sensor compatibility	Compatible with Rosemount 8705, 8711, and 8721 sensors. Compatible with AC and DC powered sensors of other manufacturers.
Transmitter coil drive current	500mA
Flow rate range	Capable of processing signals from fluids traveling between 0.04 and 39 ft/s (0.01 to 12 m/s) for both forward and reverse flow in all sensor sizes. Full scale continuously adjustable between –39 and 39 ft/s (–12 to 12 m/s).
Conductivity limits	Process liquid must have a conductivity of 5 microSiemens/cm (5 micromhos/cm) or greater.
Power supply	90 – 250VAC, 50/60Hz 12 – 42VDC
Line power fuses	90-250VAC systems: 1A, 250V, I2t, 1.5 A2s Rating, Fast Acting Bussman AGC-1, Littlefuse 31201.5HXP12-42VDC systems: 3 Amp, 250V, I2t, 14 A2s Rating, Fast Acting Bel Fuse 3AG 3-R, Littelfuse 312003P, Schurter 0034.5135
Line power fuses (maximum)	15W – DC 40VA – AC
Switch-on current	AC: Maximum 35.7A (< 5ms) at 250VAC DC: Maximum 42A (< 5ms) at 42VDC
