| Specifications | |
| Rosemount 8705200 Flanged Magnetic Flow Meter Sensor, 20 Inch (DN500) | |
| Accuracy | Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown |
| Line Sizes | ½-36 inch (15-900 mm) |
| Liner Materials | PTFE, ETFE, PFA, Polyurethane, Neoprene, Linatex Natural Rubber, Consult factory for additional material options |
| Electrode Materials | ASME B16.5 Class 150-2500 DIN PN 10-40 AS 2129 Table D and E AWWA C207 Table 3 Class D (30-36 inch only) |
| Rosemount 8732E Field Mount Magnetic Flow Meter Transmitters | |
| Sensor compatibility | Compatible with Rosemount 8705, 8711, and 8721 sensors. Compatible with AC and DC powered sensors of other manufacturers. |
| Transmitter coil drive current | 500mA |
| Flow rate range | Capable of processing signals from fluids that are traveling between 0.04 and 39 ft/s (0.01 to 12 m/s) for both forward and reverse flow in all sensor sizes. Full scale continuously adjustable between –39 and 39 ft/s (–12 to 12 m/s). |
| Conductivity limits | Process liquid must have a conductivity of 5 microSiemens/cm (5 micromhos/cm) or greater. |
| Power supply | 90 – 250VAC, 50/60Hz or 12 – 42VDC |
| Line power fuses | 90-250VAC systems
12-42VDC systems
15W maximum – DC 40VA maximum – AC |
| Switch-on current | AC: Maximum 35.7A (< 5ms) at 250VAC
DC: Maximum 42A (< 5ms) at 42VDC |

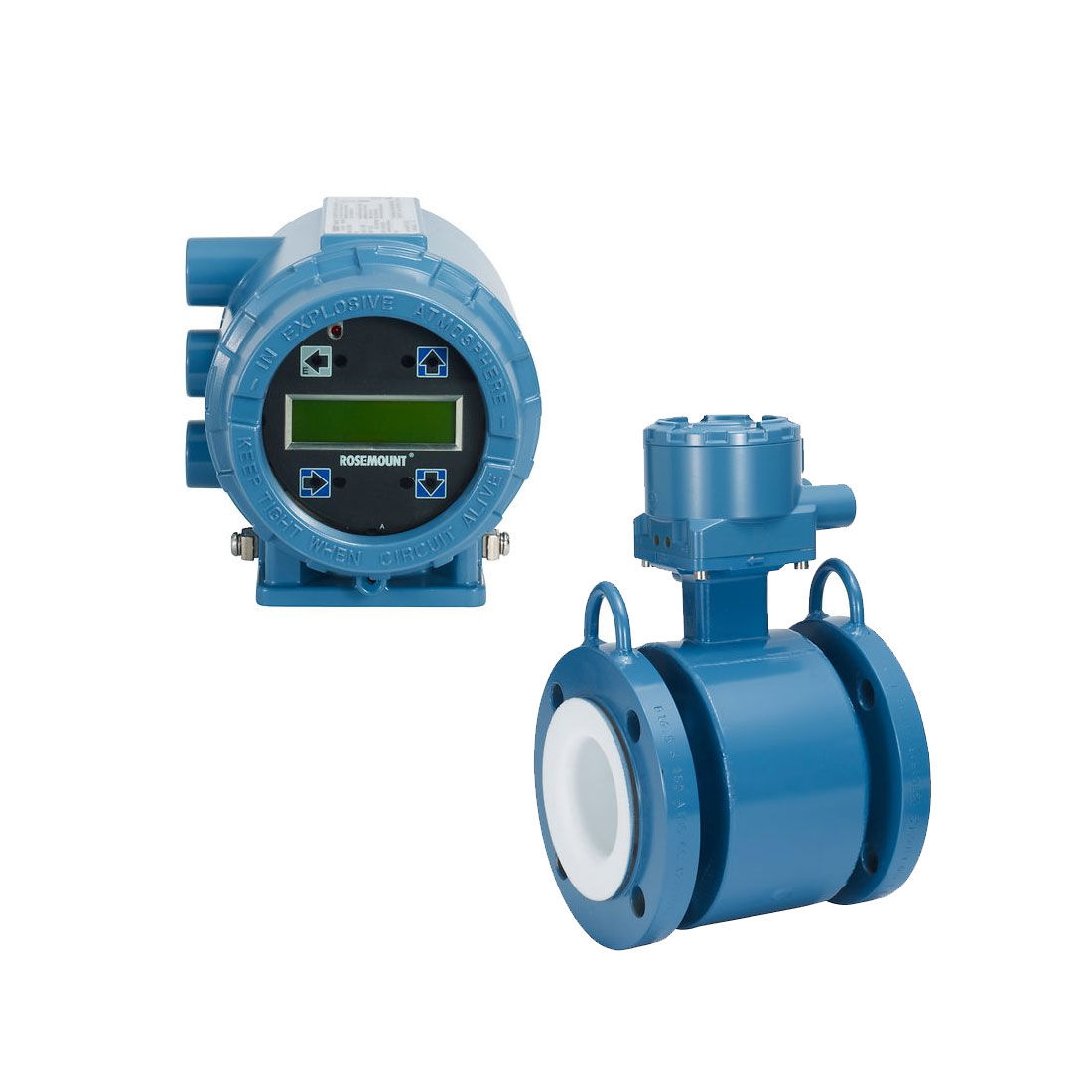

Rosemount 8732E Transmitter and 8705200 Sensor | Flanged Magnetic Flow Meter
$1,100.00
Rosemount 8732E: A dual-compartment transmitter housing provides isolation from the external environment. Advanced diagnostics and through-the-glass Local Operator Interface offer unparalleled process insight.
Brand:Rosemount
Purchase details
- Free Online Product Selection Service
- Fast Quoting & Competitive pricing
- Min. order: 1 piece & 2-Year Warranty
- [email protected]
Description
FEATURES
Rosemount 8705200 Flanged Magnetic Flow Meter Sensor, 20 Inch (DN500)
- For maximum protection, a fully welded sensor housing provides a hermetic seal
- Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field
- Capture any potential process fluid leakage with optional secondary containment compartments to surround electrodes
- Ensure reliability in the harshest environments with an all-welded sensor housing
- Guard against installation damage and leading-edge wear with an optional lining protector
- Minimize maintenance and repair with an obstructionless design featuring no moving parts
Rosemount 8732E Field Mount Magnetic Flow Meter Transmitters
- Continually monitor meter health and performance without stopping the process with Smart Meter Verification
- Prevent moisture ingress with dual-compartment transmitter housing
- Improve process management with advanced Digital Signal Processing
- Optimize control in noisy applications with High Process Noise diagnostic and Selectable Coil Drive Frequency options
- Tunable Empty Pipe diagnostic minimizes issues and false readings when the pipe is empty
- Quickly verify installation integrity with Ground and Wiring Fault Detection diagnostic
- Simplify adjustments in hazardous environments without removing the cover using optical switches for configuration
- Universal transmitter capabilities enable reduced inventory and consistent interface for any magnetic flow meter sensor
