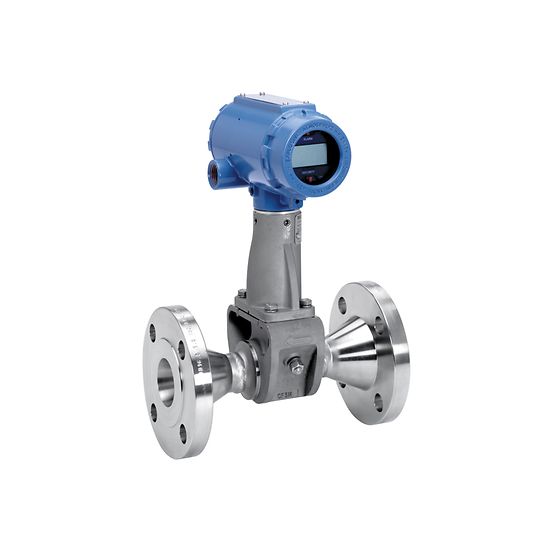

Rosemount 8800 Reducer Vortex Flow Meters

$2,300.00pc

The Rosemount 8800 Reducer Vortex Flow Meter utilizes the trusted electronics, sensor, and meter body of the Rosemount 8800 Series while harnessing the benefits of integral reducers to accurately measure lower flow rates.

Brand:Rosemount
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tag:
Description

The Rosemount 8800 Reducer Vortex Flow Meter utilizes the trusted electronics, sensor, and meter body of the Rosemount 8800 Series while harnessing the benefits of integral reducers to accurately measure lower flow rates. This design eliminates field assembly and welding of separate reducers and piping, thereby greatly reducing installation costs and project risk. Additionally, the face-to-face dimensions of the Rosemount 8800 Reducer match that of the traditional Rosemount 8800 Series for ultimate versatility.







Specifications
Flow Meter Accuracy
  • ± 0.70% of mass flow rate in water using 8800 MultiVariable (MTA/MCA option)
  • ± 2% of mass flow in steam using 8800 MultiVariable (MTA/MCA option)
  • ± 1.3% of rate at 30 psia through 2,000 psia in steam using 8800 MultiVariable (MPA option)
  • ± 1.2% of rate at 150 psia in steam using 8800 MultiVariable (MCA option)
  • ± 1.3% of rate at 300 psia in steam using 8800 MultiVariable (MCA option)
  • ± 1.6% of rate at 800 psia in steam using 8800 MultiVariable (MCA option)
  • ± 2.5% of rate at 2,000 psia in steam using 8800 MultiVariable (MCA option)
  • ± 0.65% of volumetric rate for liquids (uncompensated)
  • ± 1% of volumetric rate for gas and steam (uncompensated)
Turndown 38:1
Output
  • 4-20 mA with HART® 5 or 7
  • 4-20 mA with HART® 5 or 7 and scalable pulse output
  • FOUNDATION fieldbus ITK6 with 2 Analog Input blocks, 1 Backup Link Active Scheduler function block, 1 Integrator function block, and 1 PID function block
  • Modbus RS-485 with device status and 4 variables
Wetted Material
  • Stainless Steel; 316 / 316L and CF3M
  • Nickel Alloy; C-22 and CW2M
  • High Temp Carbon Steel; A105 and WCB
  • Low Temp Carbon Steel; LF2 and LCC
  • Duplex; UNS S32760 and 6A
  • Consult factory for other wetted material
Flange Options
  • ANSI Class 150 to 1500
  • DIN PN 10 to PN 160
  • JIS 10K to 40K
  • Flanges are available in a variety of facings
  • Consult factory for additional flange ratings
Operating Temperatures -330°F to 800°F (-200°C to 427°C)
Line Size 1" - 14" (25 - 350 mm)
