Rosemount M-8732E Transmitter and 8711040 Sensor | Rosemount 8711 Wafer Magnetic Flow Meter $3,500.00

Rosemount M-8732E Transmitter and 8711020 Sensor | Rosemount 8711 Wafer Magnetic Flow Meter

$3,000.00

Rosemount 8711 Wafer Magnetic Flow Meter Consisting of 8711020 Sensor and M-8732E Transmitter

Brand:Rosemount
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description

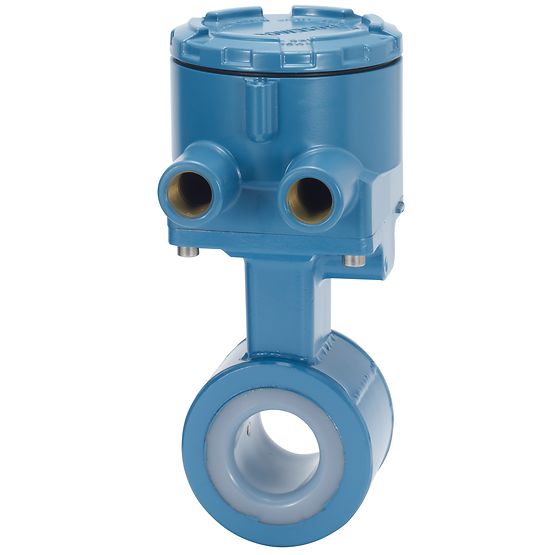

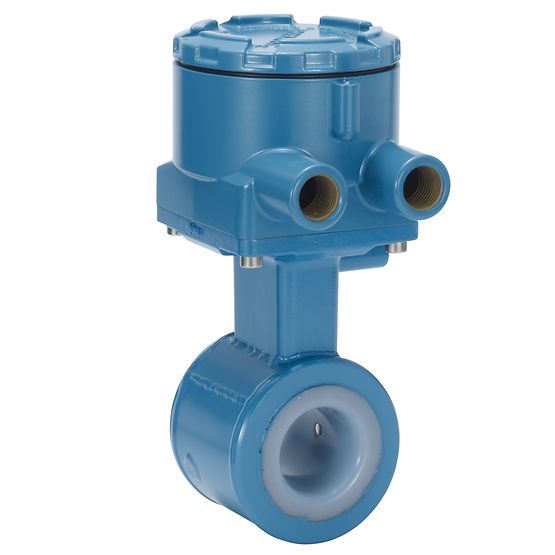

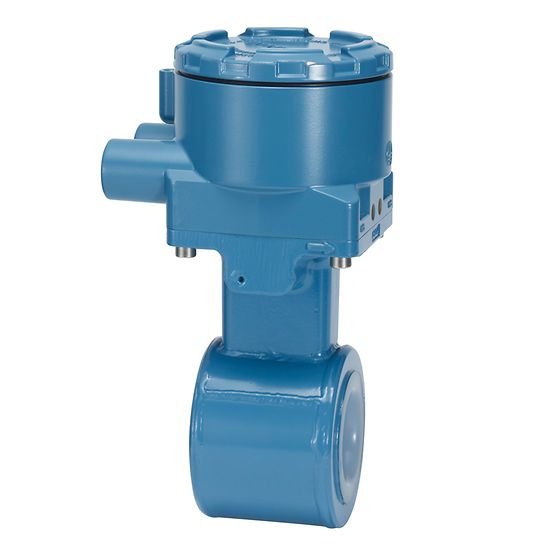

Rosemount 8711020 Wafer Magnetic Flow Meter Sensor, 2 Inch (DN50)
Accuracy Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown
Line Sizes 0.15-8 inch (4-200mm)
Liner Materials ETFE, PTFE, and PFA
Electrode Materials 316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium. Consult factory for additional material options

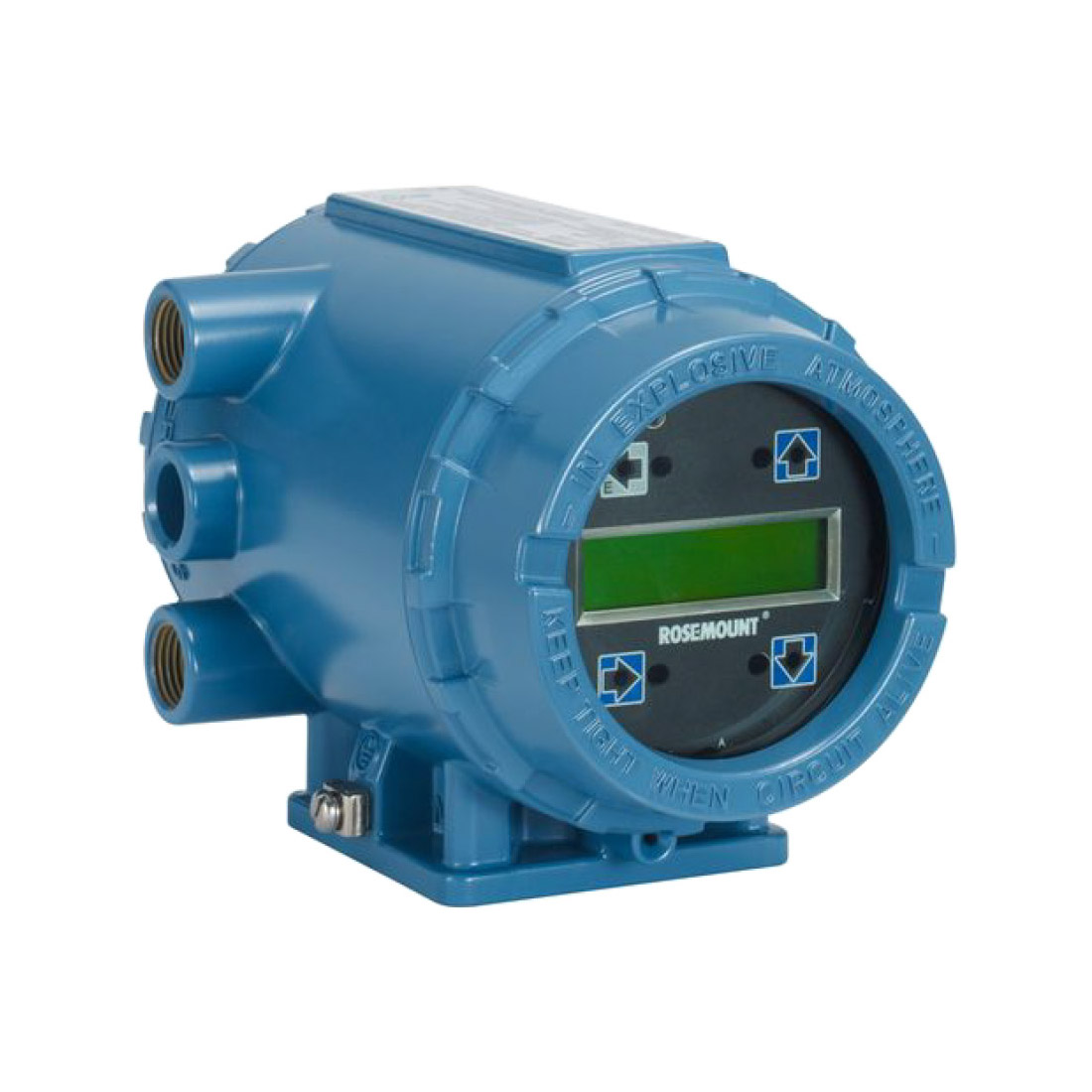

Rosemount 8732E Field Mount Magnetic Flow Meter Transmitters
Sensor compatibility Compatible with Rosemount 8705, 8711, and 8721 sensors. Compatible with AC and DC powered sensors of other manufacturers.
Transmitter coil drive current 500mA
Flow rate range Capable of processing signals from fluids that are traveling between 0.04 and 39 ft/s (0.01 to 12 m/s) for both forward and reverse flow in all sensor sizes. Full scale continuously adjustable between –39 and 39 ft/s (–12 to 12 m/s).
Conductivity limits Process liquid must have a conductivity of 5 microSiemens/cm (5 micromhos/cm) or greater.
Power supply 90 – 250VAC, 50/60Hz or 12 – 42VDC
Line power fuses:
90-250VAC systems:
1A, 250V, I2t, 1.5 A2s Rating, Fast Acting. Bussman AGC-1, Littlefuse 31201.5HXP
12-42VDC systems:
3 Amp, 250V, I2t, 14 A2s Rating, Fast Acting. Bel Fuse 3AG 3-R, Littelfuse 312003P, Schurter 0034.5135
Line power fuses: 15W maximum – DC, 40VA maximum – AC
Switch-on current:
AC: Maximum 35.7A (< 5ms) at 250VAC
DC: Maximum 42A (< 5ms) at 42VDC



Features



Rosemount 8711020 Wafer Magnetic Flow Meter Sensor, 2 Inch (DN50)

  • Cut costs with a flangeless construction for minimum size and weight
  • Compact shape is ideal for installation in locations with limited amount of straight run pipe
  • Suit any process application with available rugged liner options and standard, grounding and bullet-nose electrodes
  • Simplify installation with a lightweight, flangeless design
  • Eliminate gaskets and prevent moisture ingress with an all-welded sensor
  • Minimize maintenance and repair with an obstructionless design featuring no moving parts
  • Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field



Rosemount 8732E Field Mount Magnetic Flow Meter Transmitters

  • Continually monitor meter health and performance without stopping the process with Smart Meter Verification
  • Prevent moisture ingress with dual-compartment transmitter housing
  • Improve process management with advanced Digital Signal Processing
  • Optimize control in noisy applications with High Process Noise diagnostic and Selectable Coil Drive Frequency options
  • Tunable Empty Pipe diagnostic minimizes issues and false readings when the pipe is empty
  • Quickly verify installation integrity with Ground and Wiring Fault Detection diagnostic
  • Simplify adjustments in hazardous environments without removing the cover using optical switches for configuration
  • Universal transmitter capabilities enable reduced inventory and consistent interface for any magnetic flow meter sensor
