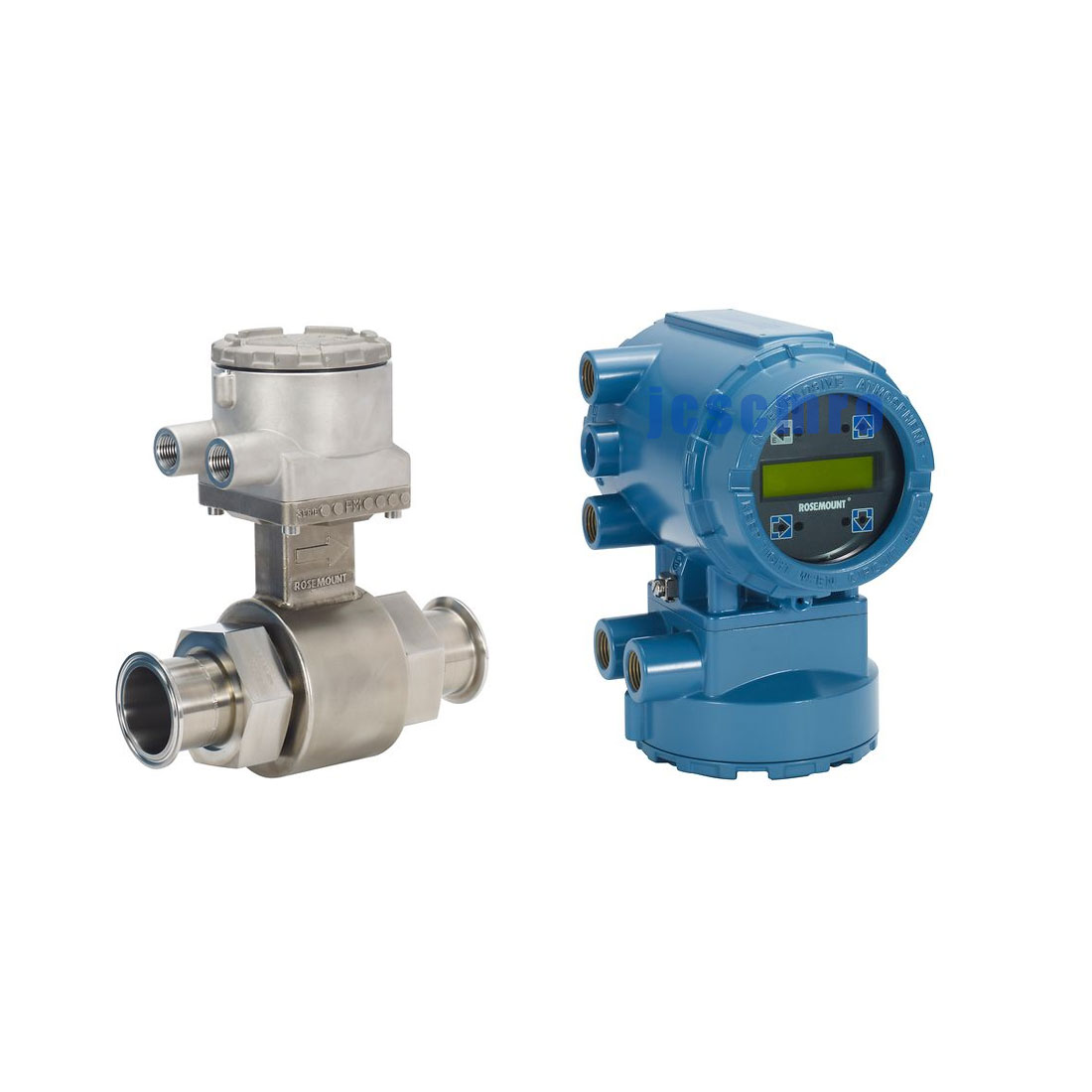

Rosemount 8721 Hygienic Magnetic Flow Meter Consisting of 8721010 Sensor and M-8732E Transmitter

Brand:Rosemount
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description

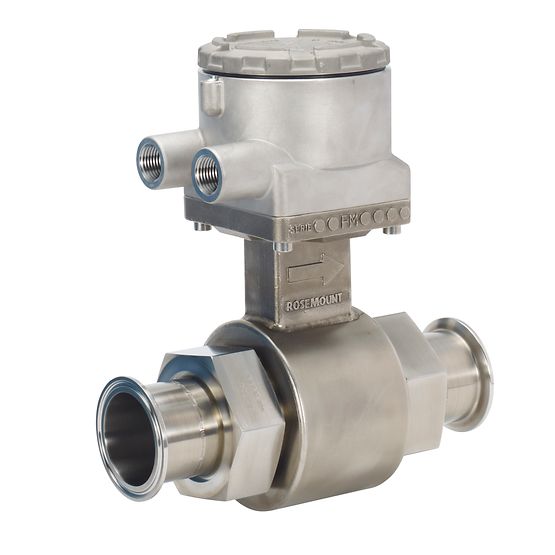

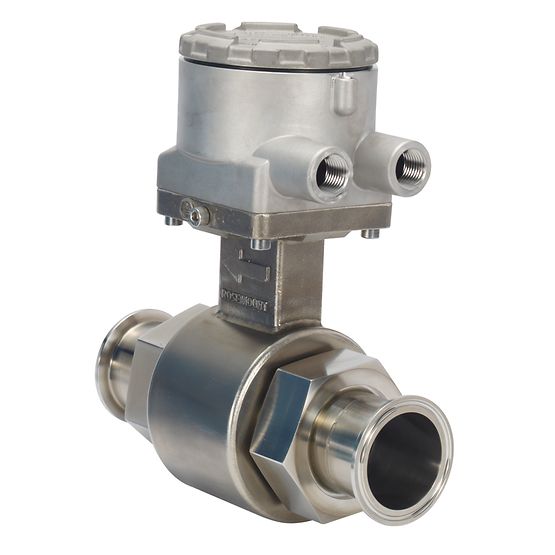

Rosemount 8721010 Hygienic Magnetic Flow Meter Sensor, 1 Inch (DN25)
Accuracy Up to 0.25% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.5% over 40:1 flow turndown
Line Sizes ½-4 inch (15-100 mm)
Liner Materials PFA
Electrode Materials 316L Stainless Steel, Nickel Alloy, Platinum
Process Connections Tri-Clamp® Sanitary Coupling IDF Sanitary Coupling (screw type) Weld Nipple DIN 11851 (Imperial and Metric) DIN 11864 (-1 and -2 Form A) SMS 1145 DEN US 50 Weld Nipple
Product Certifications 3-A, EHEDG Type EL, PMO (M-b-350)
Rosemount 8732E Field Mount Magnetic Flow Meter Transmitters
Sensor compatibility Compatible with Rosemount 8705, 8711, and 8721 sensors. Compatible with AC and DC powered sensors of other manufacturers.
Transmitter coil drive current 500mA
Flow rate range Capable of processing signals from fluids that are traveling between 0.04 and 39 ft/s (0.01 to 12 m/s) for both forward and reverse flow in all sensor sizes. Full scale continuously adjustable between –39 and 39 ft/s (–12 to 12 m/s).
Conductivity limits Process liquid must have a conductivity of 5 microSiemens/cm (5 micromhos/cm) or greater.
Power supply
  • 90 – 250VAC, 50/60Hz or 12 – 42VDC
  • Line power fuses:
    • 90-250VAC systems:
      • 1A, 250V, I2t, 1.5 A2s Rating, Fast Acting. Bussman AGC-1, Littlefuse 31201.5HXP
    • 12-42VDC systems:
      • 3 Amp, 250V, I2t, 14 A2s Rating, Fast Acting. Bel Fuse 3AG 3-R, Littelfuse 312003P, Schurter 0034.5135
  • Line power fuses: 15W maximum – DC, 40VA maximum – AC
  • Switch-on current:
    • AC: Maximum 35.7A (< 5ms) at 250VAC
    • DC: Maximum 42A (< 5ms) at 42VDC
Features

Rosemount 8721010 Hygienic Magnetic Flow Meter Sensor, 1 Inch (DN25)

  • Lightweight, compact stainless steel design makes installation easy
  • Rely on FDA-approved materials including 3-A finish certified by EHEDG for use in Grade A milk
  • Fully-welded meter body design allow for safety in hygienic applications
  • Sensor is CIP/SIP cleanable and the sensor I.D. matches the process piping to eliminate hard-to-clean step changes
  • Satisfy virtually any requirement with a variety of available sanitary process connections
  • Better facilitate inspection and maintenance with easily accessed process gaskets
  • Cut costs and improve efficiency with an obstructionless design featuring no moving parts to maintain or repair



Rosemount 8732E Field Mount Magnetic Flow Meter Transmitters

  • Continually monitor meter health and performance without stopping the process with Smart Meter Verification
  • Prevent moisture ingress with dual-compartment transmitter housing
  • Improve process management with advanced Digital Signal Processing
  • Optimize control in noisy applications with High Process Noise diagnostic and Selectable Coil Drive Frequency options
  • Tunable Empty Pipe diagnostic minimizes issues and false readings when the pipe is empty
  • Quickly verify installation integrity with Ground and Wiring Fault Detection diagnostic
  • Simplify adjustments in hazardous environments without removing the cover using optical switches for configuration
  • Universal transmitter capabilities enable reduced inventory and consistent interface for any magnetic flow meter sensor
