Part Number: STD720-A1HC4AS-1-C-BDD-11C-B-10A7-00-0000

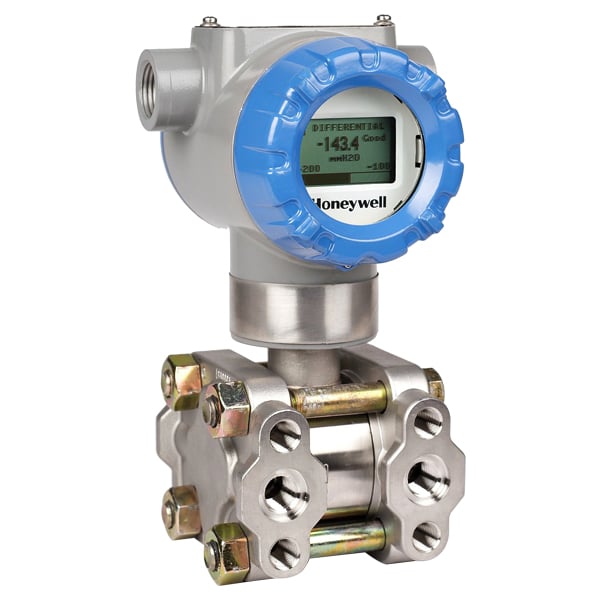

Model: STD700 Differential Pressure Transmitter
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STD720 | Differential Pressure Transmitter |
| Process Wetted Heads & Diaphragm Materials | A | Process Head Material: Plated Carbon Steel
Diaphragm Material: 316L Stainless Steel |
| Fill Fluid | 1 | Silicone Oil 200 |
| Process Connection | H | 1/2\’ NPT female Materials to Match Head & Head Bolt Materials Selections(1) |
| Bolt/Materials | C | Carbon Steel |
| Vent/Drain Type/Location | 4 | Head Type: Dual Ended Vent Type: Standard Vent Location: End Vent Material: Matches Head Material(1) |
| Gasket Material | A | Teflon® or PTFE (Glass Filled) |
| Static Pressure | S | Standard Static Pressure – 4500 psig (315 bar) |
| Head/Connect Orientation | 1 | Standard, High Side Left, Low Side Right(2) / Std Head Orientation |
| Approvals | C | ATEX Explosion proof, Intrinsically Safe & Non-incendive |
| Electronic Housing Material & Connection Type | B | Material: Polyester Powder Coated Aluminum Connection: M20 Lighting Protection: None |
| Output/Protocol | D | Analog Output: 4-20mA dc Digital Protocol: DE Protocol |
| Customer Interface Selections | D | Indicator: Standard (w/internal Zero, Span & Conf Buttons) Ext Zero, Span & Config Buttons: None |
| Application Software | 1 | Diagnostics: Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High> 21.0mAdc High & Low Output Limits:(2) Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | C | Custom Configuration (Unit Data Required from customer) |
| Accuracy and Calibration | B | Accuracy: Standard Calibrated Range: Custom (Unit Data Required) Calibration Qty: Single Calibration |
| Mounting Bracket | 1 | Bracket Type: Angle Bracket Material: Carbon Steel |
| Customer Tag | 0 | No customer tag |
| Unassembled Conduit Plugs & Adapters | A7 | M20 316 SS Certified Conduit Plug |
| Certifications & Warranty | 00 | None – No additional options |
| Factory | 0000 | Factory Identification |
- Except Carbon Steel Heads shall use 316SS Vent/Drain, Plugs & Adapters when required
- Left side/Right side as viewed from the customer connection perspective
- Estimated Lead Time: 12 Weeks
- Shipping Weight: 6 Kg
